Entertainment Systems: Testing and Inspection

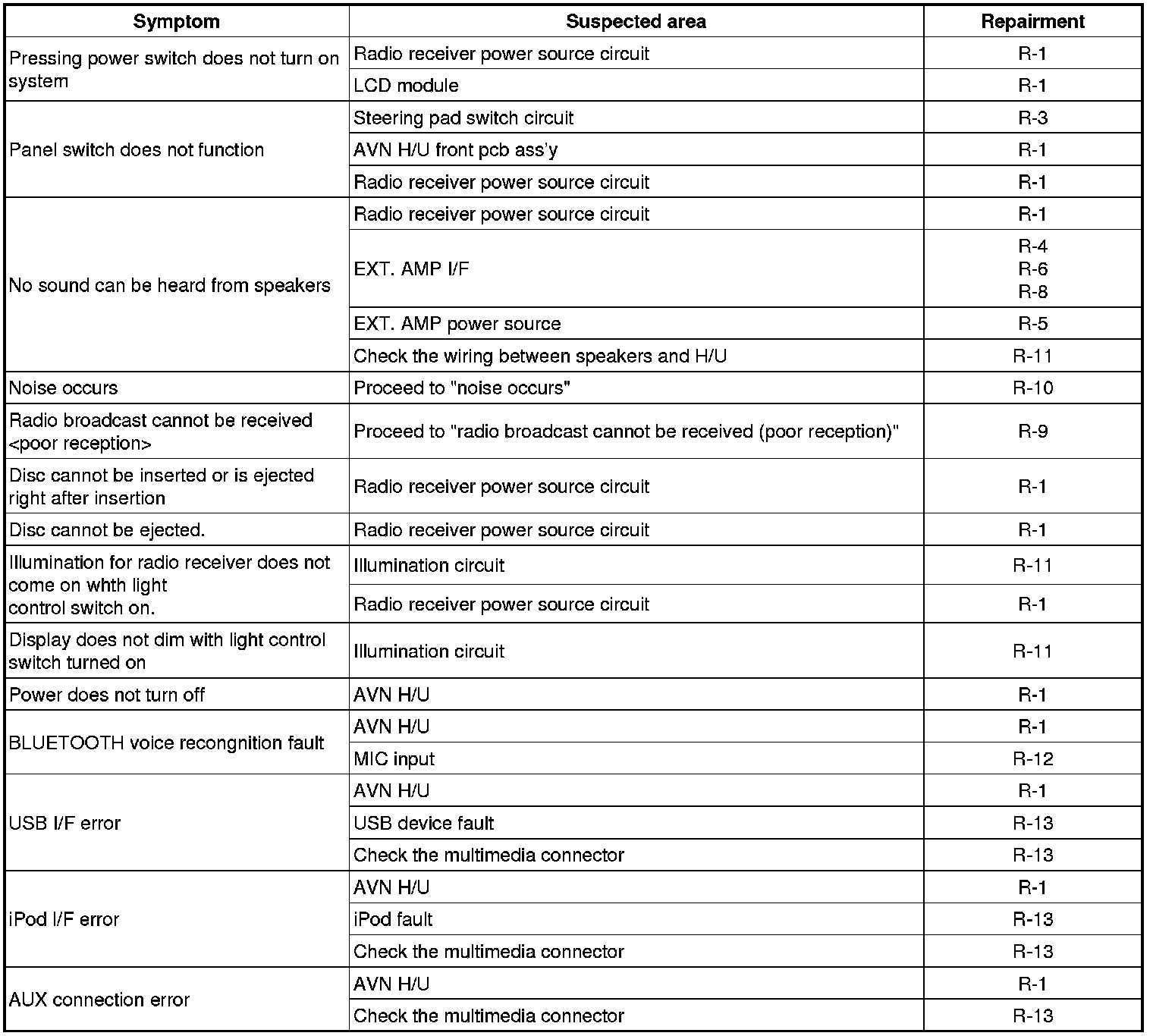

Troubleshooting
R-1 : Replace the AVN head unit
1. Check the same problems after replaceing the AVN head unit

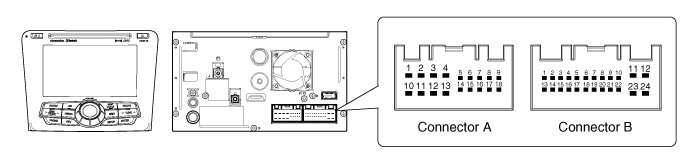

R-2 : Check the power connection of AVN head unit.
1. Remove the AVN head unit.
2. Check the specified condition of terminal.
R-3 : Check the steering wheel remote control
1. Check the steering wheel remote control connector specification
R-4 : Replace the external amplifier
1. Check the same problems after replaceing the external amplifier

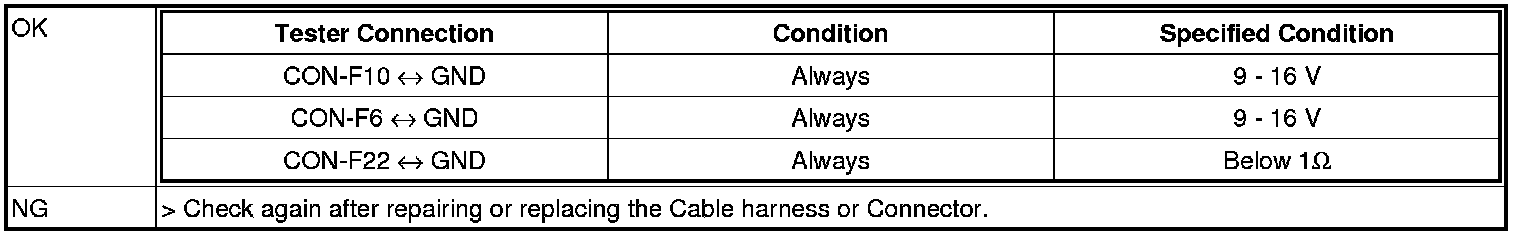

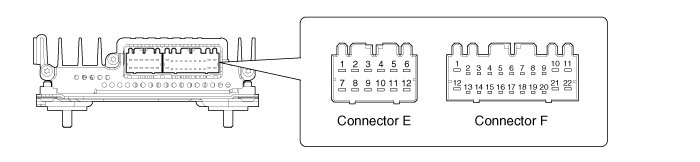

R-5 : Check the external amplifier power cable
1. Remove the external amplifier
2. Check the specified condition of terminal.
R-6 : Check the external amplifier CAN interface
1. Remove the AVN head Unit.
2. Remove the external amplifier

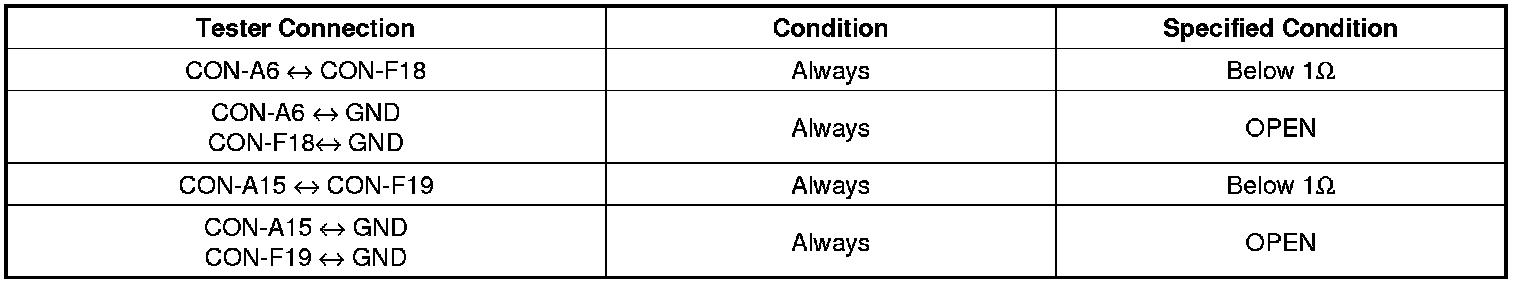

3. Check the specified condition of terminal.
R-7 : Check the external amplifier S/PDIF connection
1. Remove the audio head unit.
2. Remove the external amplifier
3. Check the specified condition of terminal.
R-8 : Check the wiring harness and connector
1. Remove the AVN head unit
2. Remove the external amplifier
R-9 : Radio Broadcast cannot be Received (Bad reception)
1. Check the radio broadcast reception after replacing the AVN head unit
2. Check the antenna jack
3. Check the antenna amp input voltage
4. Check the feeder cable connection
5. Check again the radio broadcast reception after replacing the external amplifier
6. Check and repair the glass antenna.
R-10 : Check that speakers are installed tightly.

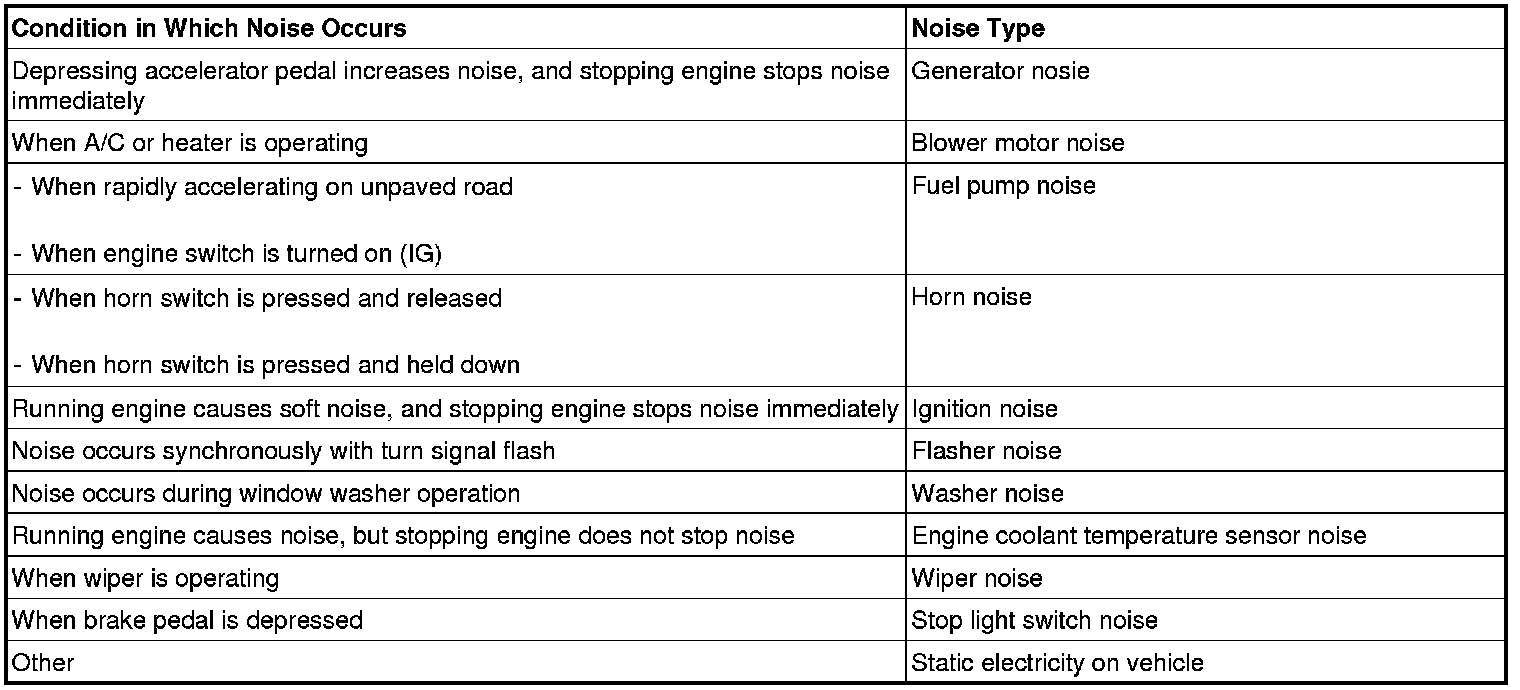

1. Noise source description
2. Repair or replace the noise source
R-11 : Check again after replacing the AVN head unit
1. Check the input signal of Illumination (+)
2. Check the illumination (-) input signal using the oscilloscope
3. Check the vehicle illumination control unit.

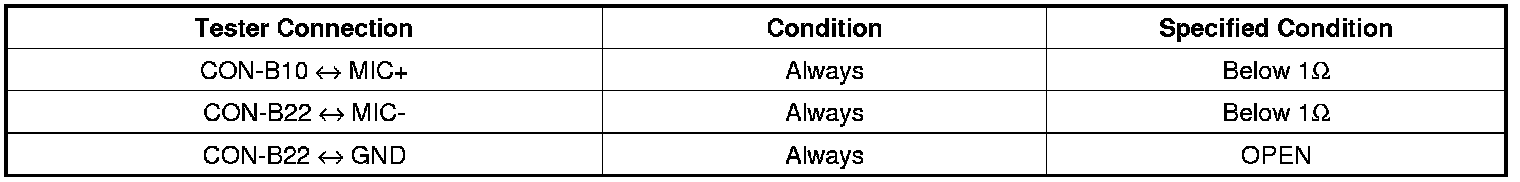

R-12 : Check the mic input condition.
1. Test again after replacing the B/T mic
R-13 : Test after replacing the AVN head unit

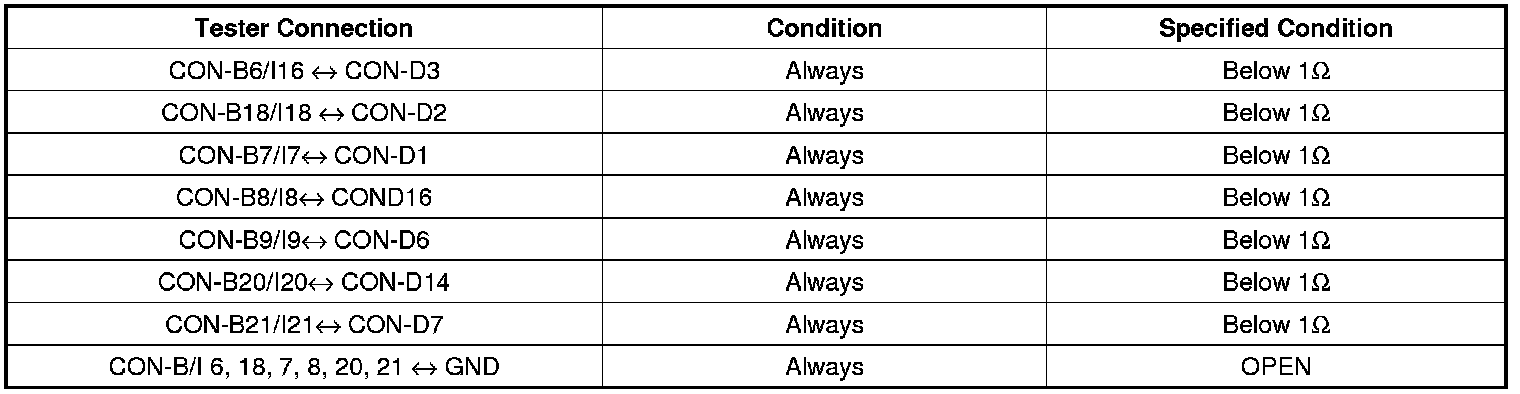

1. Test after replacing the multimedia jack.

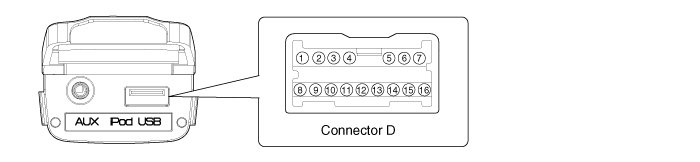

2. Check the multimedia jack connector.
3. Check again after replacing the external input device with another one.
