Front Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

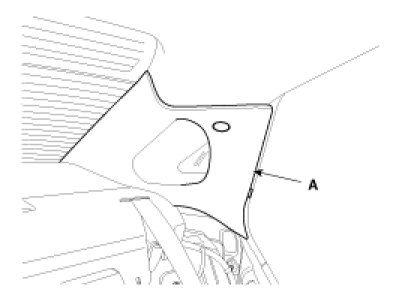

1. Remove the front pillar trim (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Center Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front door scuff trim and rear door scuff trim.
2. Using a screwdriver or remover, remove the seat belt lower anchor (A).




3. Remove the center pillar lower trim (A).

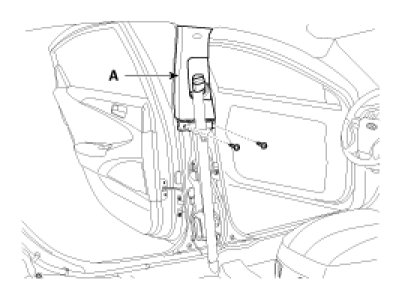

4. After loosening the mounting screws, then remove the center pillar upper trim (A).




5. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Rear Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

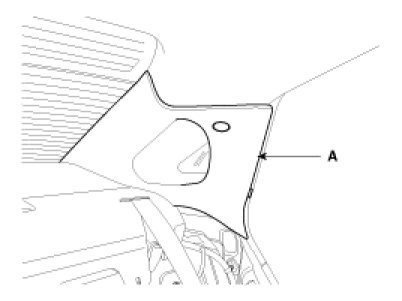

1. Remove the rear pillar trim (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Door Scuff Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the door scuff trim (A).
[Front]




[Rear]




2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Cowl Side Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front door scuff trim.
2. Remove the hood latch release handle.

3. Detach the clip, then remove the cowl side trim (A).




4. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Package Tray Trim Replacement
1. Remove the rear seat assembly.

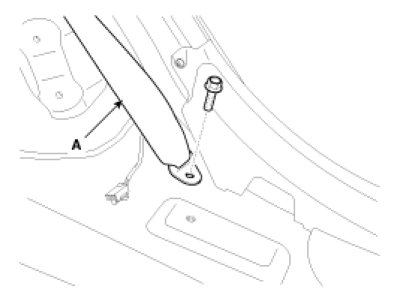

2. After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).
[LH,RH]

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)




[Center]

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)




3. Remove the rear pillar trim (A).

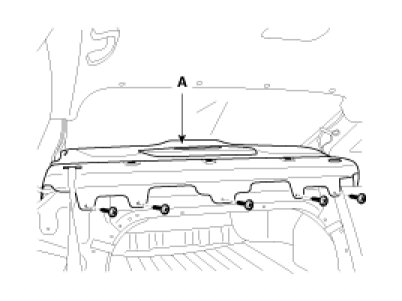

4. After loosening the mounting screws, then remove the package tray trim (A).




5. Installation is the reverse of removal.
