Repair Procedures

Replacement

Outside Rear View Mirror Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

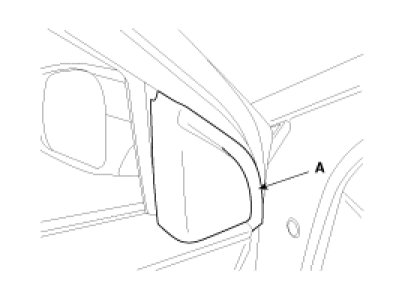

1. Using a screwdriver, remove the quadrant inner cover (A).

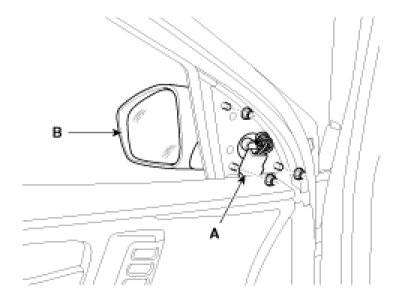

2. After disconnecting the connector (A), remove the outside rear view mirror (B).

Tightening torque :
6.9 - 10.8 N.m(0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)




3. Installation is the reverse of removal.

Inside Rear View Mirror Assembly Replacement
ECM Mirror Replacement
1. After remove the ECM mirror cover (A) then disconnect the connector (B).




2. Loosening the mounting screw (A).




3. Push the ECM mirror base up to remove the ECM mirror assembly (A).




4. Installation is the reverse of removal.
