System Specifications

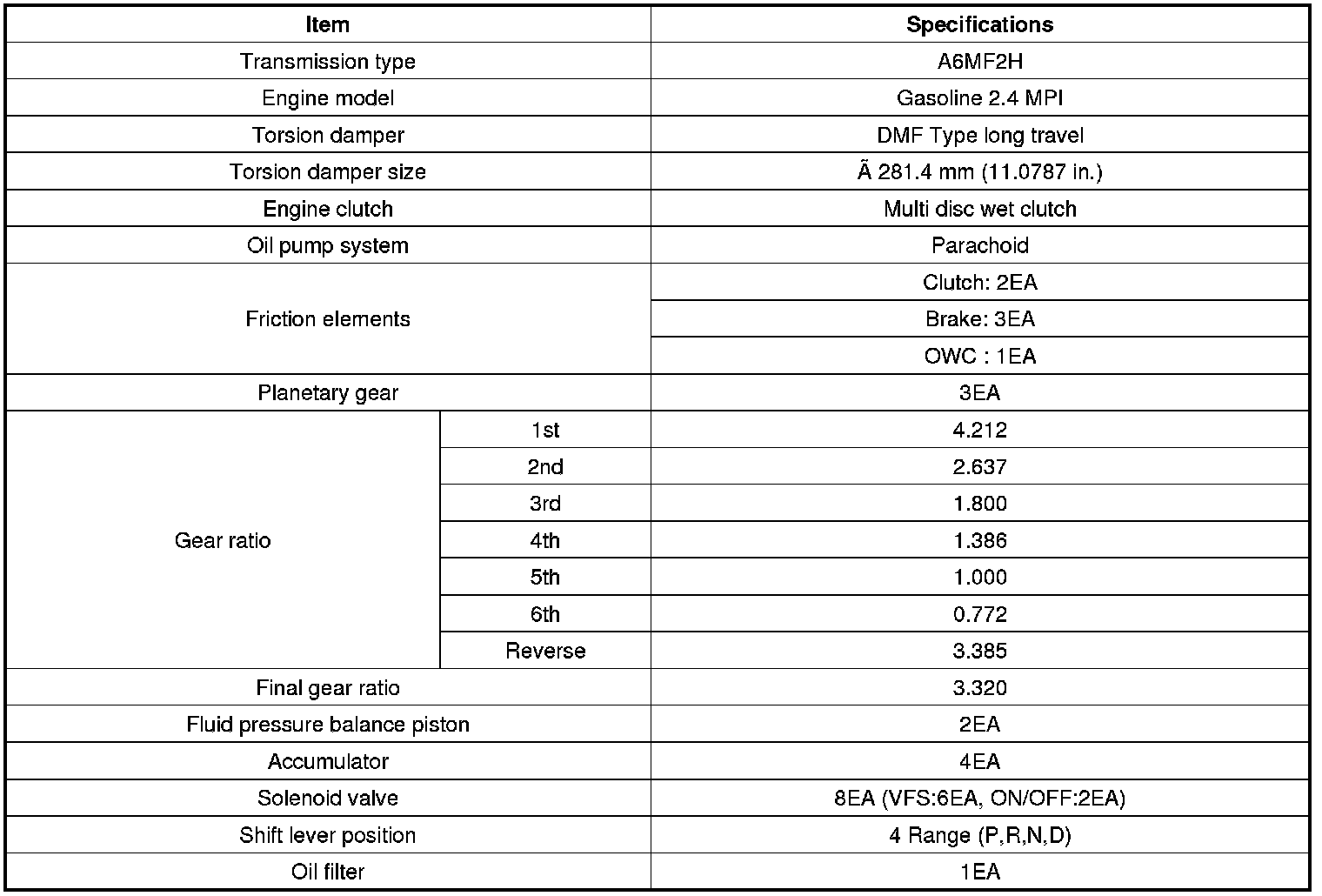

Specifications

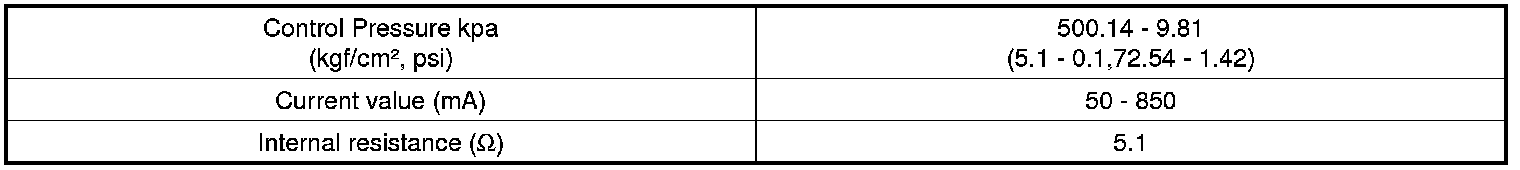

VFS: Variable Force Solenoid
Sensors
Input Speed Sensor
Type: Hall effect sensor

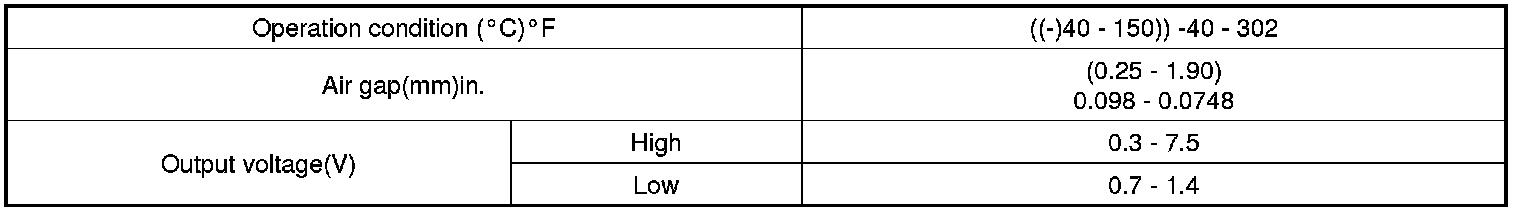

Specifications






Output Speed Sensor
Type: Hall effect sensor
Specifications






Oil Temperature Sensor
Type: Negative thermal coefficient type

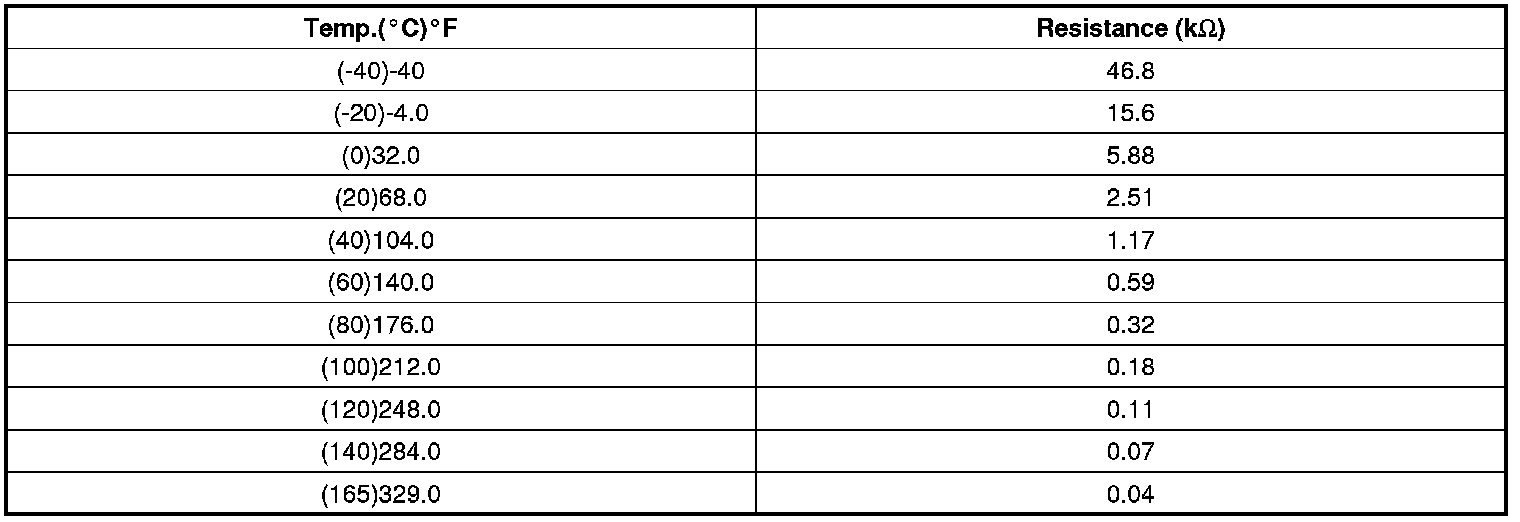

Specifications






Inhibitor Switch
Type: Combination of output signals from 4 terminals
Specifications






Electric Oil Pump (EOP)
Specifications






Oil Pump Unit (OPU)
Specifications






Solenoid Valves
Direct control VFS [26/B, E/C]
Control type : Normal low type






Direct control VFS [UD/B, OD/C, 35R/C]
Control Type : Normal high type

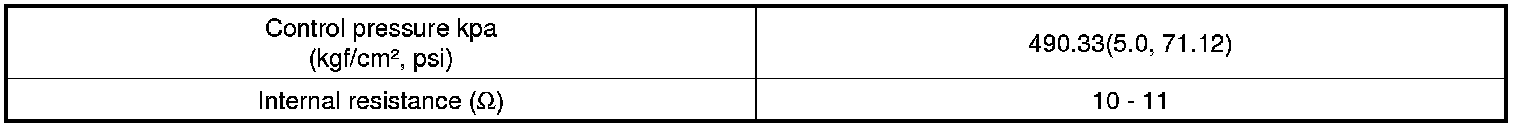

Line Pressure Control VFS
Control type : Normal high type






ON/OFF Solenoid Valve (SS-A, SS-B)
Control type : Normal low type

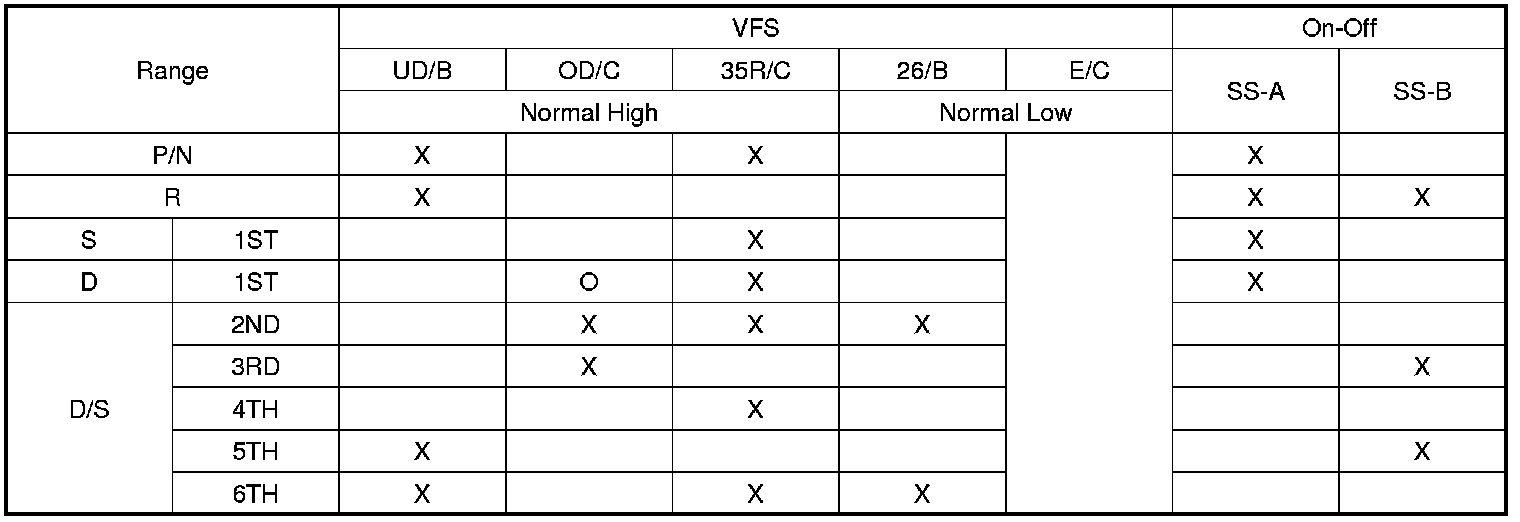

Solenoid Valve Operation Table





Failsafe of solenoid valve failure: 4th gear hold.

NOTE:
X : Solenoid is energized.
O : ON (8 kph [up]), OFF (6 kph [down])
ON/OFF(SS-A) : ON/OFF Solenoid Valve(Shift Solenoid-A)
ON/OFF(SS-B) : ON/OFF Solenoid Valve(Shift Solenoid-B)
UD/B : Underdrive Brake Control Solenoid Valve
OD/C : Overdrive Clutch Control Solenoid Valve
35R/C : 35R Clutch Control Solenoid Valve
26/B : 26 Brake Control Solenoid Valve
E/C : Engine Clutch Control Solenoid Valve
VFS : Variable Force Solenoid

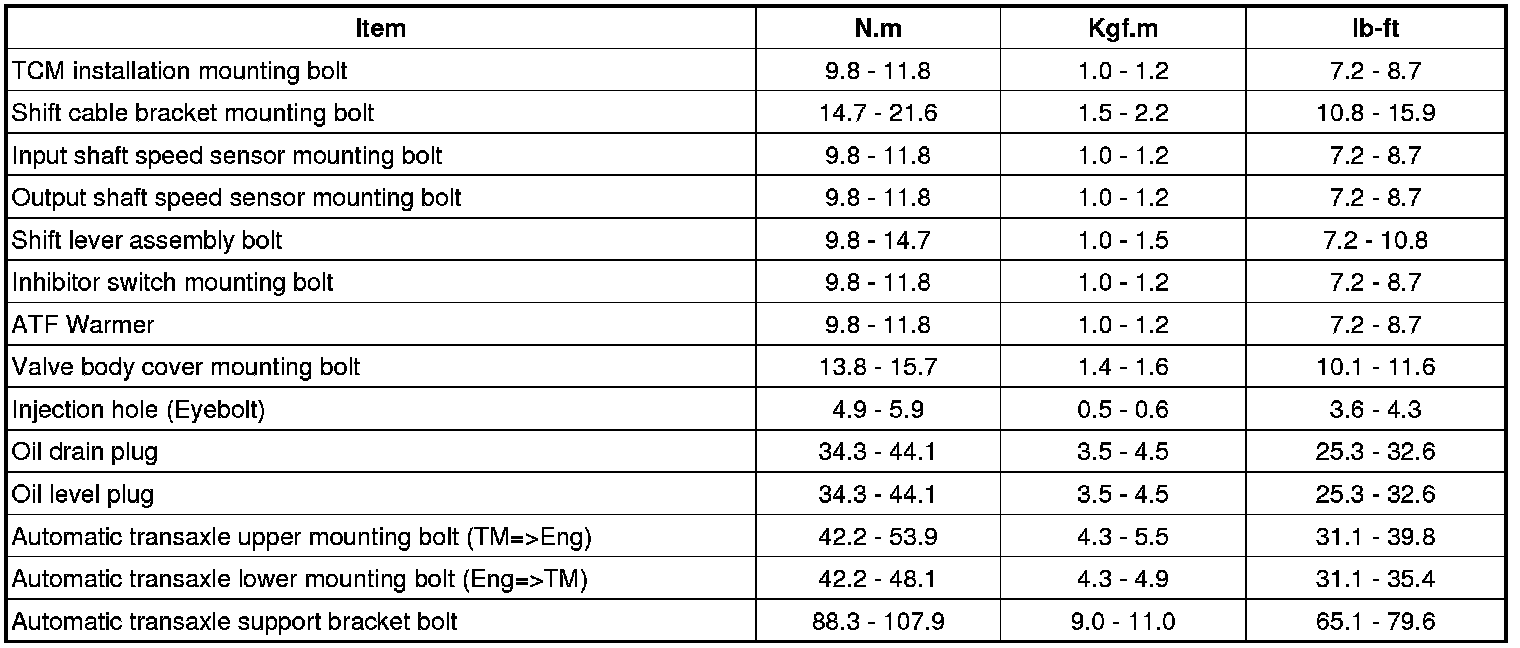

Tightening Torques






Lubricants

Fluid

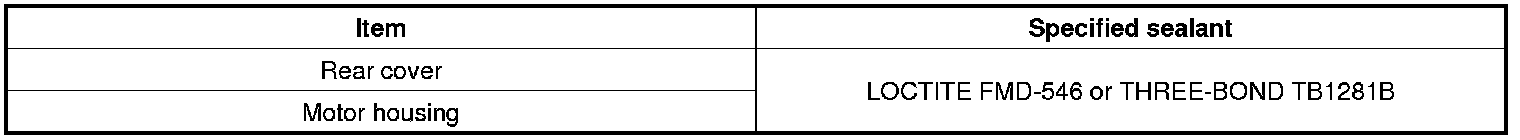

Sealant
