Trouble Diagnosis

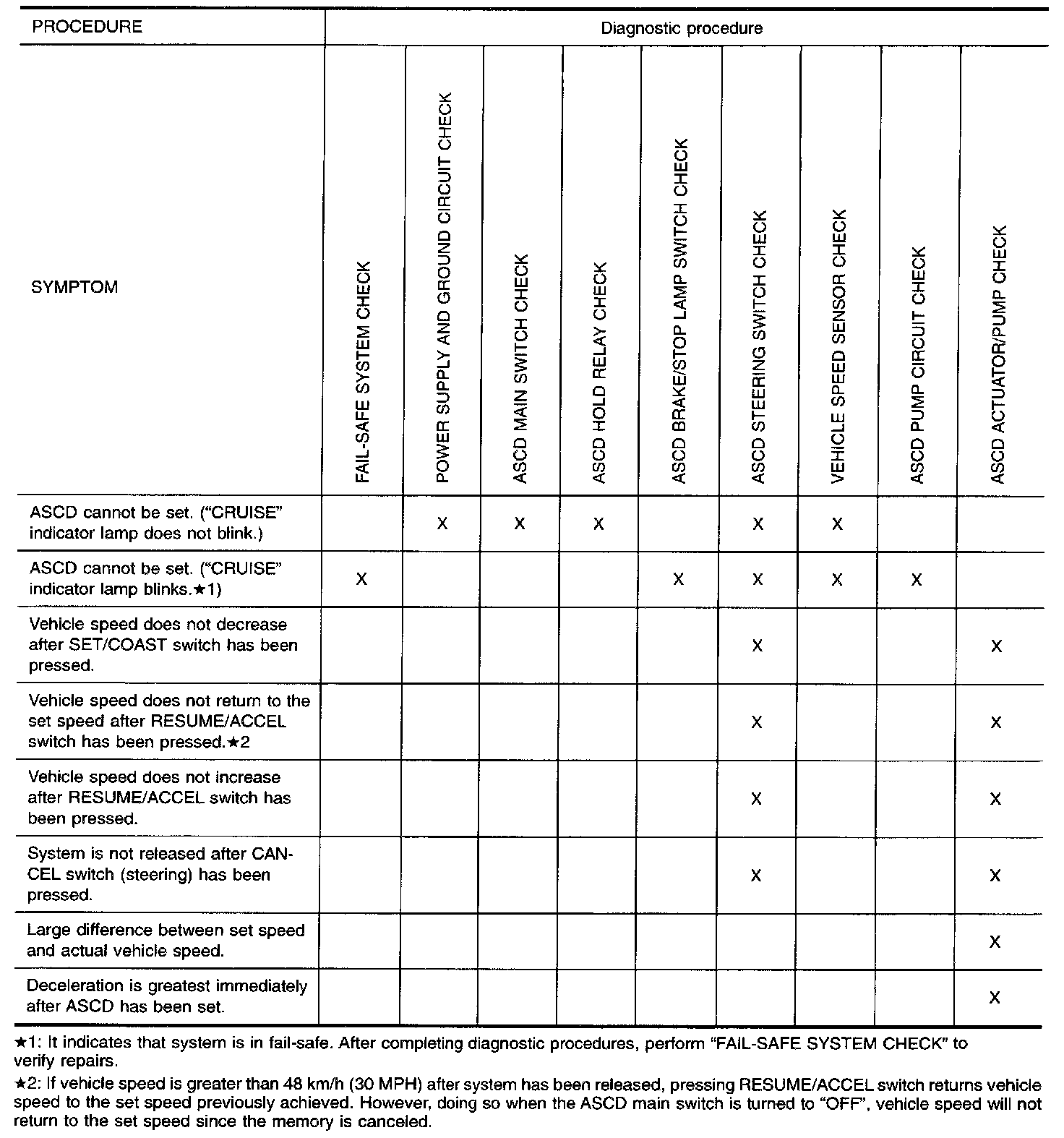

SYMPTOM CHART

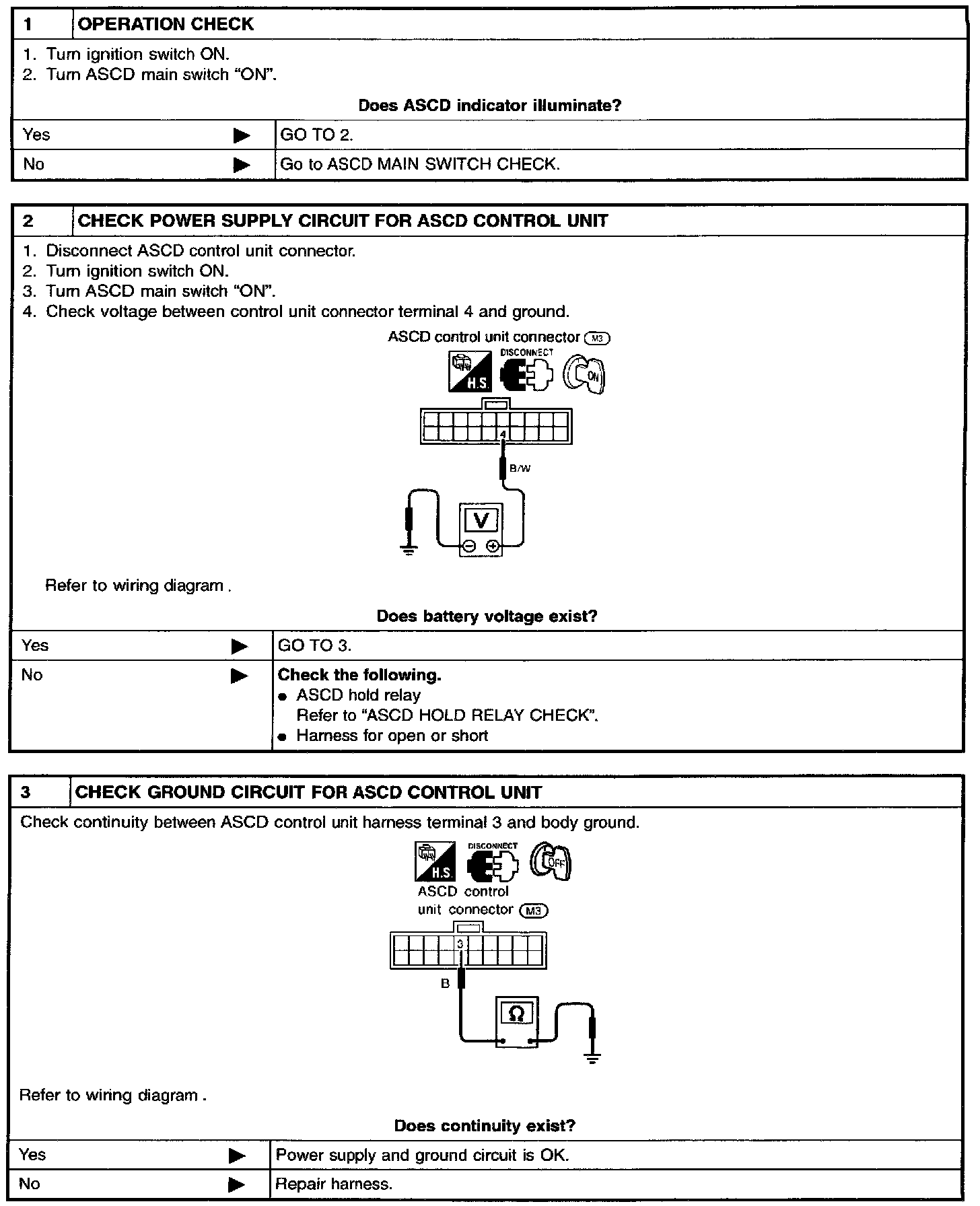

POWER SUPPLY AND GROUND CIRCUIT CHECK

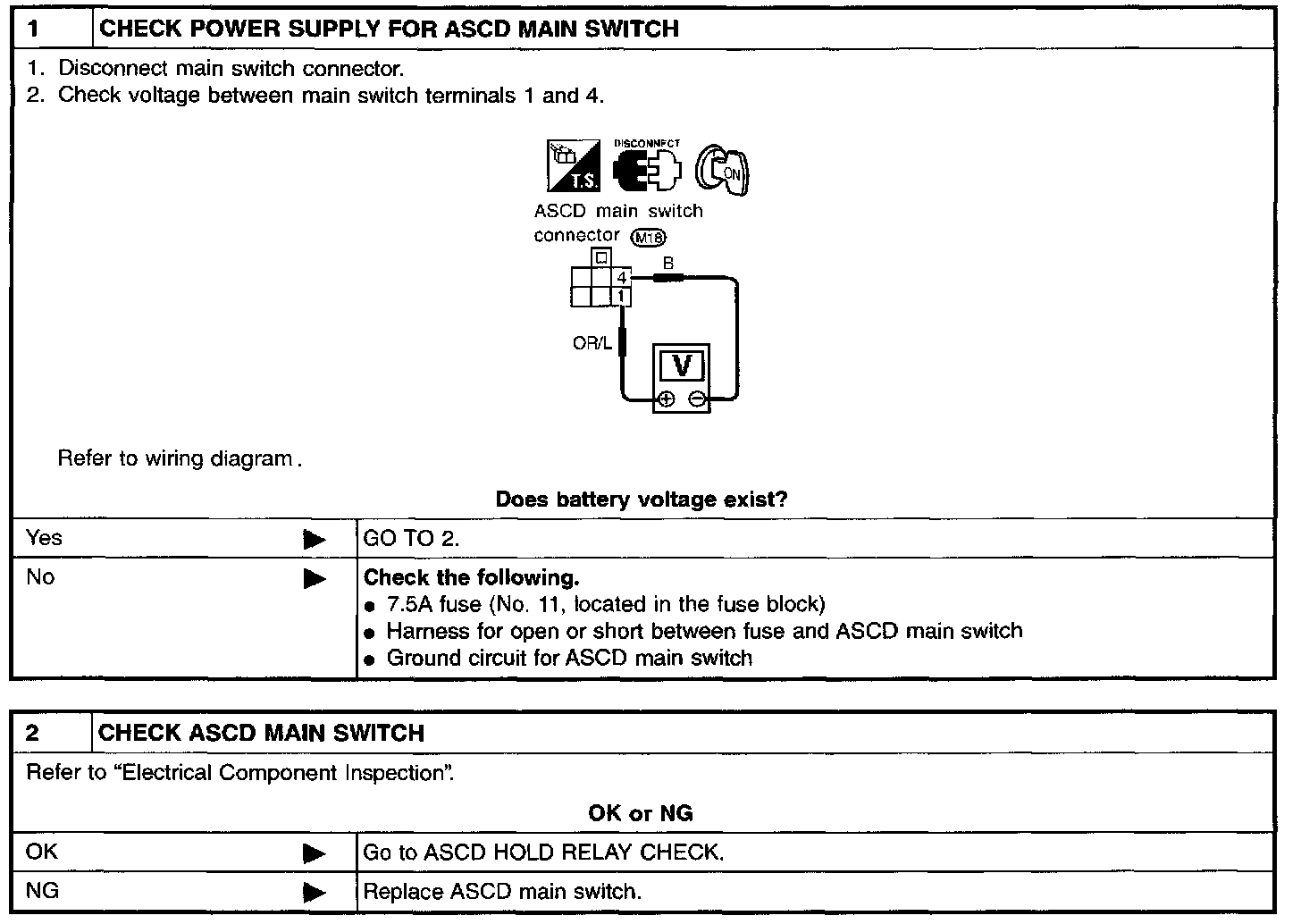

ASCD MAIN SWITCH CHECK

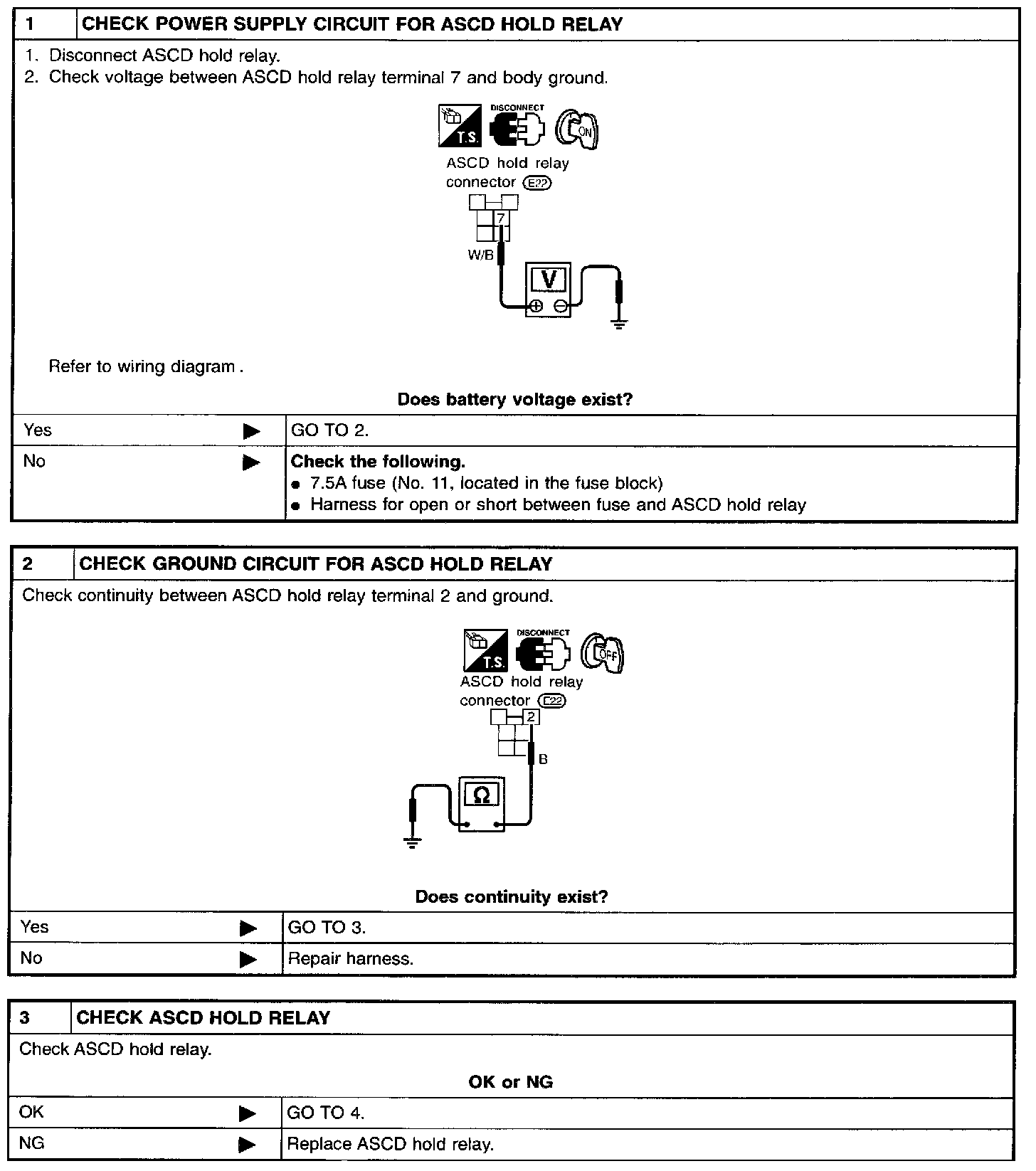

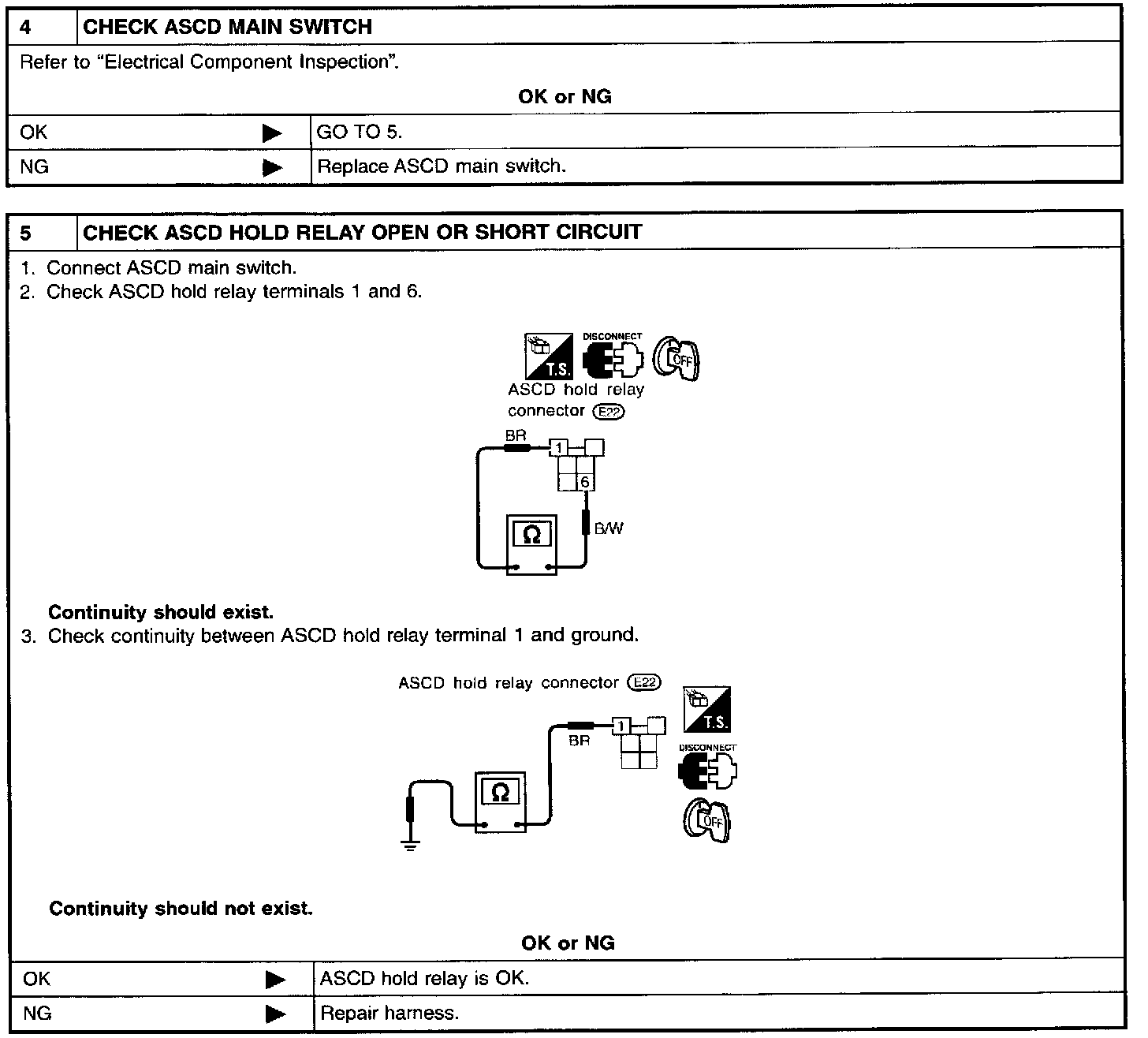

ASCD HOLD RELAY CHECK

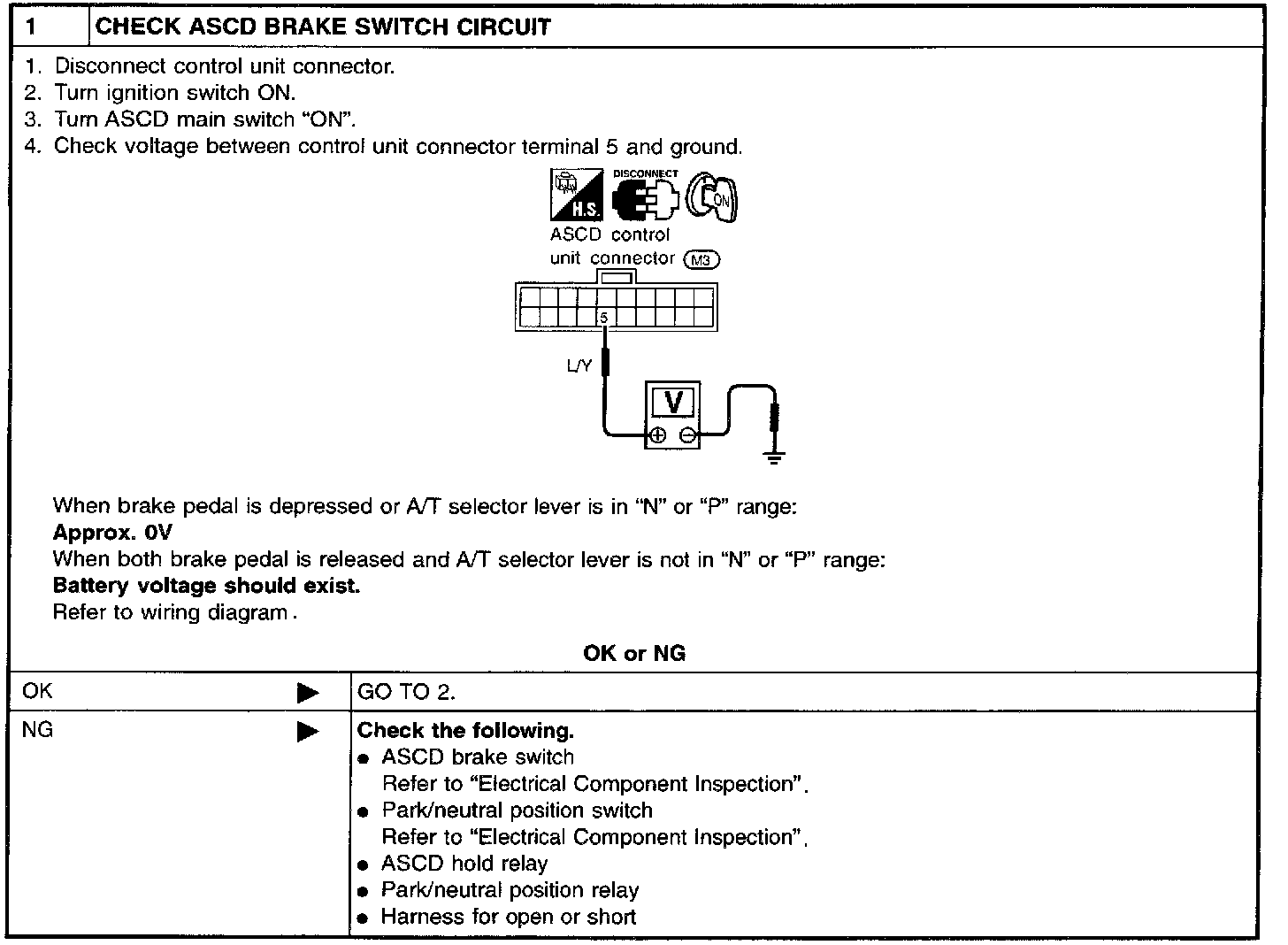

ASCD BRAKE/STOP LAMP SWITCH CHECK

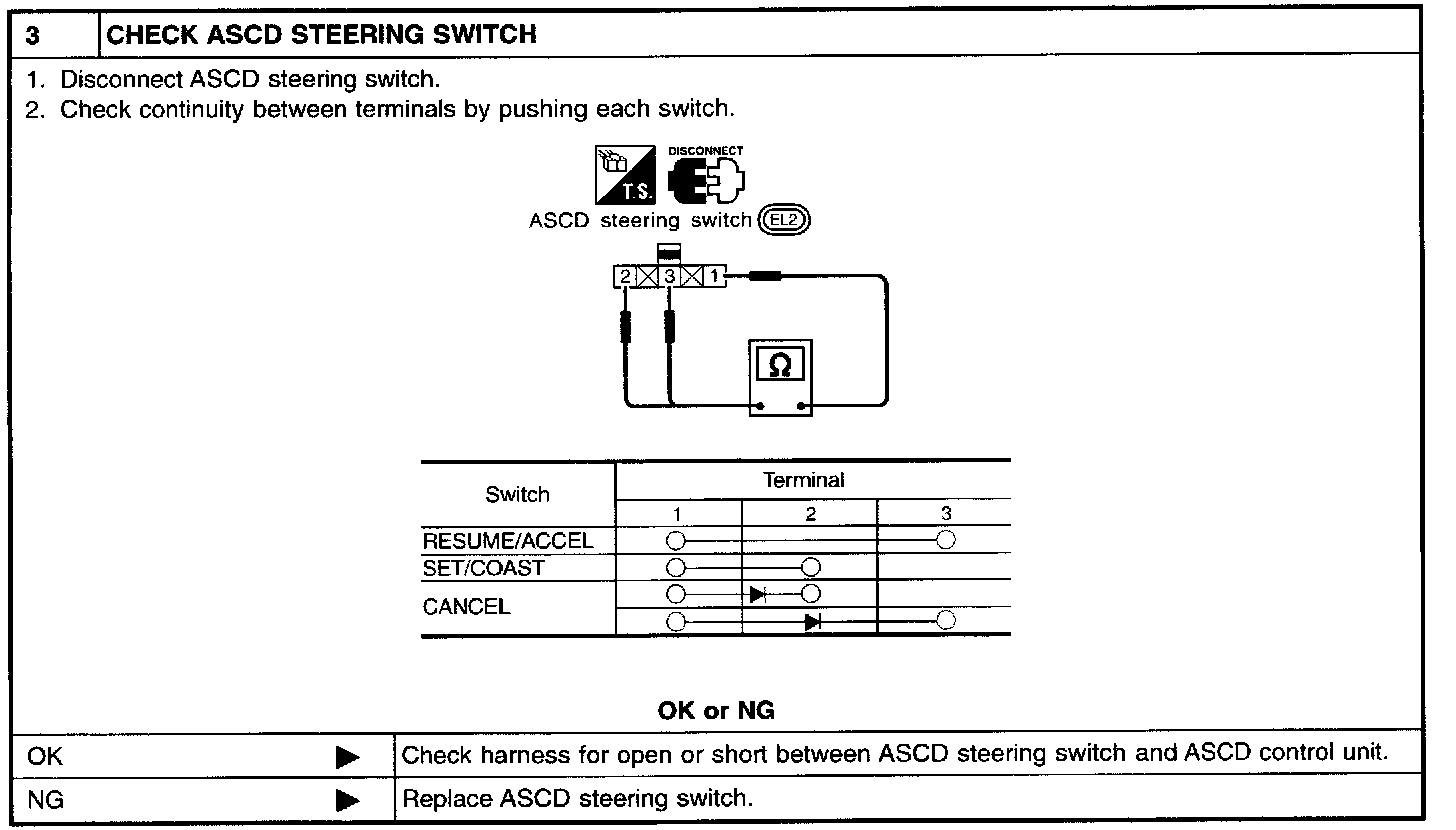

ASCD STEERING SWITCH CHECK

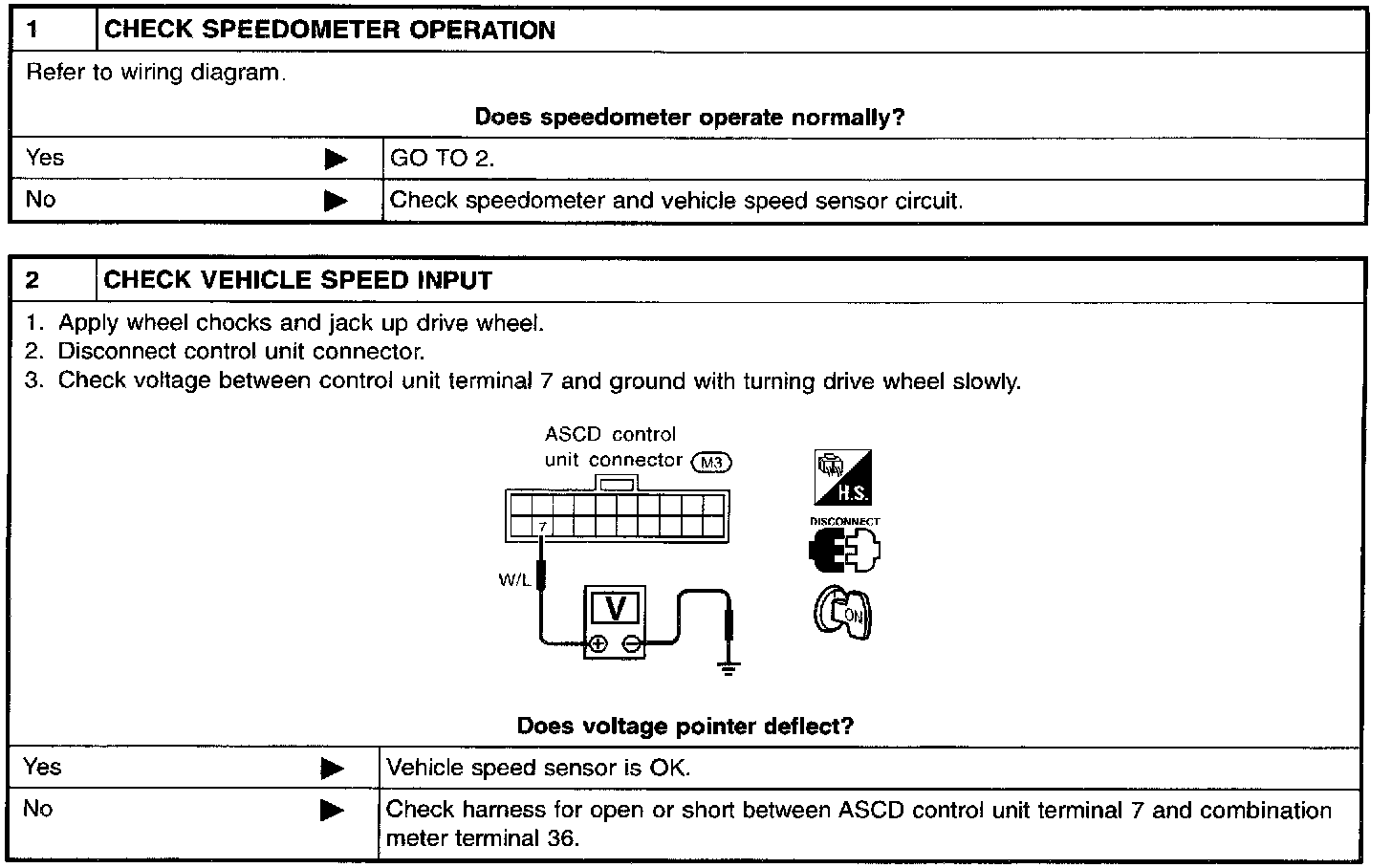

VEHICLE SPEED SENSOR CHECK

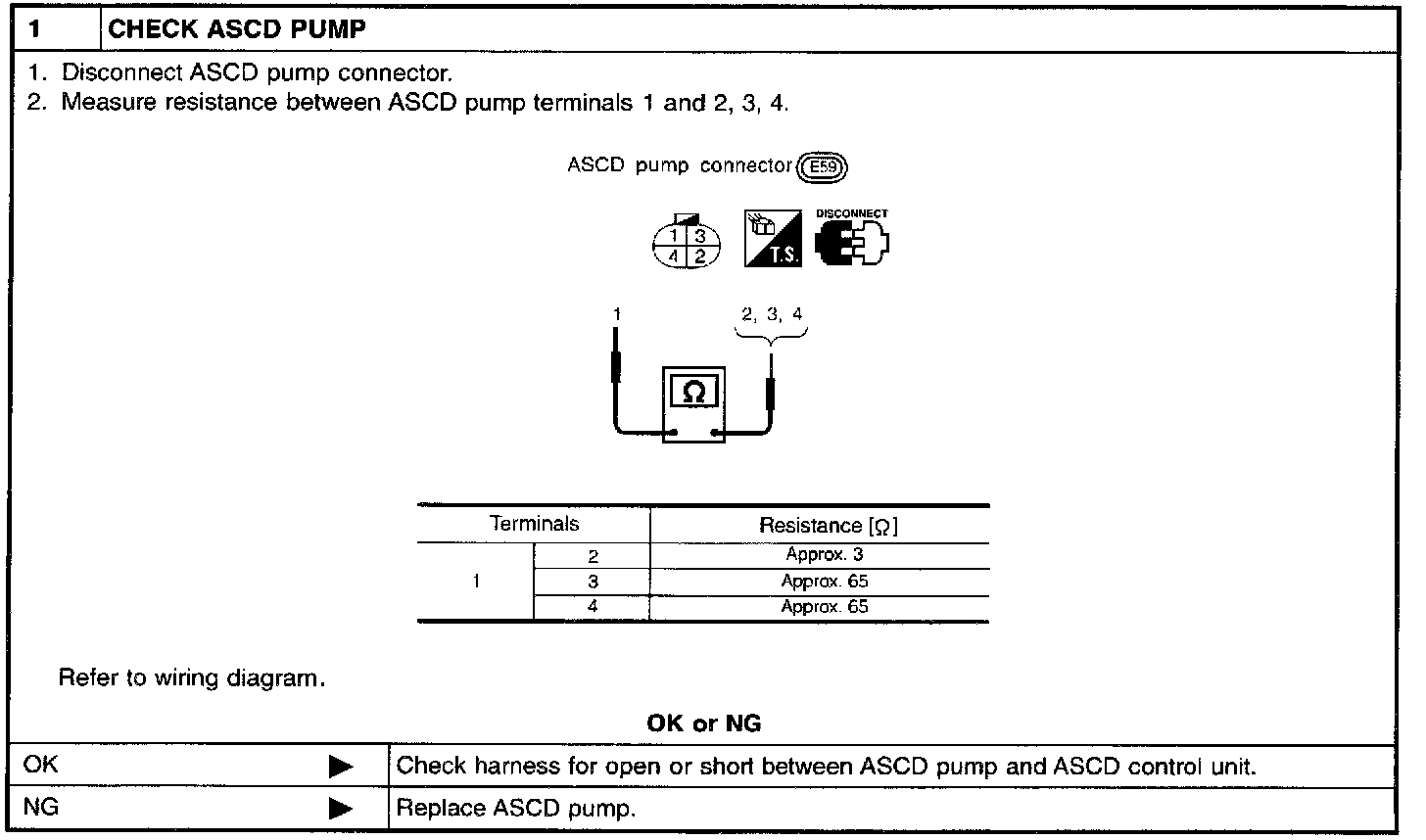

ASCD PUMP CIRCUIT CHECK

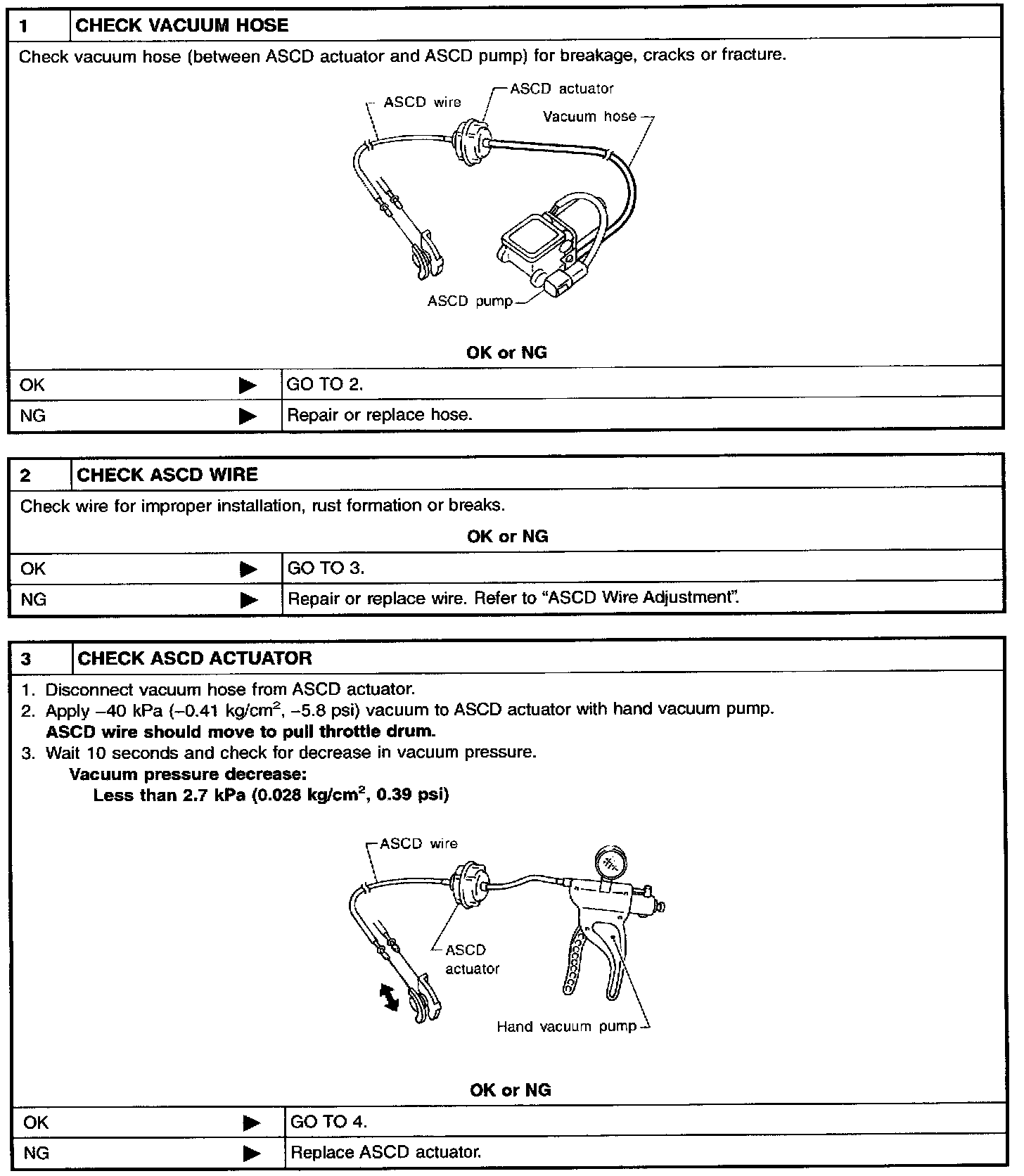

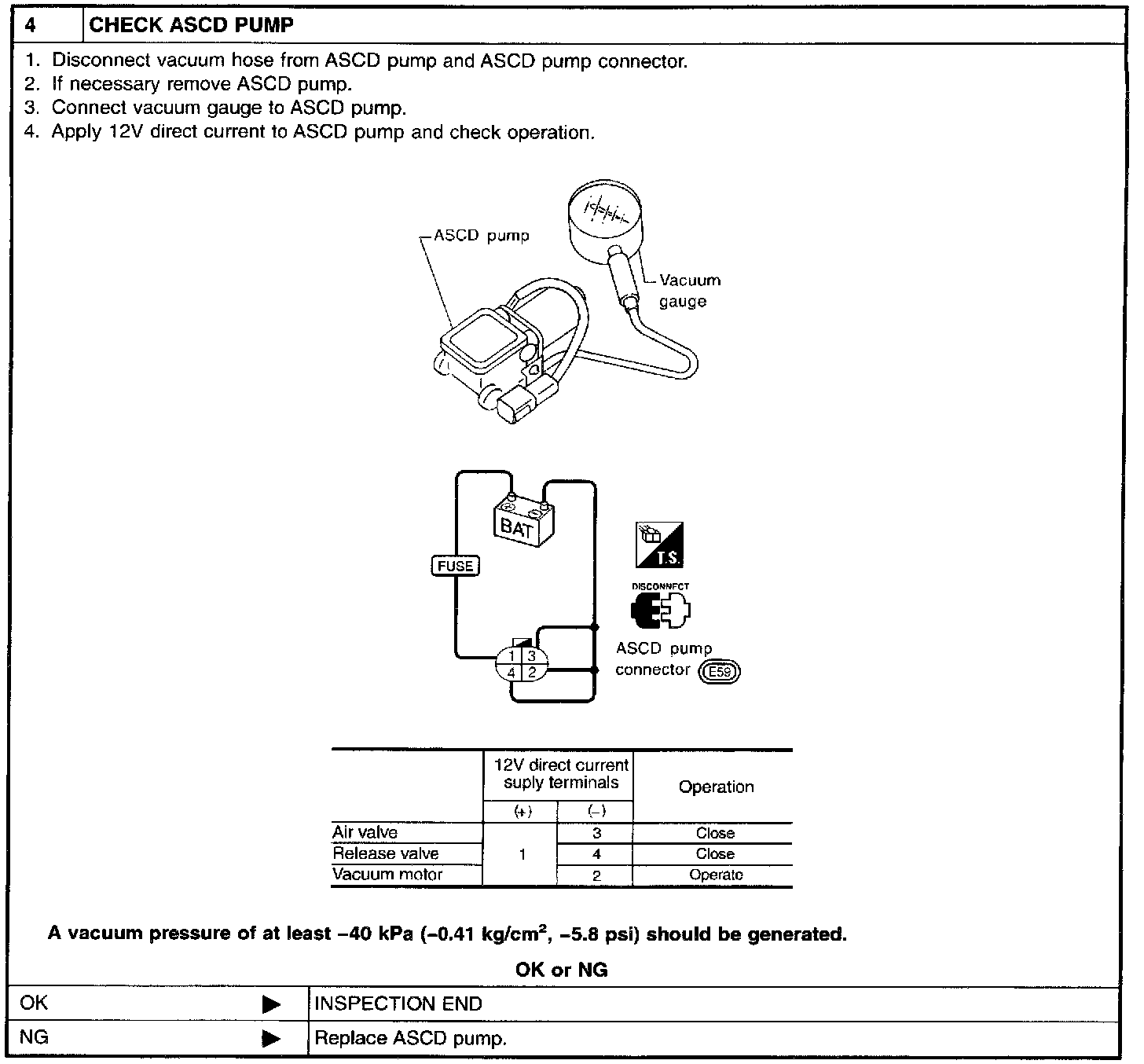

ASCD ACTUATOR/PUMP CHECK
