Cruise Control
Schematic
Circuit Diagrams

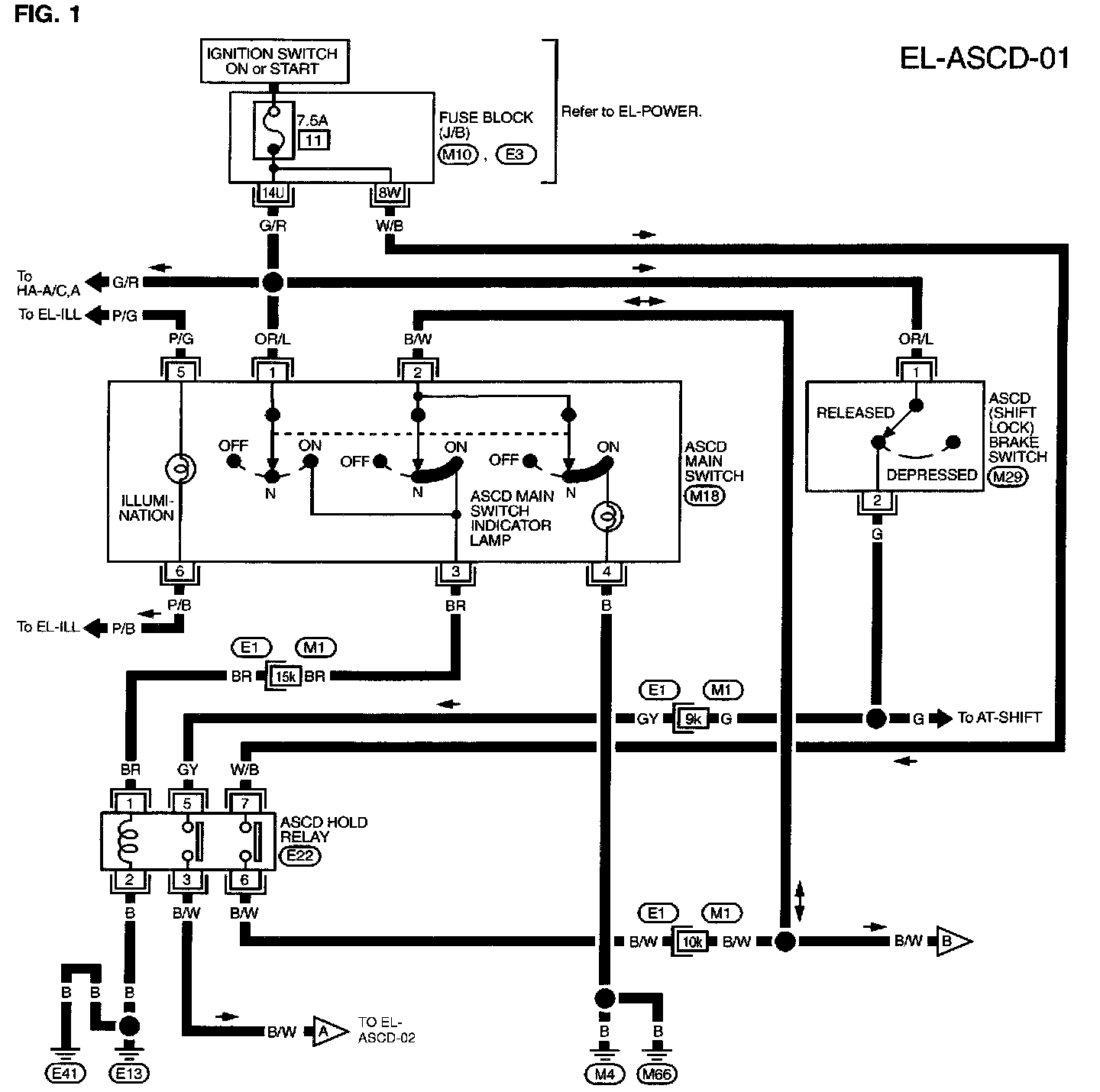

EL-ASCD-01:
(Part 1 of 5)
Fuse Block (J/B)
ASCD Main Switch
ASCD (Shift Lock) Brake Switch
ASCD Hold Relay

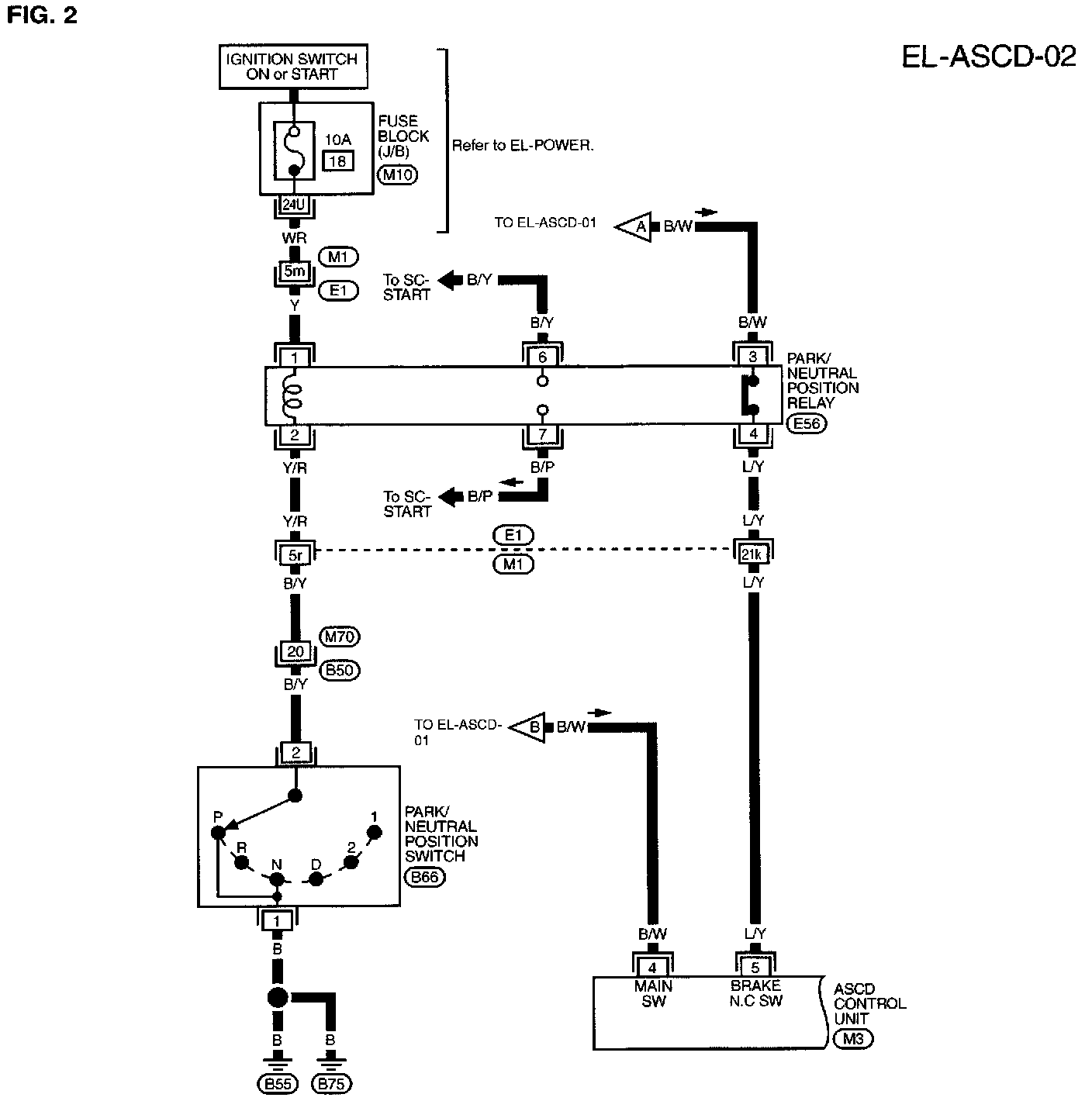

EL-ASCD-02:
(Part 2 of 5)
Fuse Block (J/B)
Park/Neutral Position Relay
Park/Neutral Position Switch
ASCD Control Unit

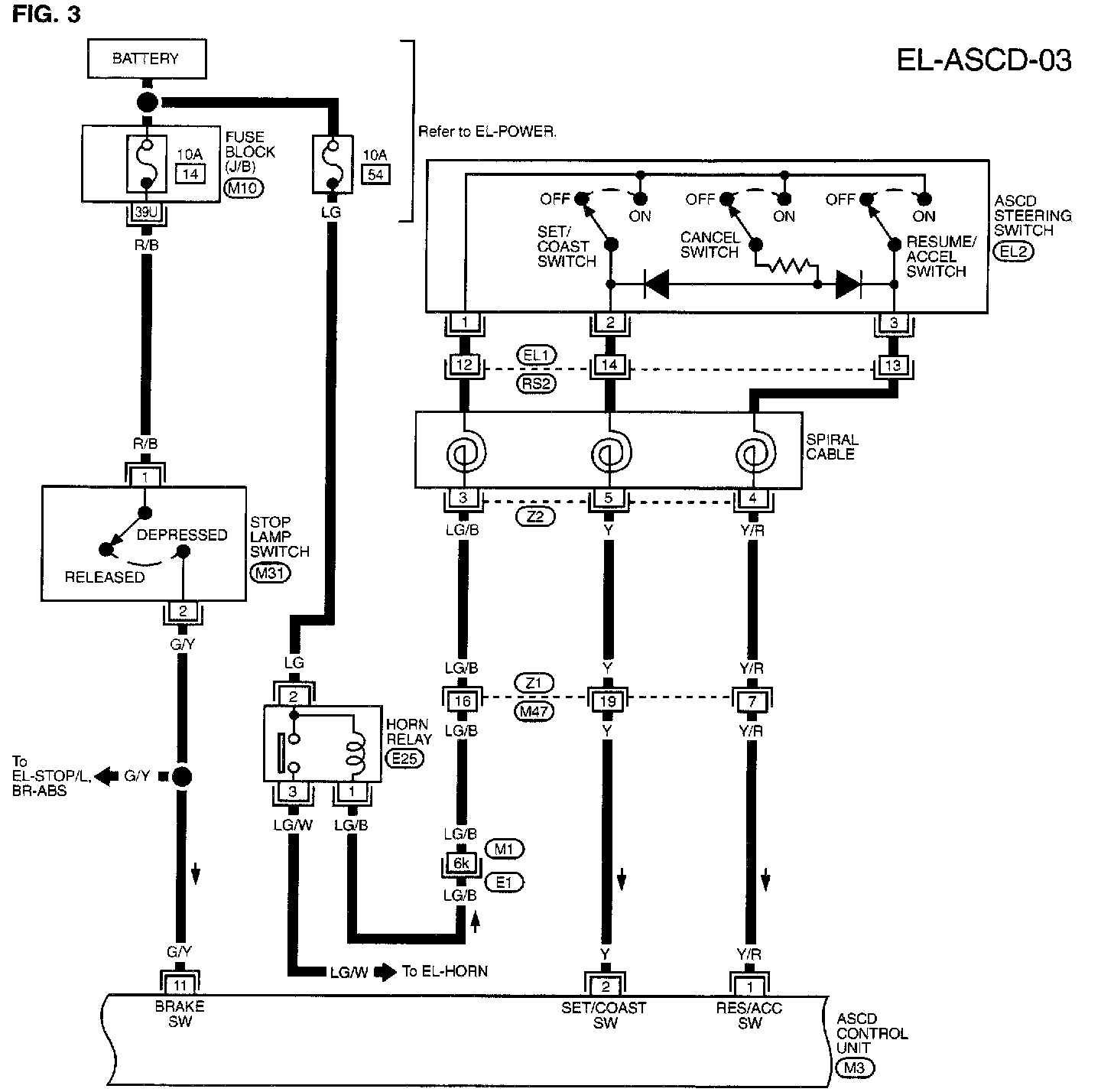

EL-ASCD-03:
(Part 3 of 5)
Fuse Block (J/B)
Stop Lamp Switch
Horn Relay
Spiral Cable
ASCD Steering Switch
ASCD Control Unit

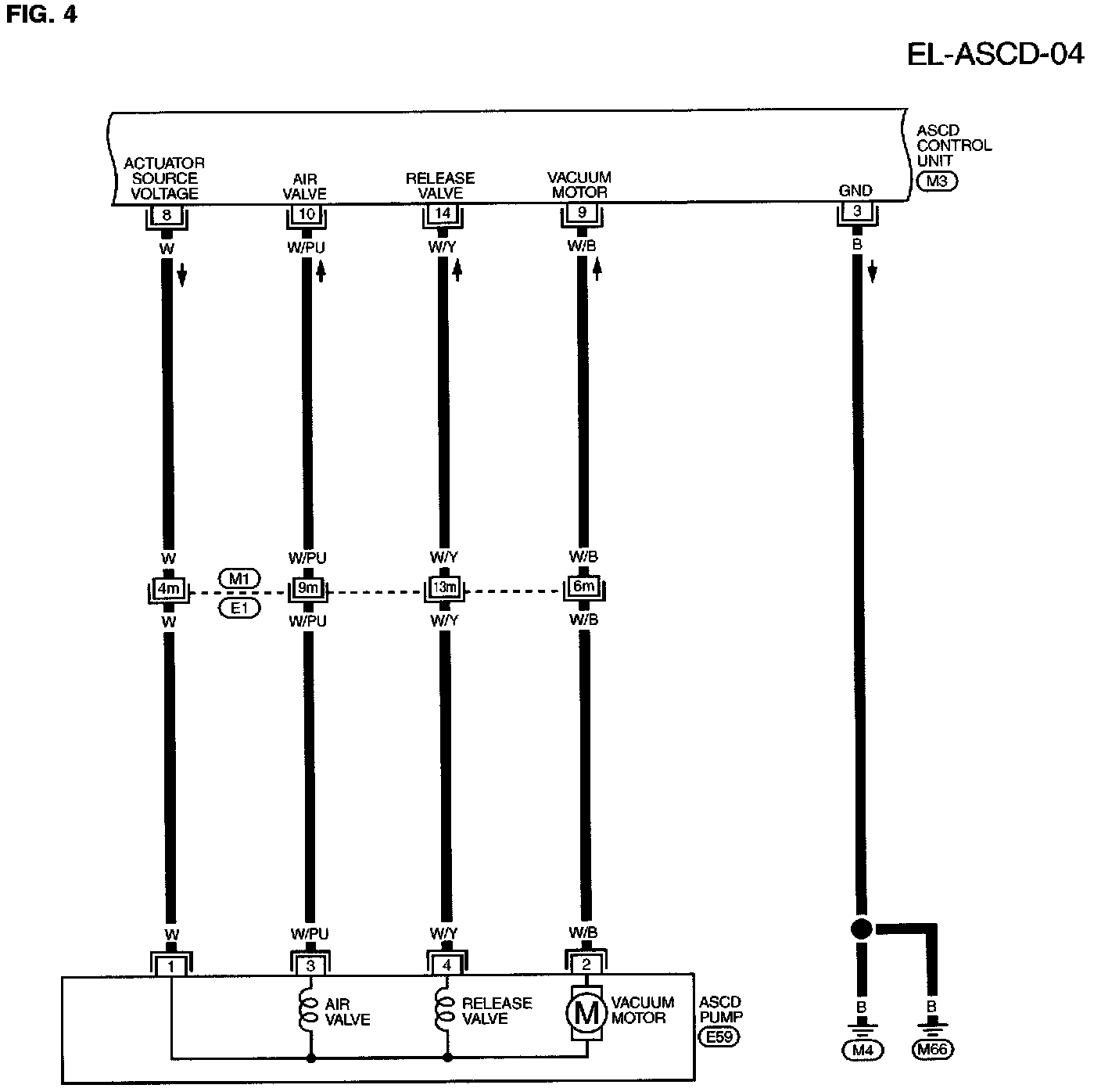

EL-ASCD-04:
(Part 4 of 5)
ASCD Control Unit
ASCD Pump

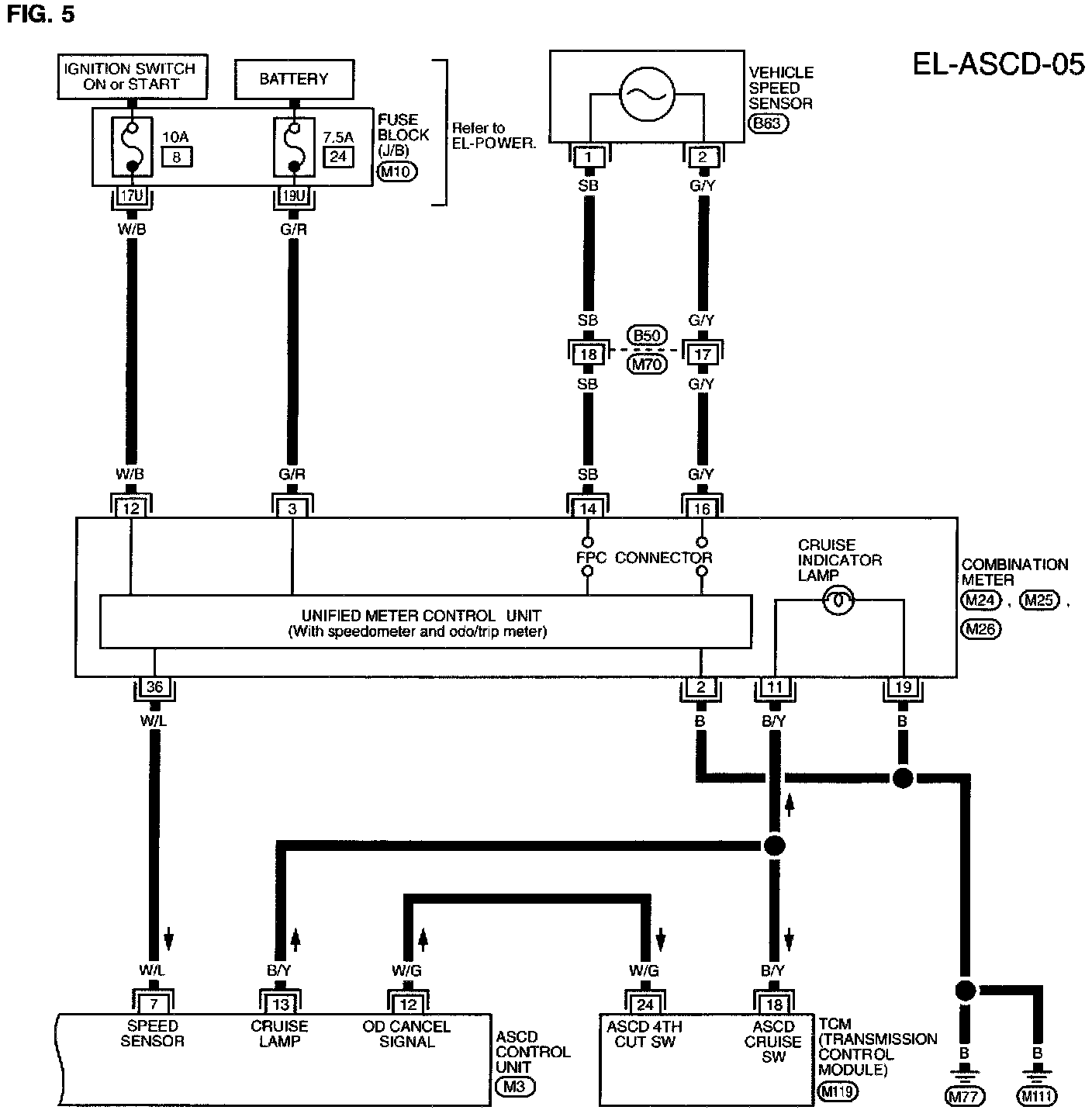

EL-ASCD-05:
(Part 5 of 5)
Combination Meter
Fuse Block (J/B)
ASCD Control Unit
TCM (Transmission Control Module)
Circuit Connectors
M1, E1, M2, B1:

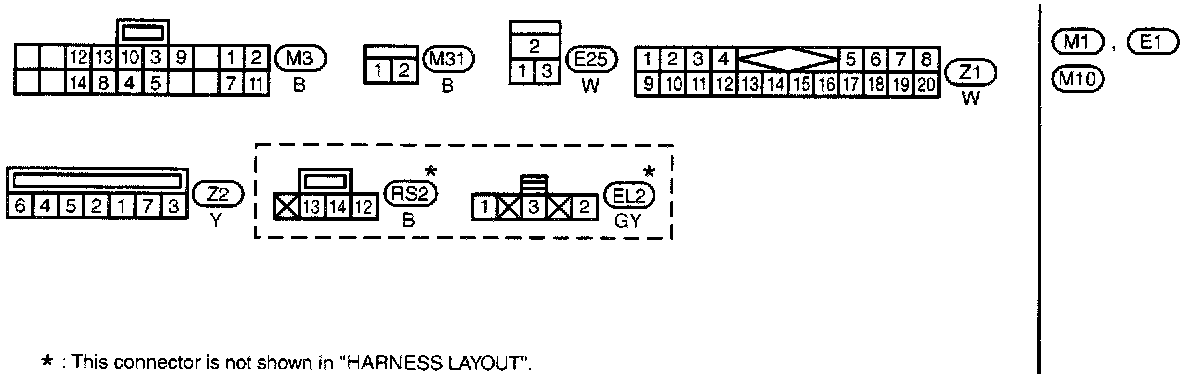

M1, E1, E3 Super Multiple Junction (SMJ) Terminal Arrangement
M10, E3, M91:

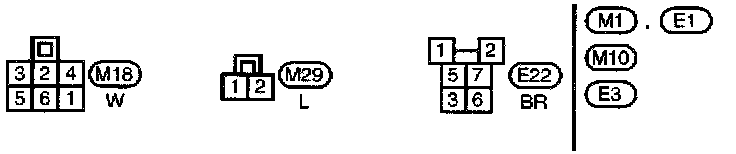

M10, E3, Fuse Block Junction (J/B) Terminal Arrangement

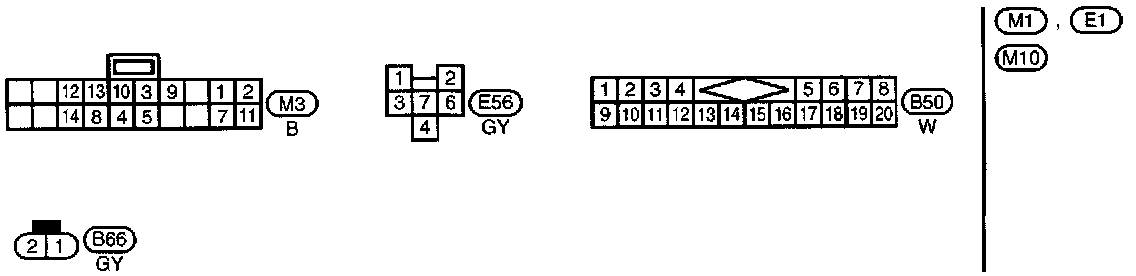

M119, M120:
M119 Electrical Unit Terminal Arrangement
