Instrument Cluster / Carrier

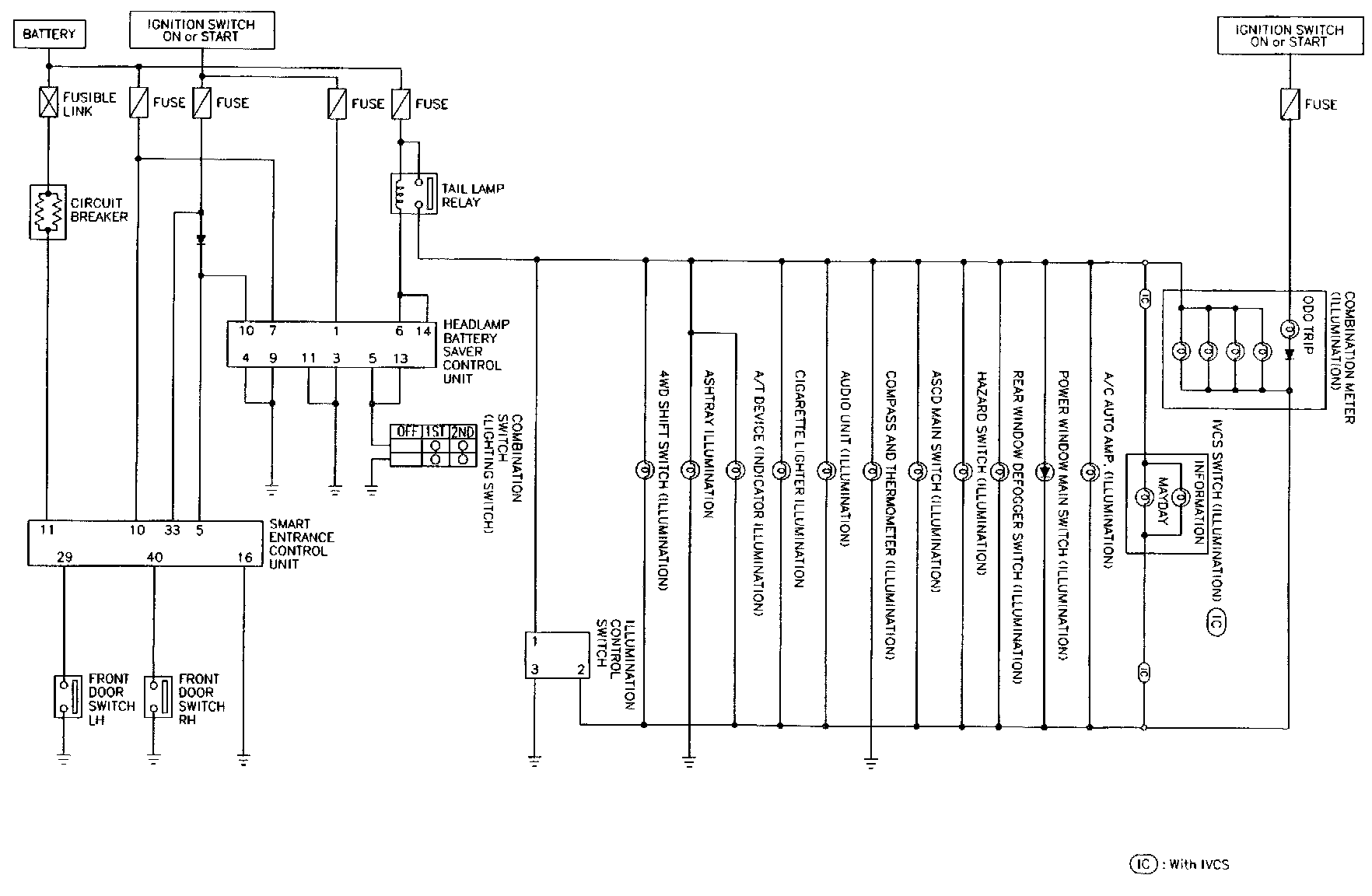

Schematic

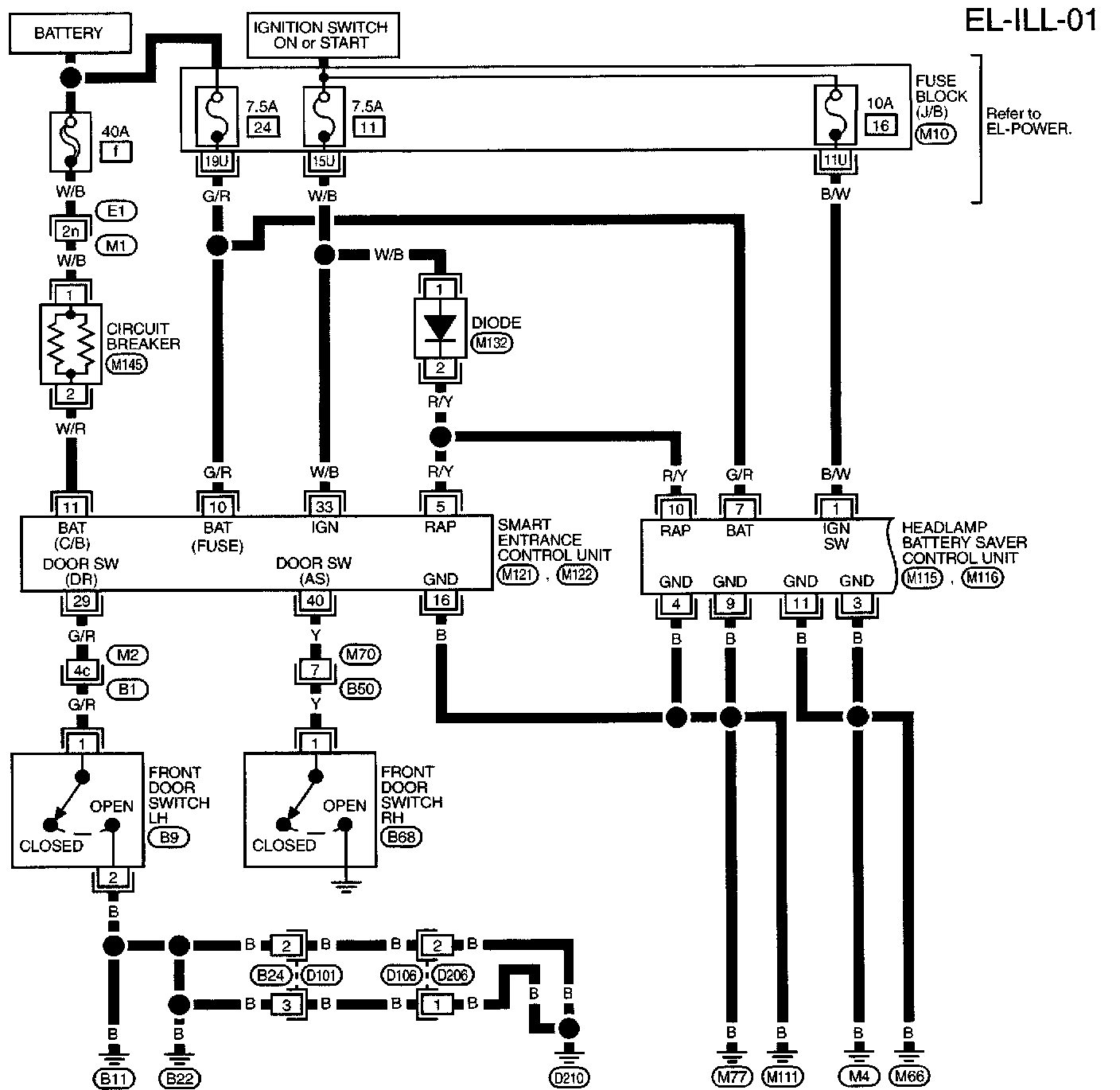

EL-ILL-01:

(Part 1 of 4)
Fuse Block (J/B)
Circuit Breaker
Smart Entrance Control Unit
Front Door Switch LH
Front Door Switch RH
Headlamp Battery Saver Control Unit
Diode

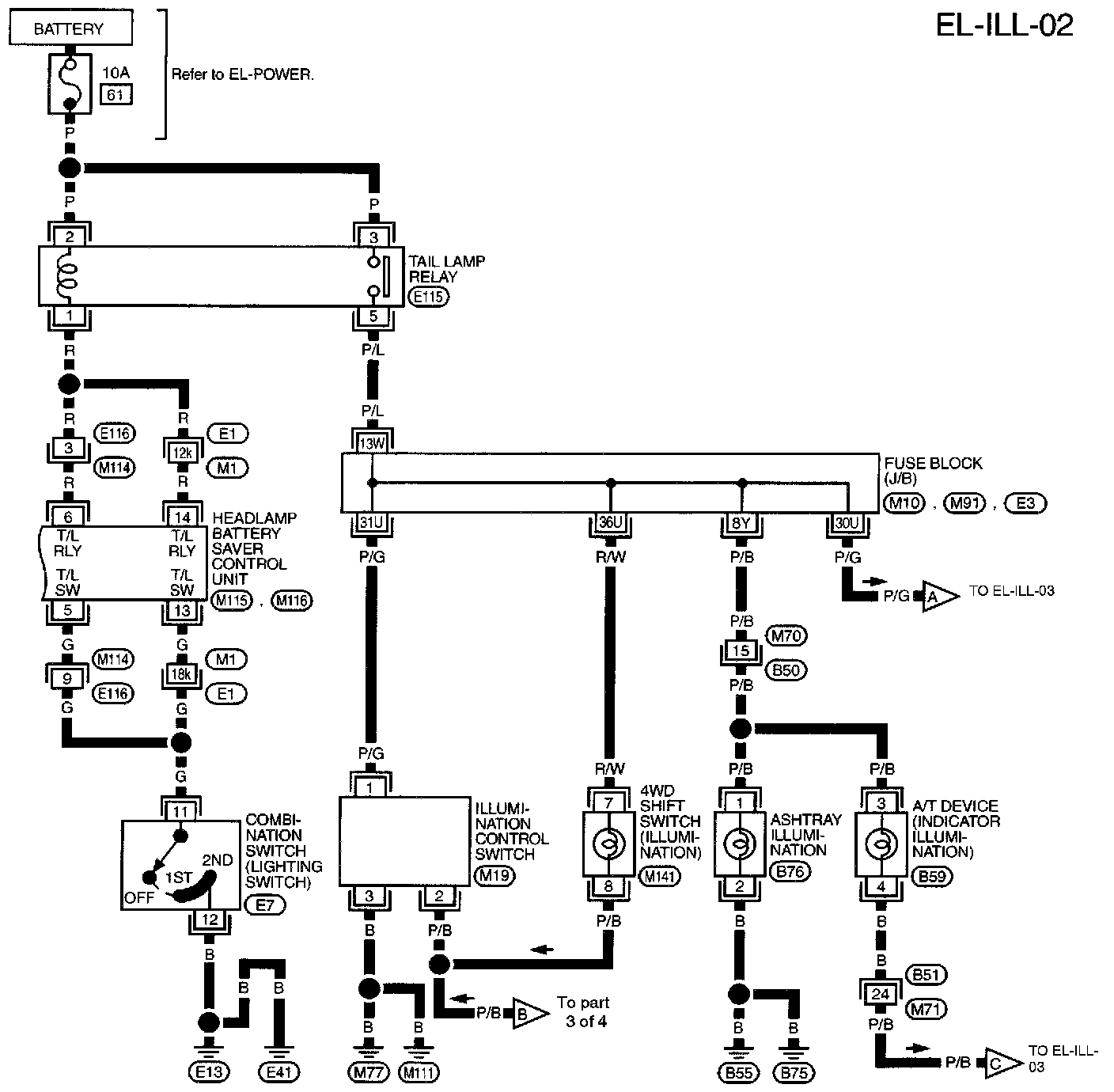

EL-ILL-02:

(Part 2 of 4)
Fuse Block (J/B)
Combination Switch (Lighting Switch)
Headlamp Battery Saver Control Unit
Tail Lamp Relay
Illumination Control Switch
4WD Shift Switch (Illumination)
Ashtray Illumination
A/T Device (Indicator Illumination)

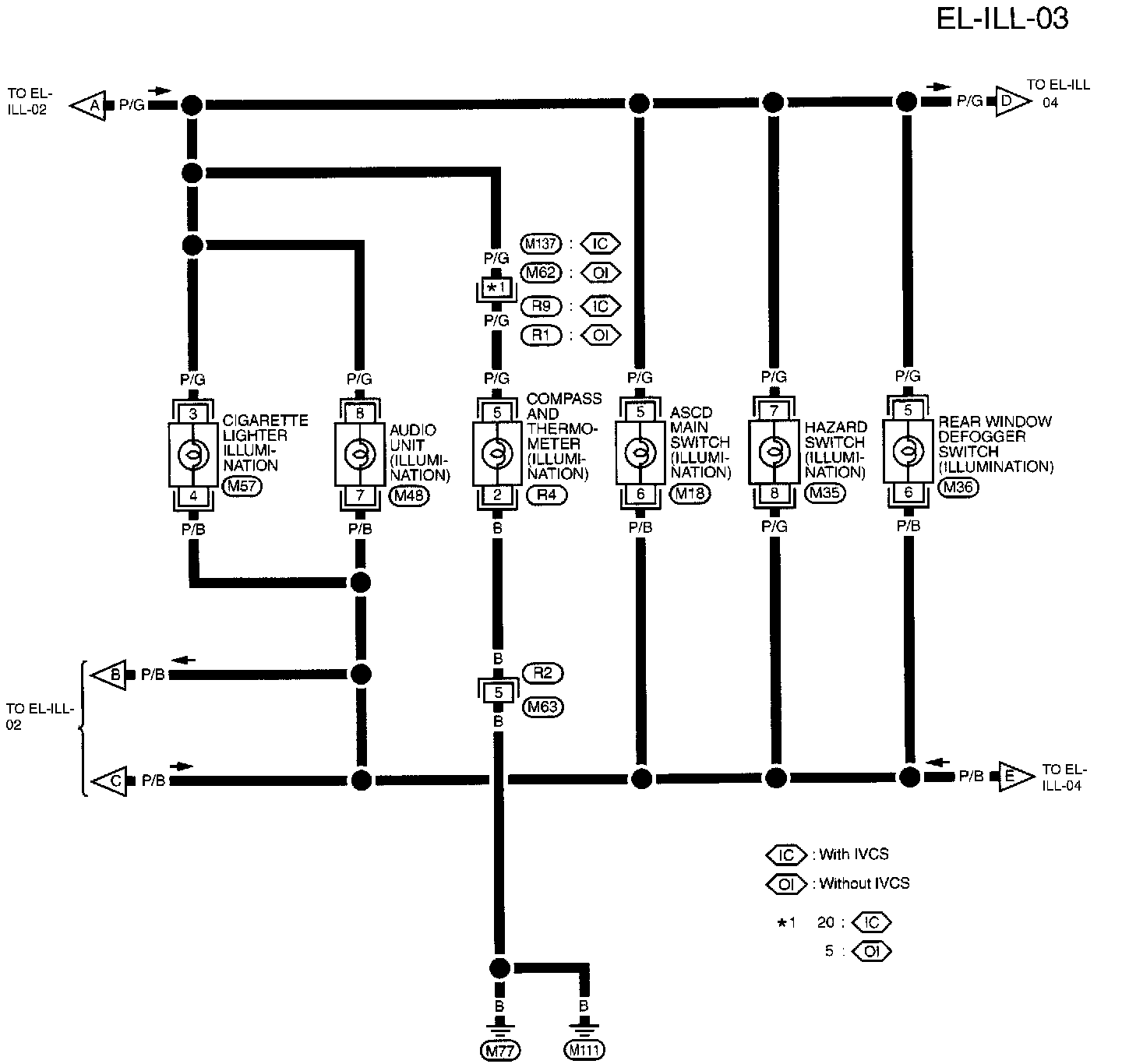

EL-ILL-03:

(Part 3 of 4)
Cigarette Lighter
Audio Unit
Compass and Thermometer
ASCD Main Switch
Hazard Switch
Rear Window Defogger Switch

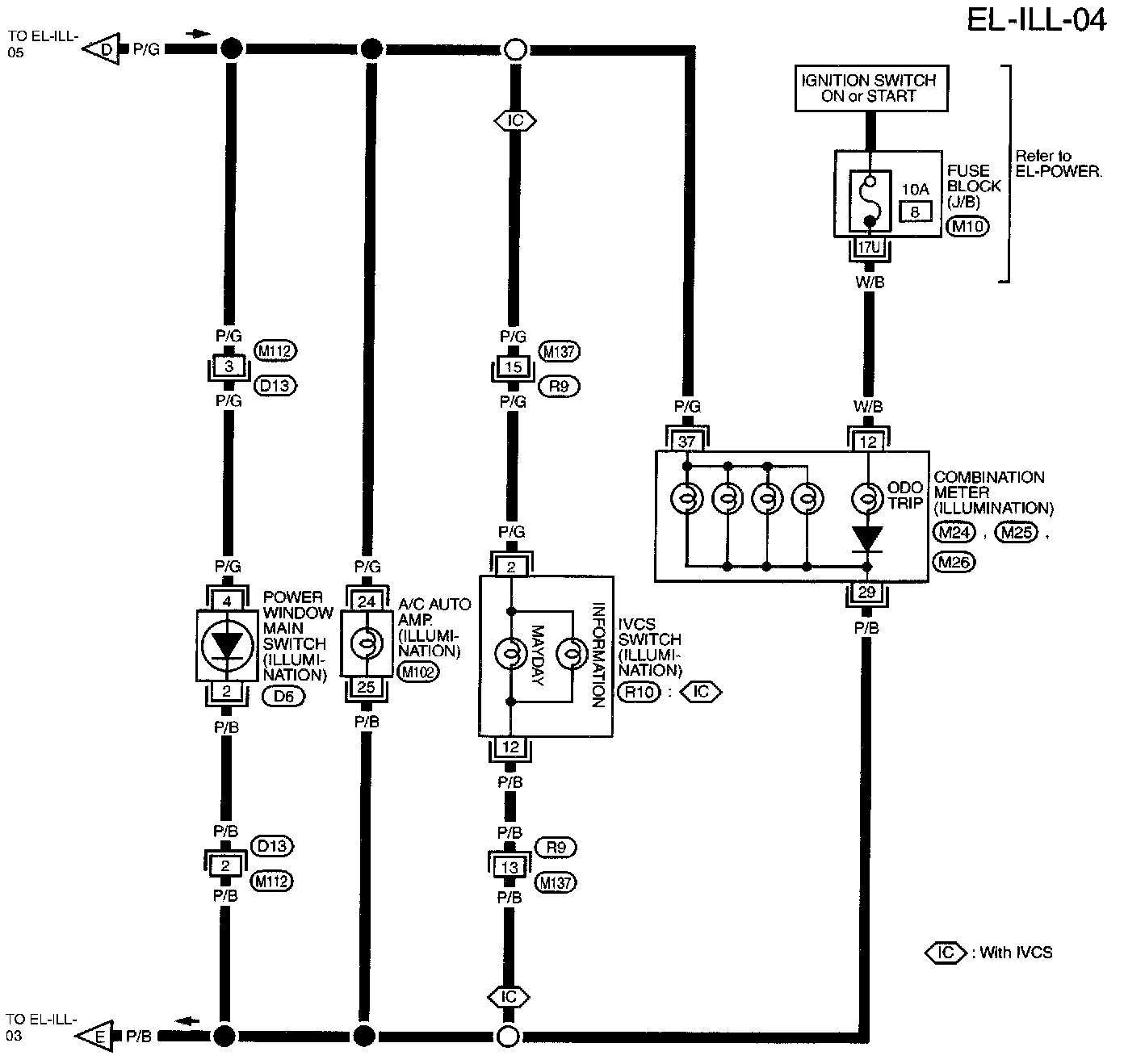

EL-ILL-04:

(Part 4 of 4)
Power Window Main Switch
A/C Auto Amp.
IVCS Switch
Fuse Block (J/B)
Combination Meter

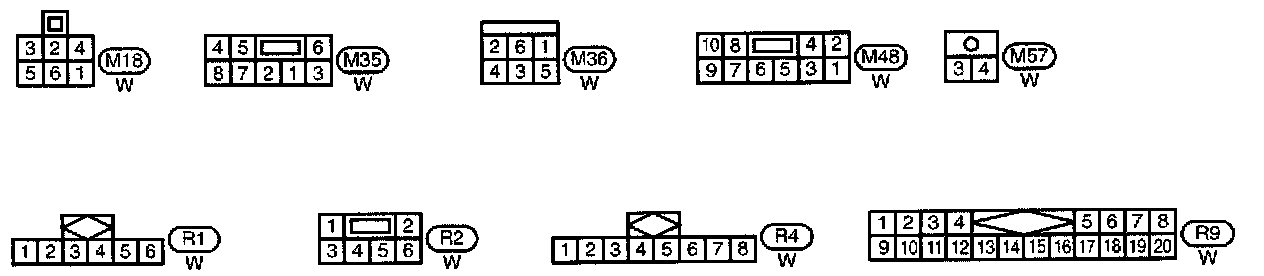

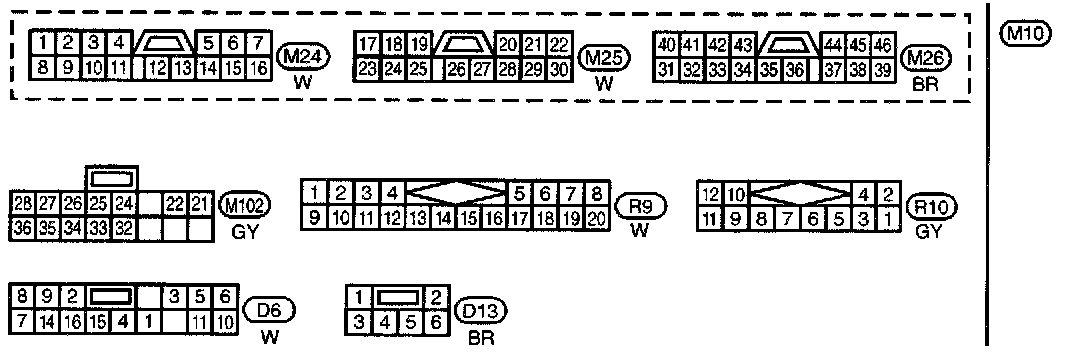

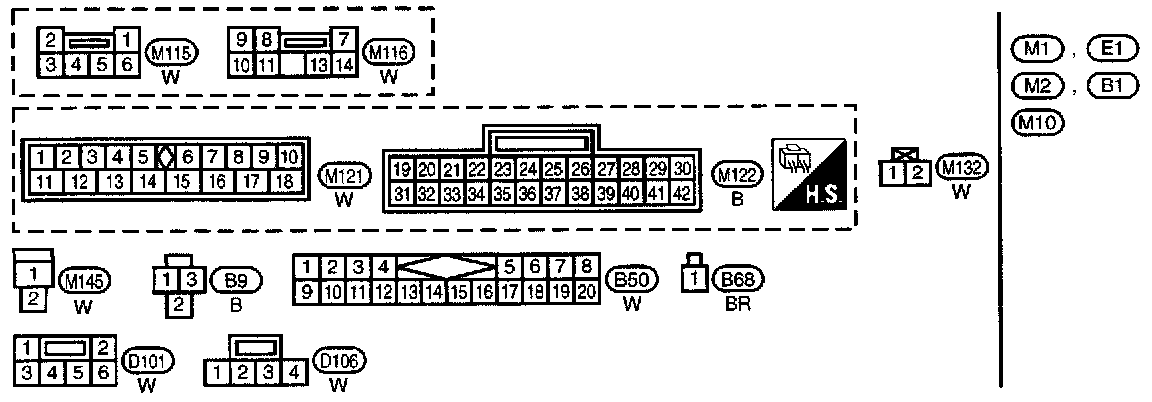

Circuit Connectors

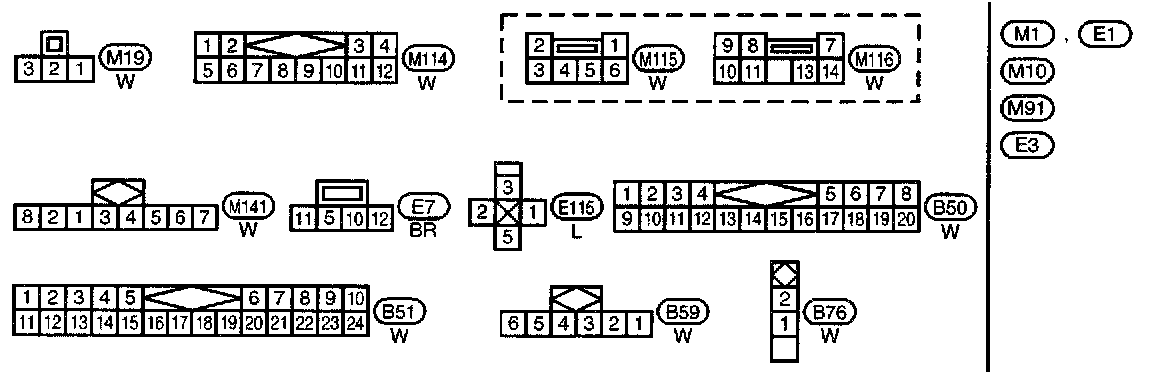

M1, E1, M2, B1:

M1, M2, E1, B1 Super Multiple Junction (SMJ) Terminal Arrangement

M10, E3, M91:

M10, 91, E3 Fuse Block Junction (J/B) Terminal Arrangement
