All Mode 4WD System

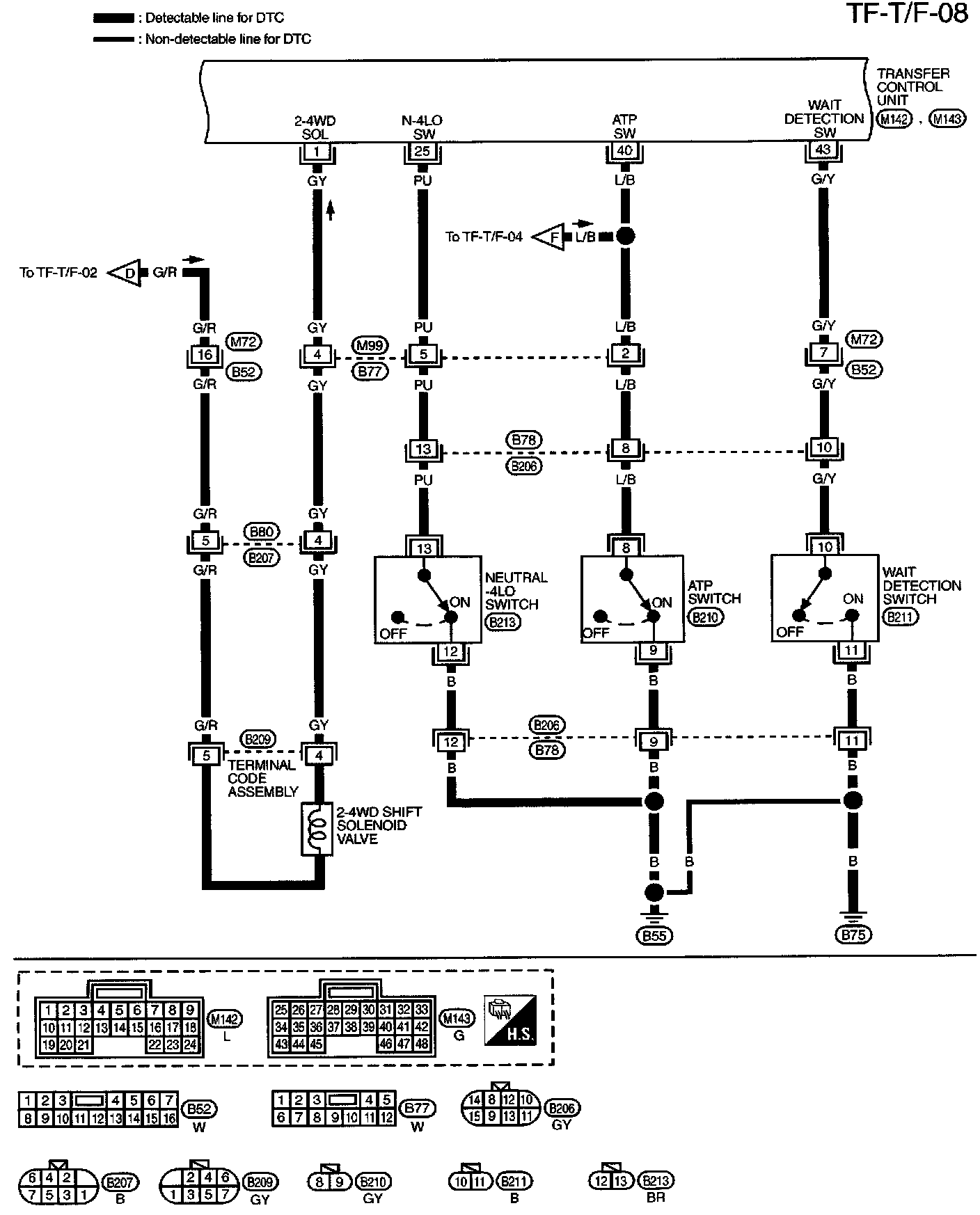

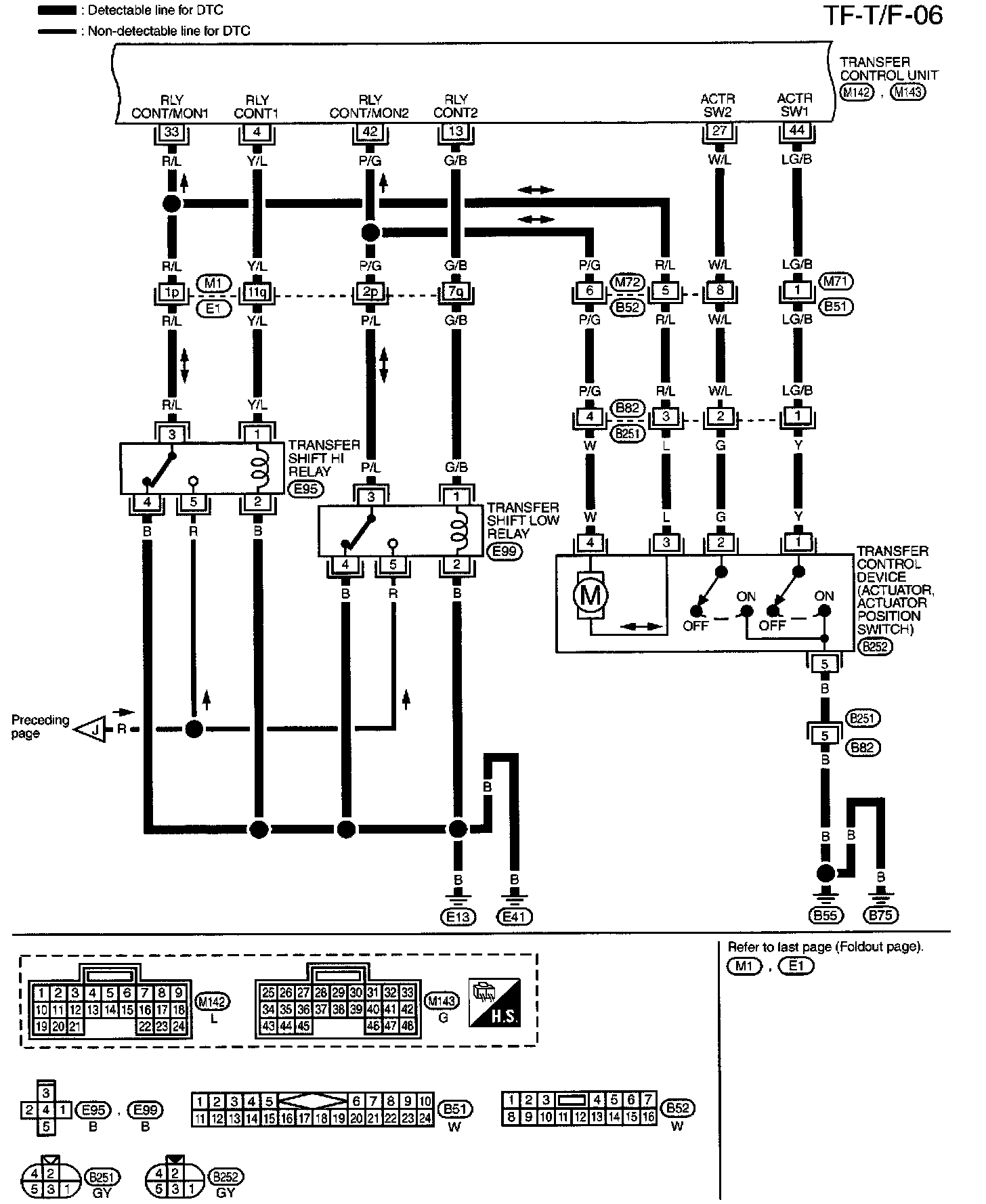

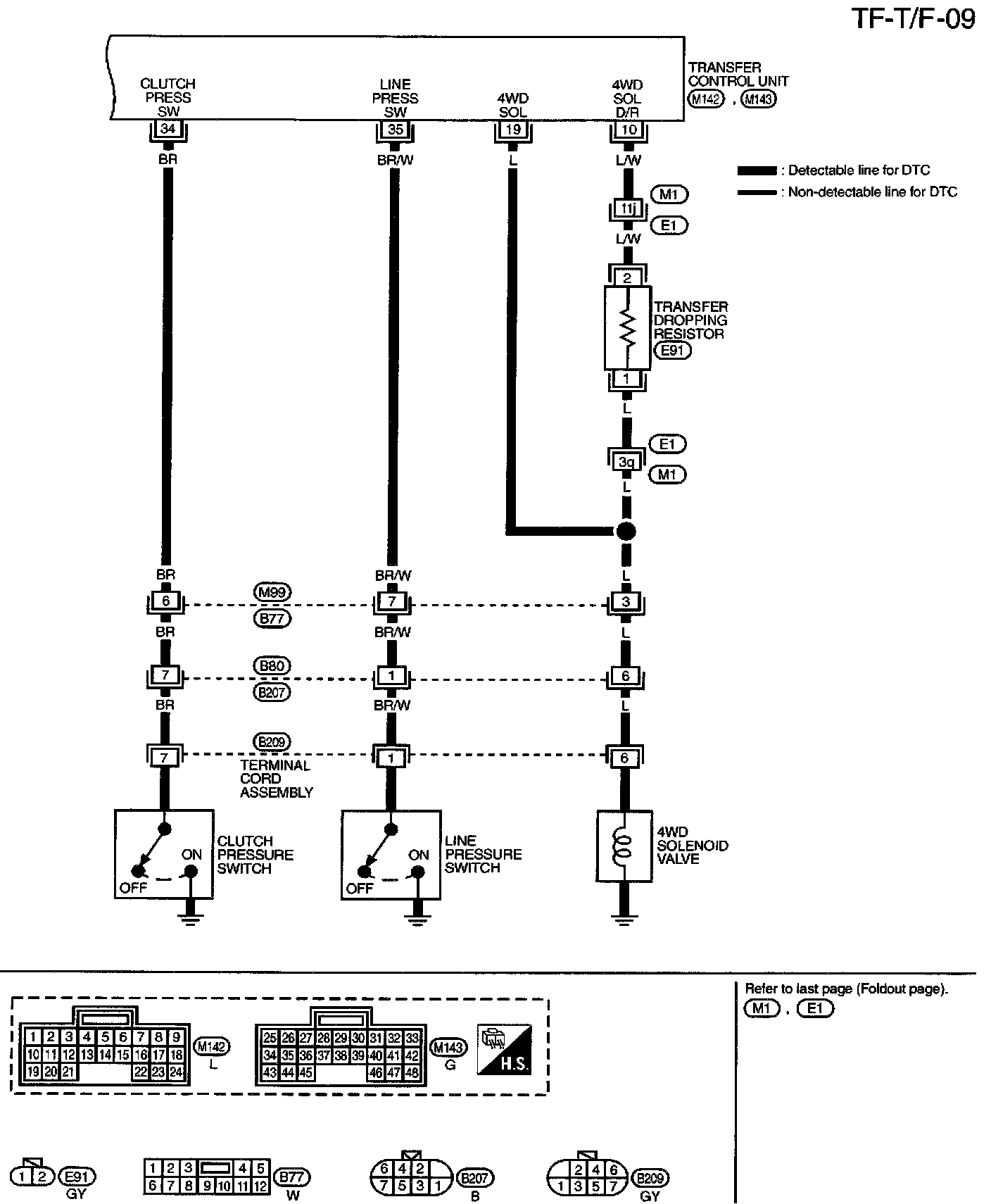

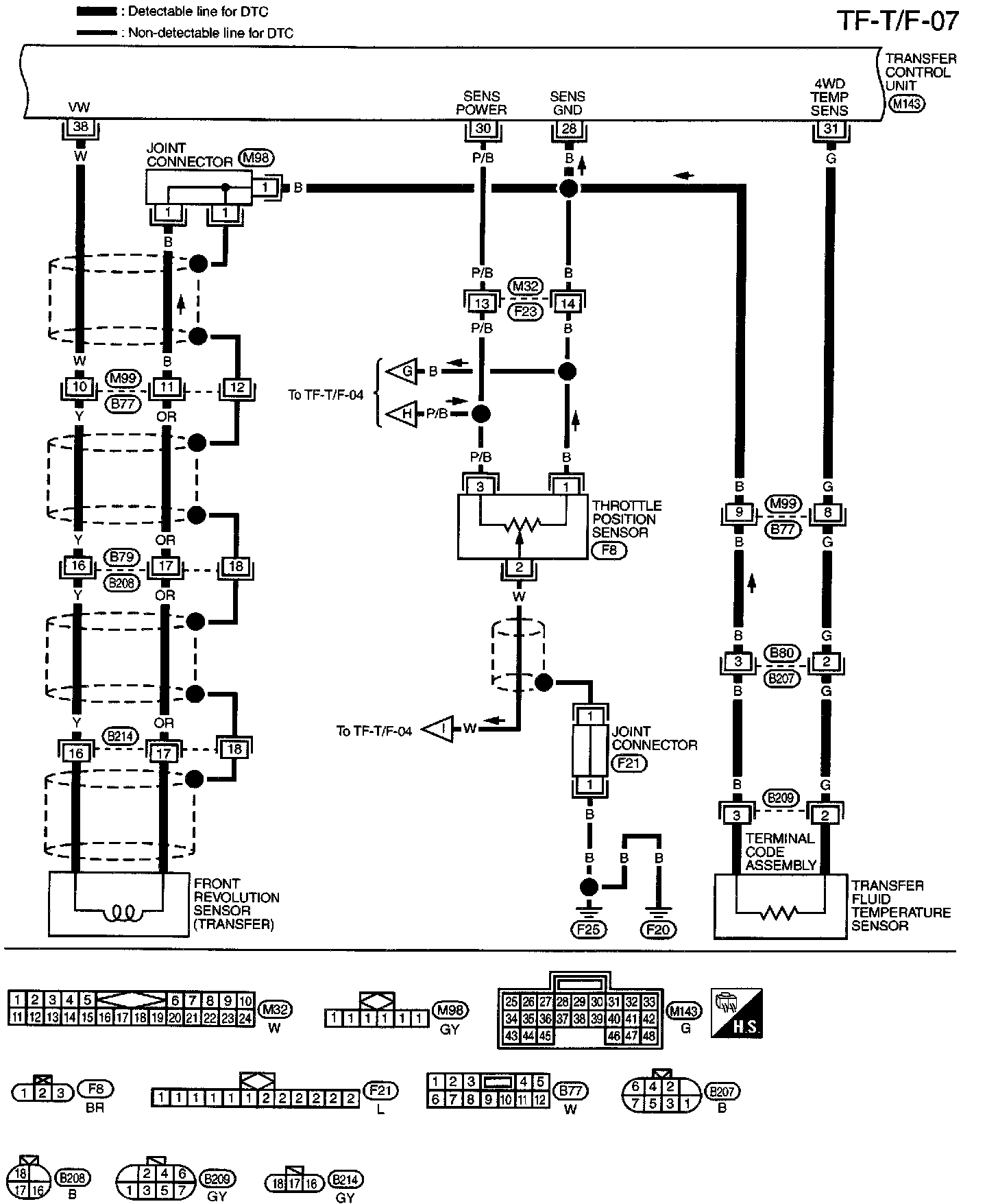

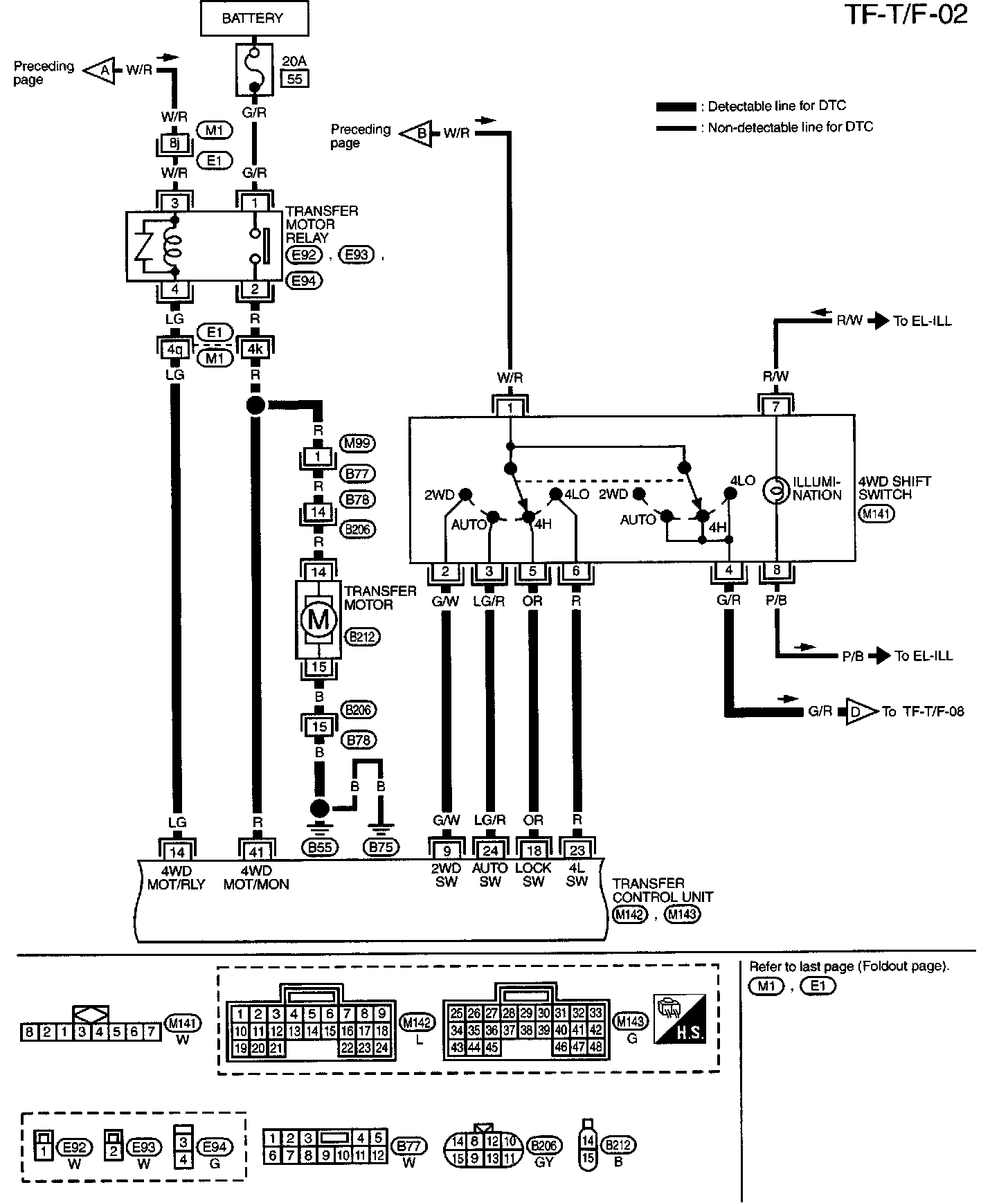

Wiring Diagram - TF -





Part 1 of 9





Part 2 of 9





Part 3 of 9





Part 4 of 9





Part 5 of 9





Part 6 of 9





Part 7 of 9





Part 8 of 9





Part 9 of 9
