Rear Wiper and Washer System
Schematic
Circuit Diagrams

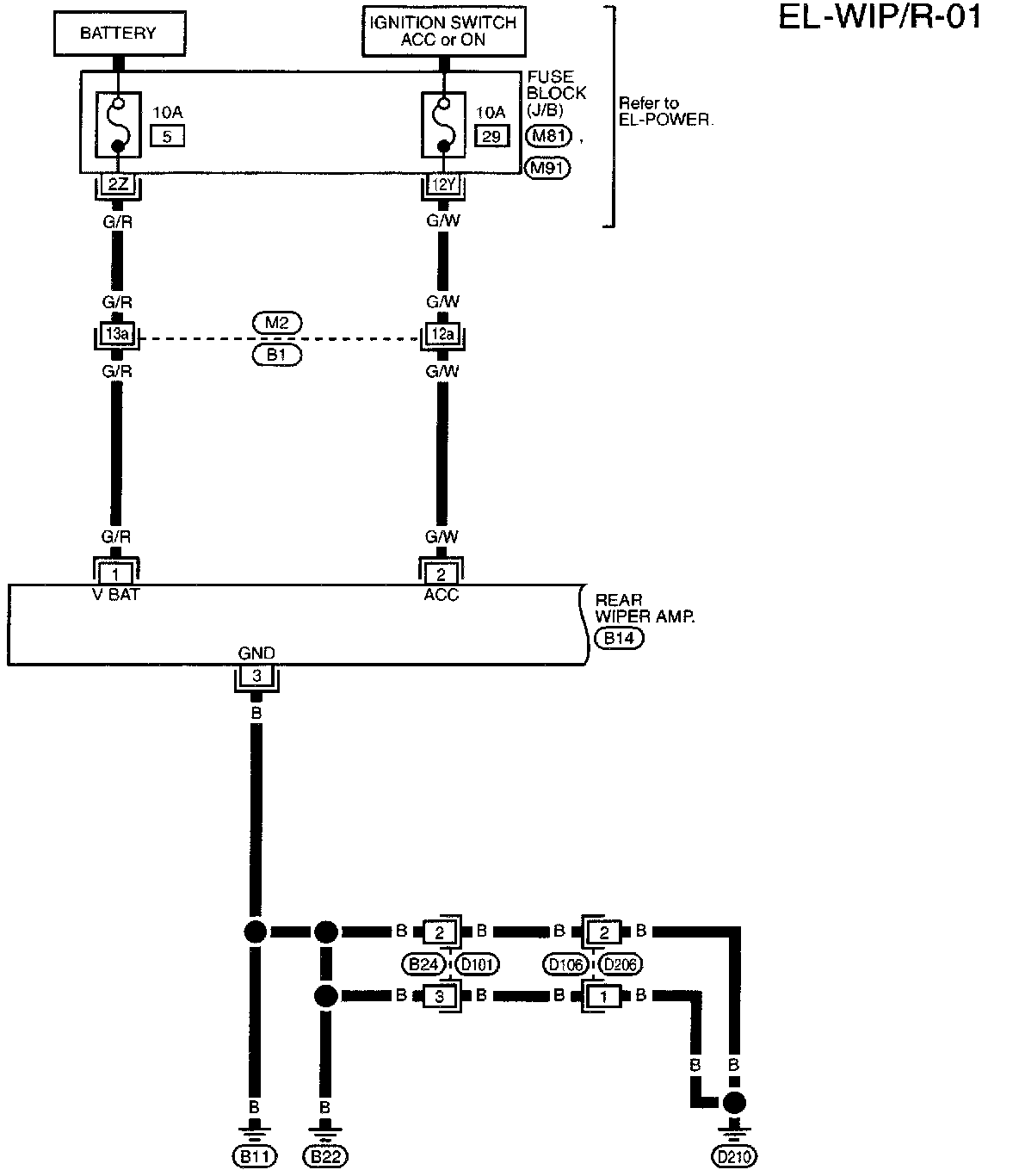

EL-WIP/R-01:
(Part 1 of 3)
Fuse Block (J/B)
Rear Wiper Amp.

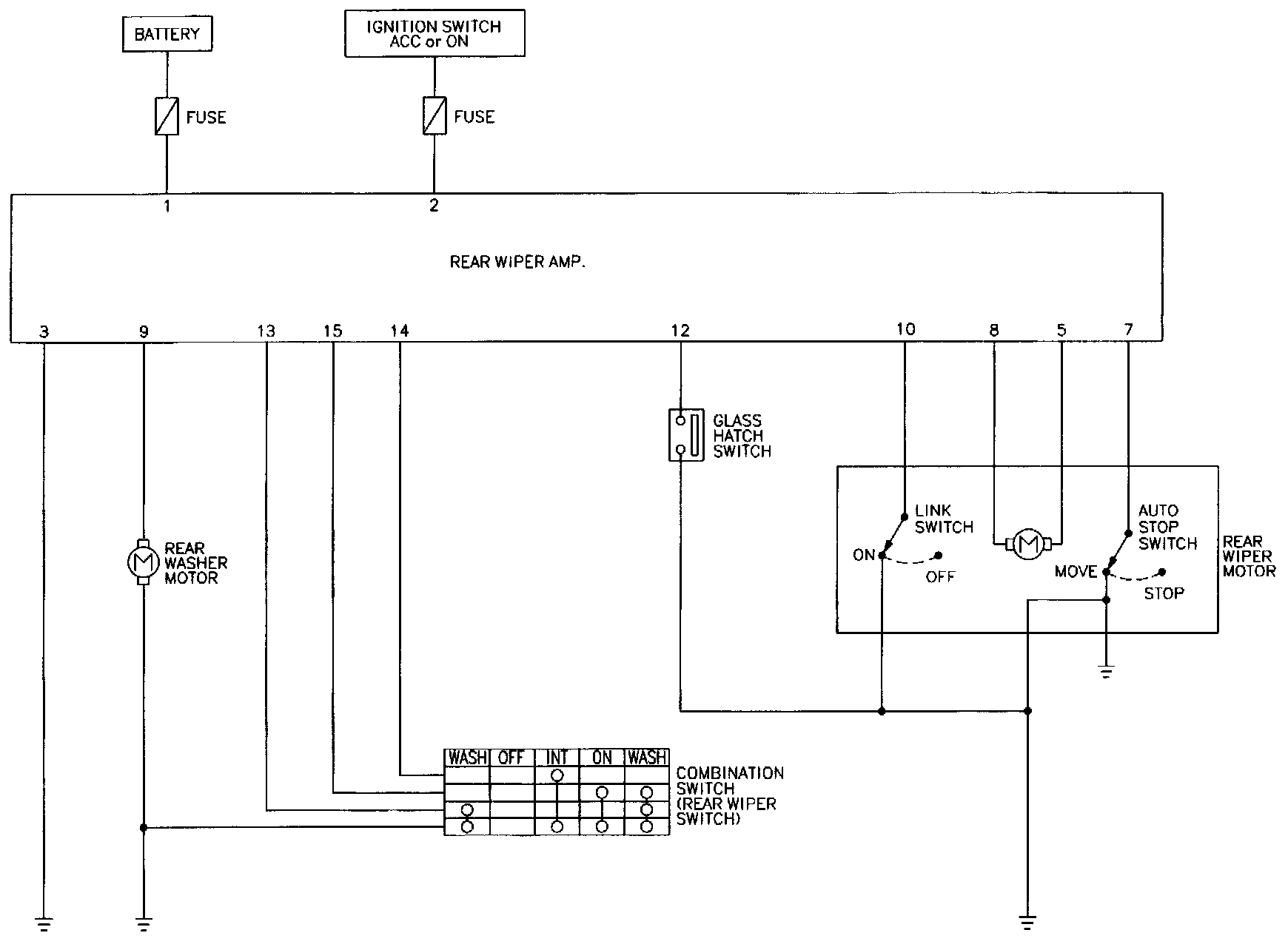

EL-WIP/R-02:
(Part 2 of 3)
Combination Switch (Rear Wiper Switch)
Rear Washer motor
Rear Wiper Amp.

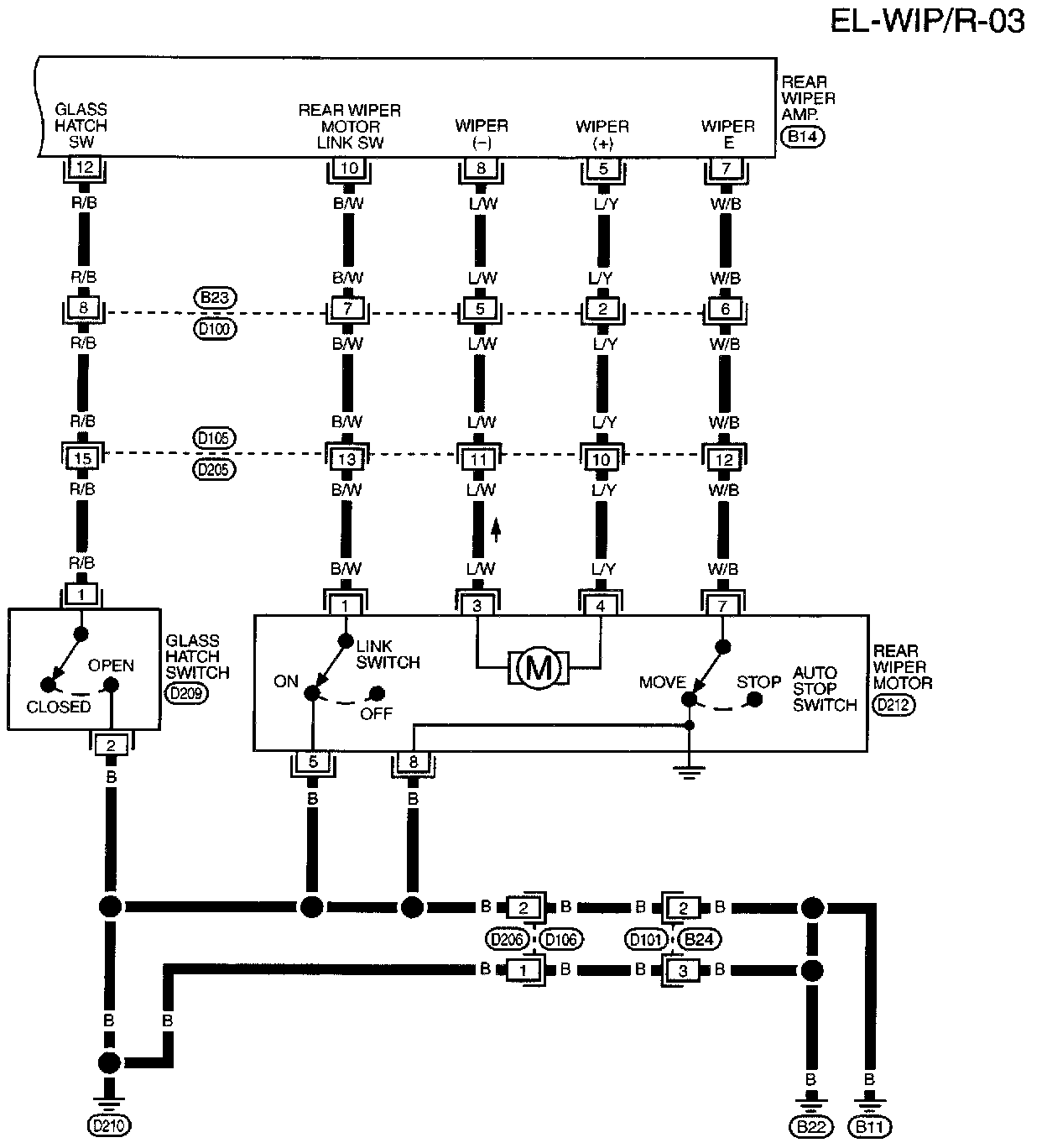

EL-WIP/R-03:
(Part 3 of 3)
Glass Hatch Switch
Rear Wiper motor
Rear Wiper Amp.
Circuit Connectors
M1, E1, M2, B1:
M1, M2, E1, B1 Super Multiple Junction (SMJ) Terminal Arrangement
M10, E3, M91:
M91, M81 Fuse Block Junction (J/B) Terminal Arrangement
