Pinout Values and Diagnostic Parameters

INSPECTION OF AUTO AMP.




- Measure voltage between each terminal and body ground by following "AUTO AMP. INSPECTION TABLE".

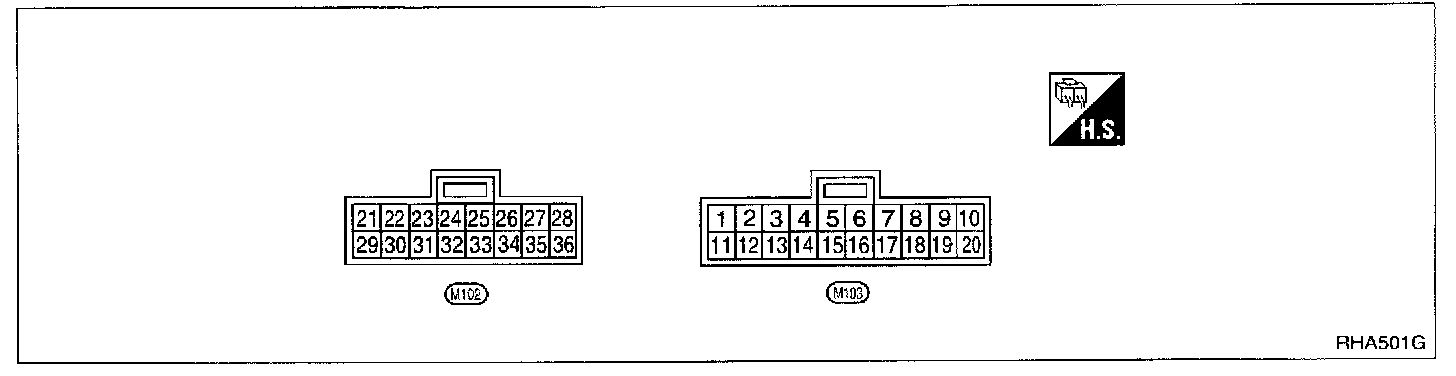

- Pin connector terminal layout

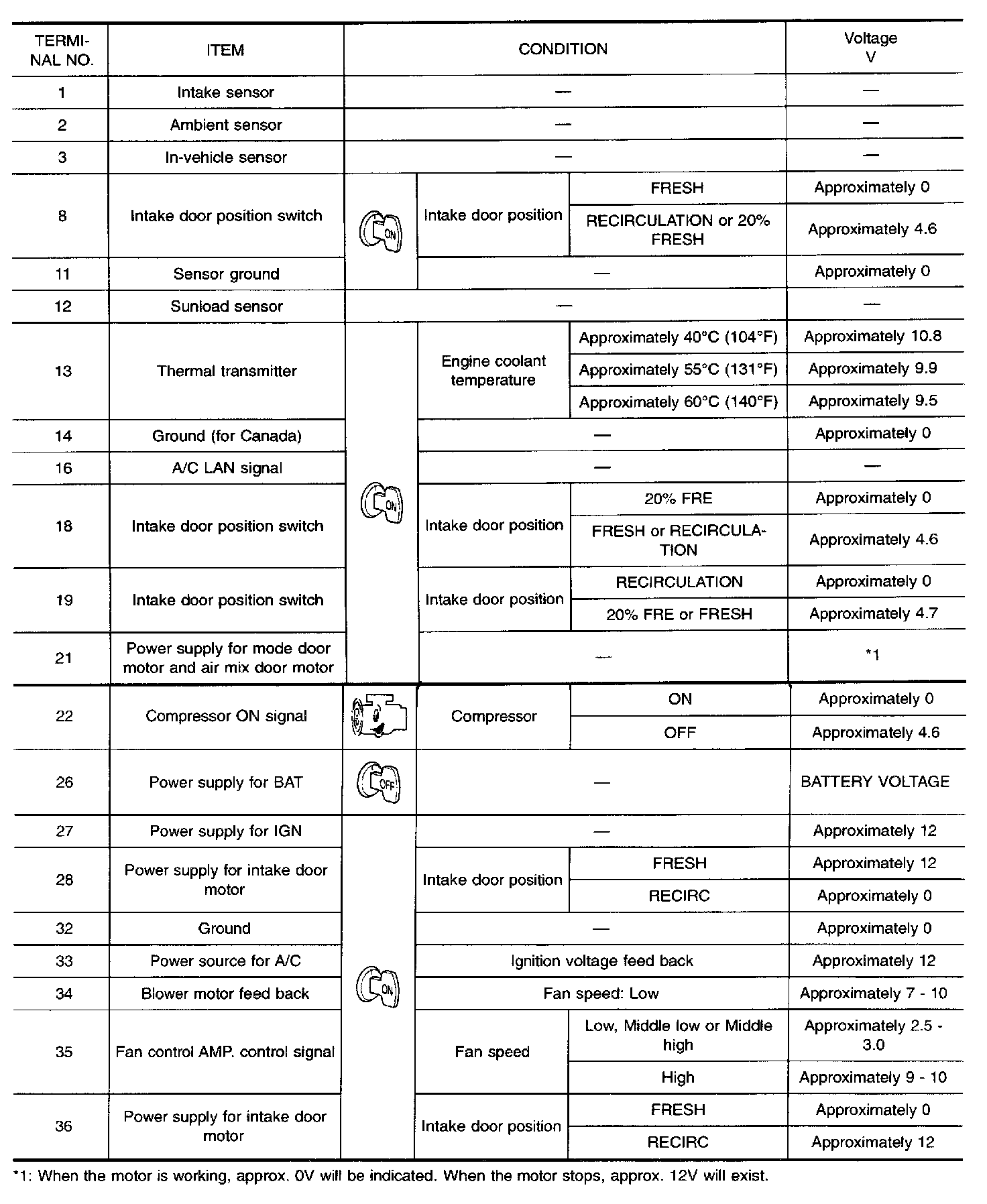

AUTO AMP. INSPECTION TABLE
