Symptom Related Diagnostic Procedures

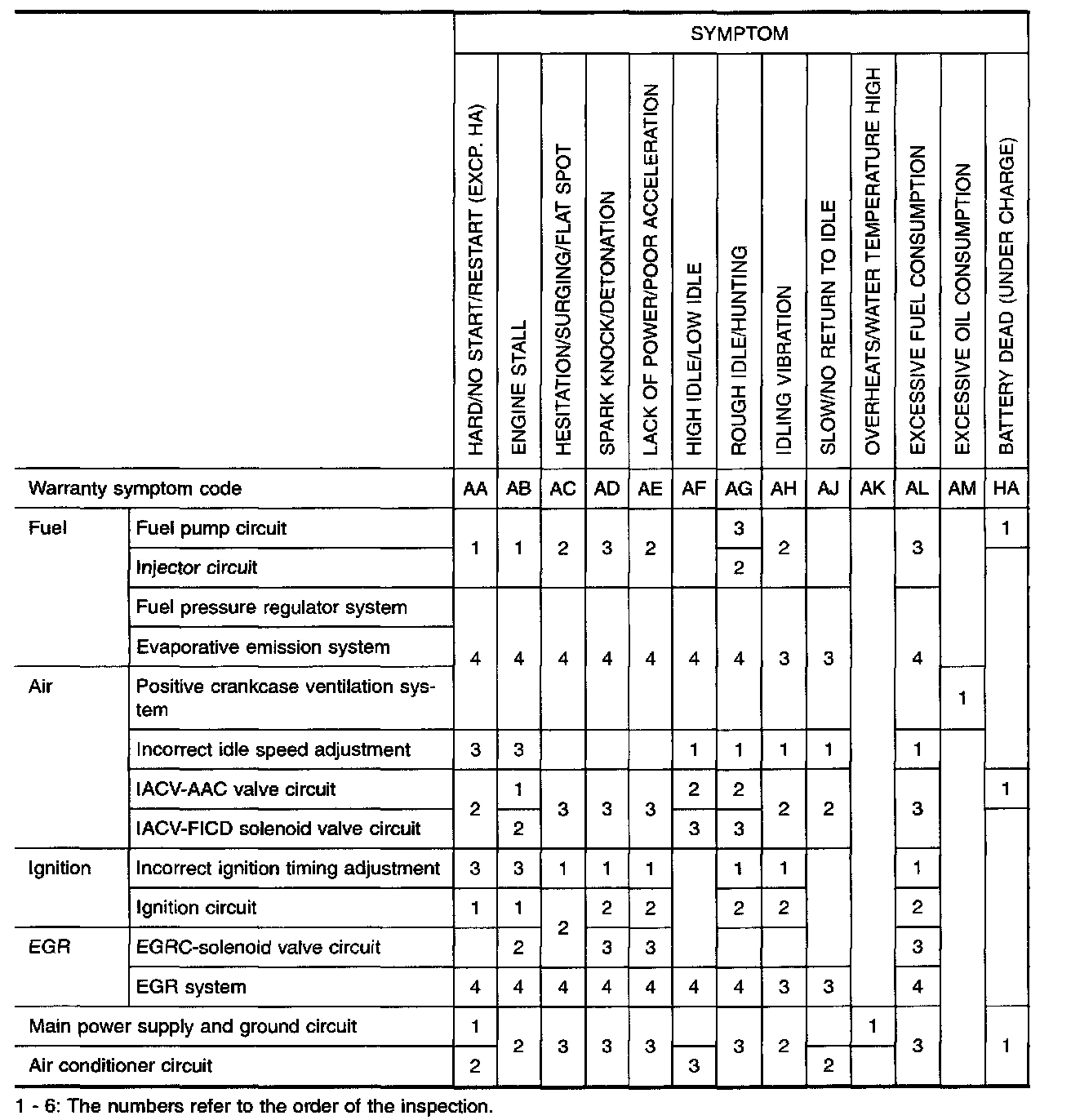

Basic Engine Control System (Part 1 Of 2):

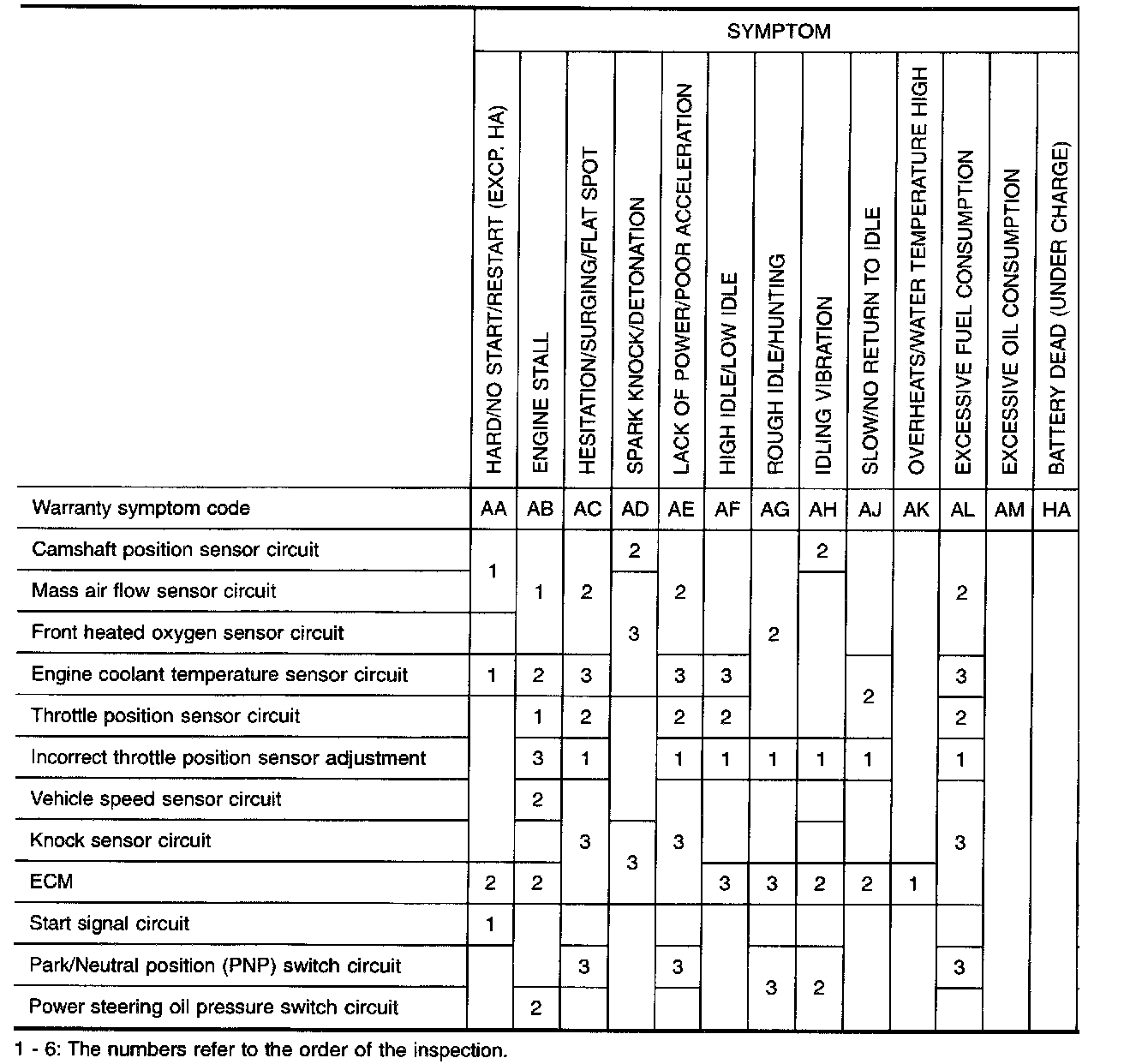

Basic Engine Control System (Part 2 Of 2):

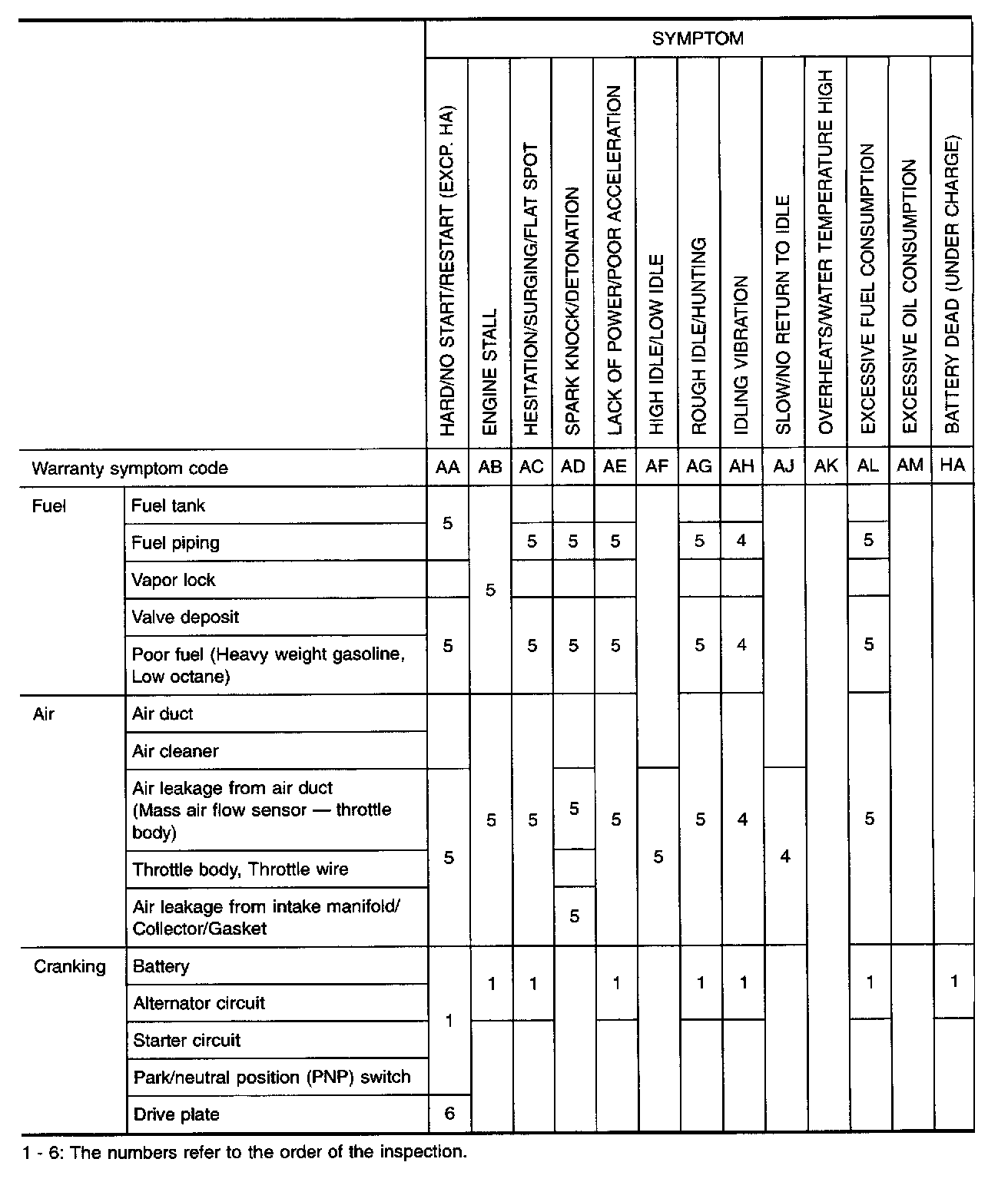

Engine Mechanical and Others (Part 1 Of 2):

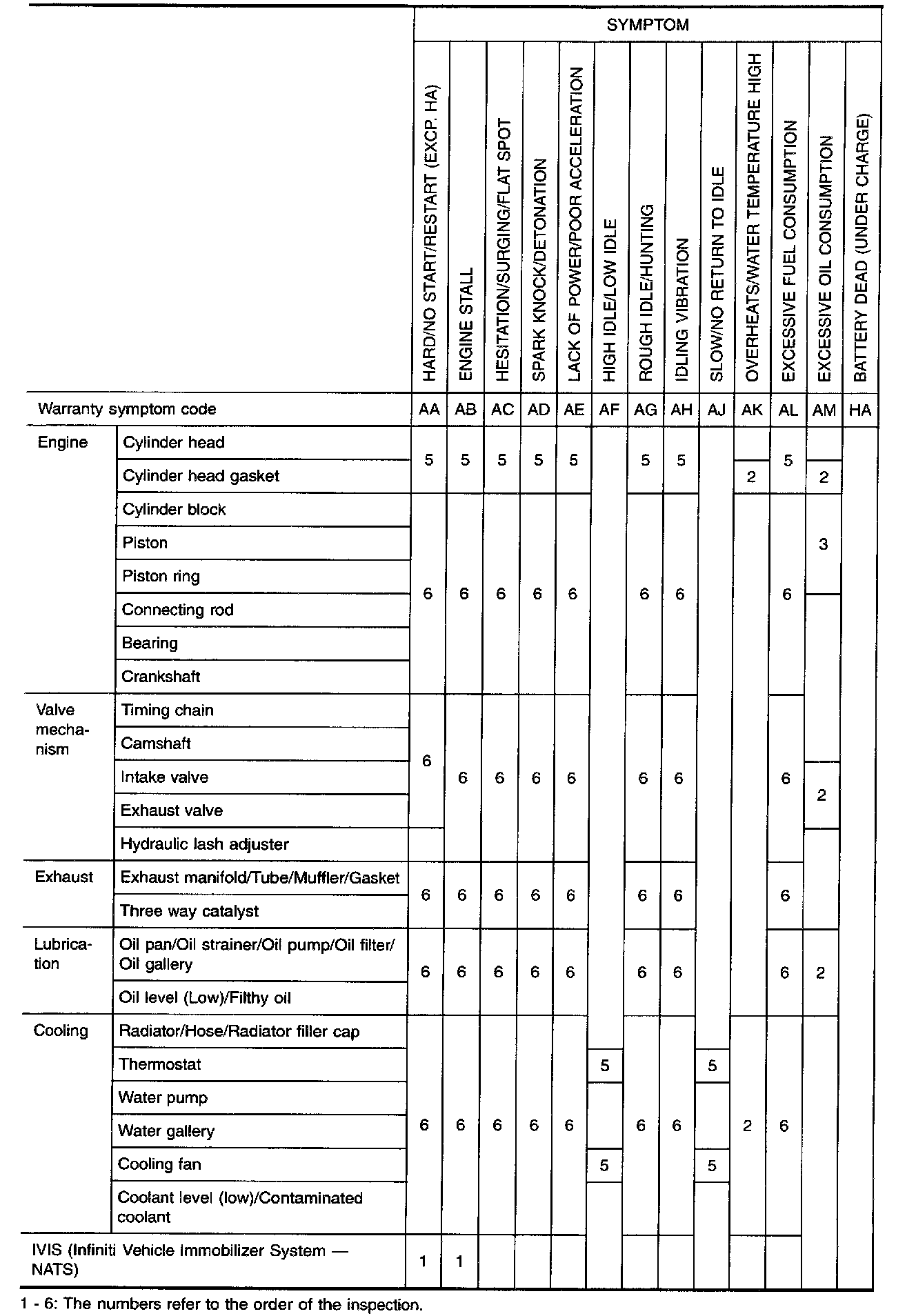

Engine Mechanical and Others (Part 2 Of 2):
