Pinout Values and Diagnostic Parameters

PREPARATION








- Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".

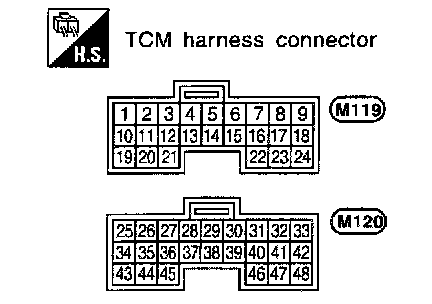

TCM HARNESS CONNECTOR TERMINAL LAYOUT
TCM INSPECTION TABLE
(Data are reference values.)

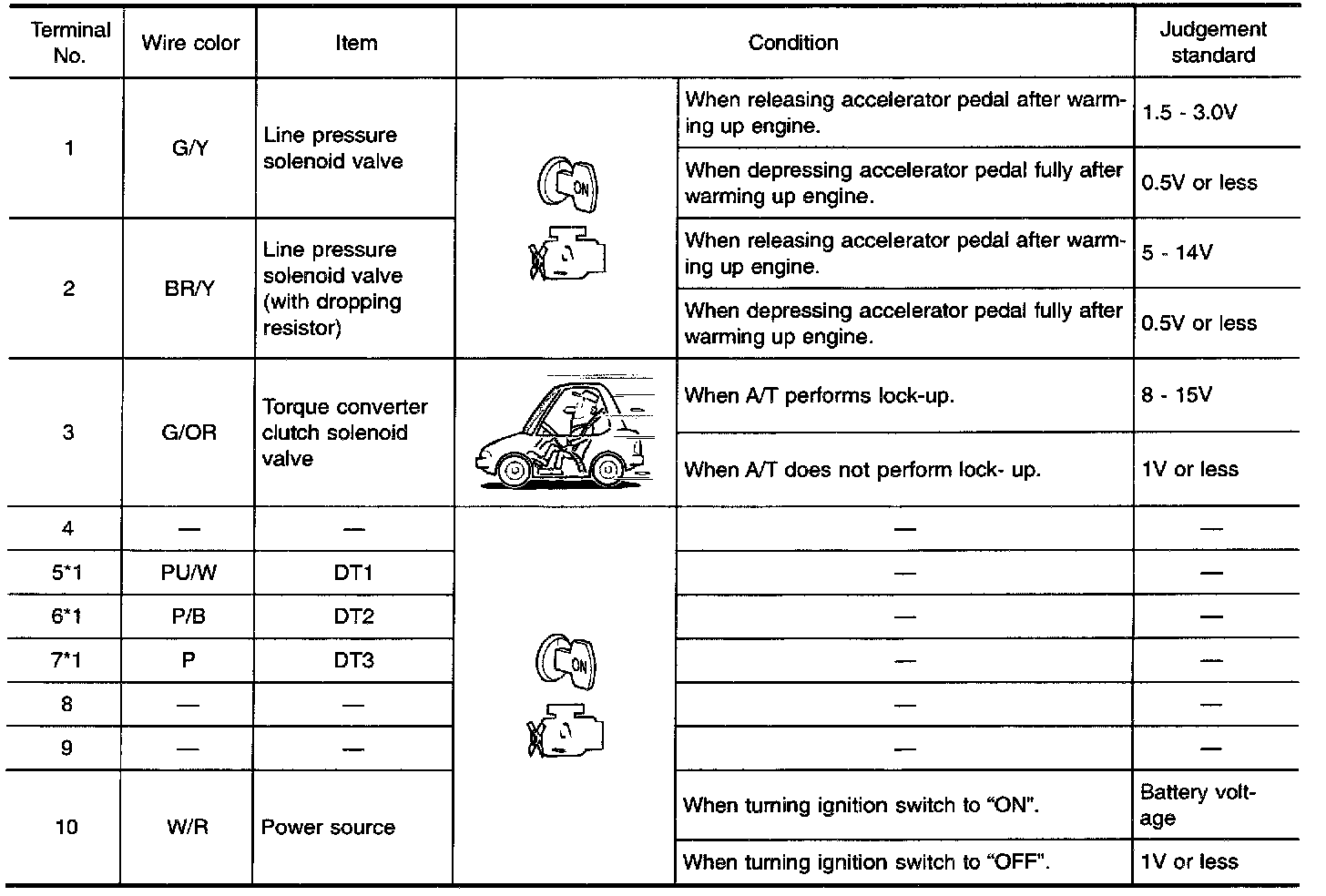

Part 1 of 4

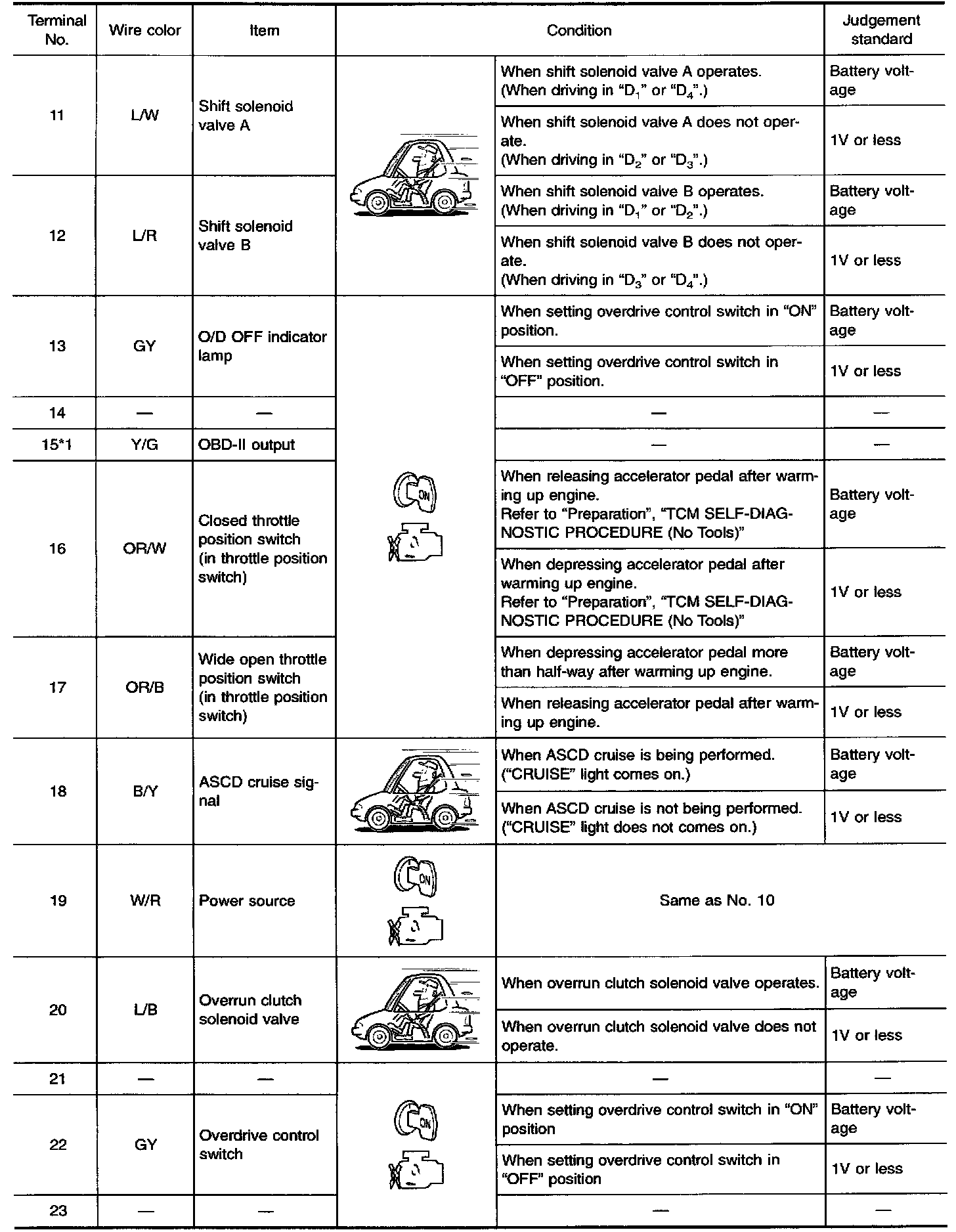

Part 2 of 4

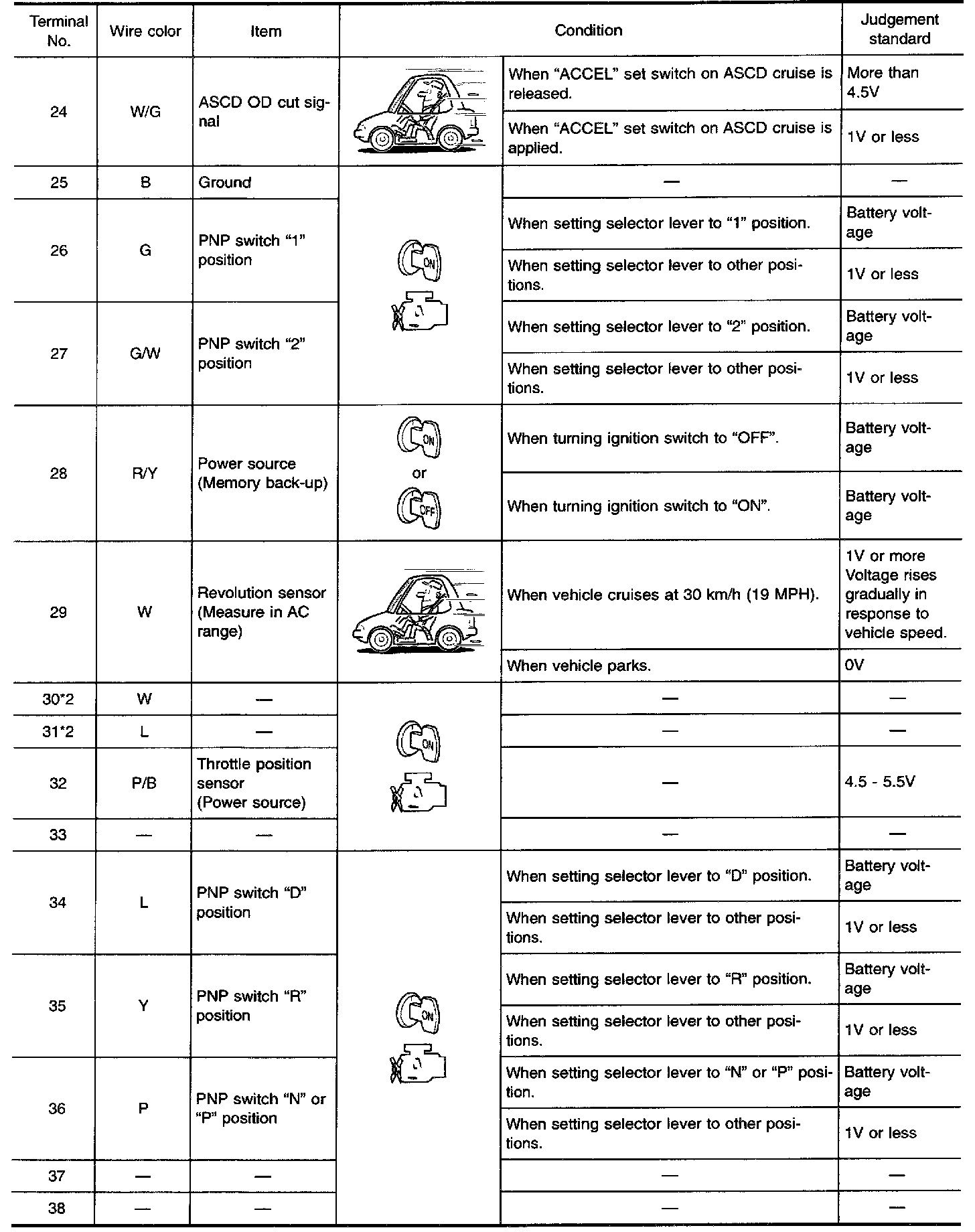

Part 3 of 4

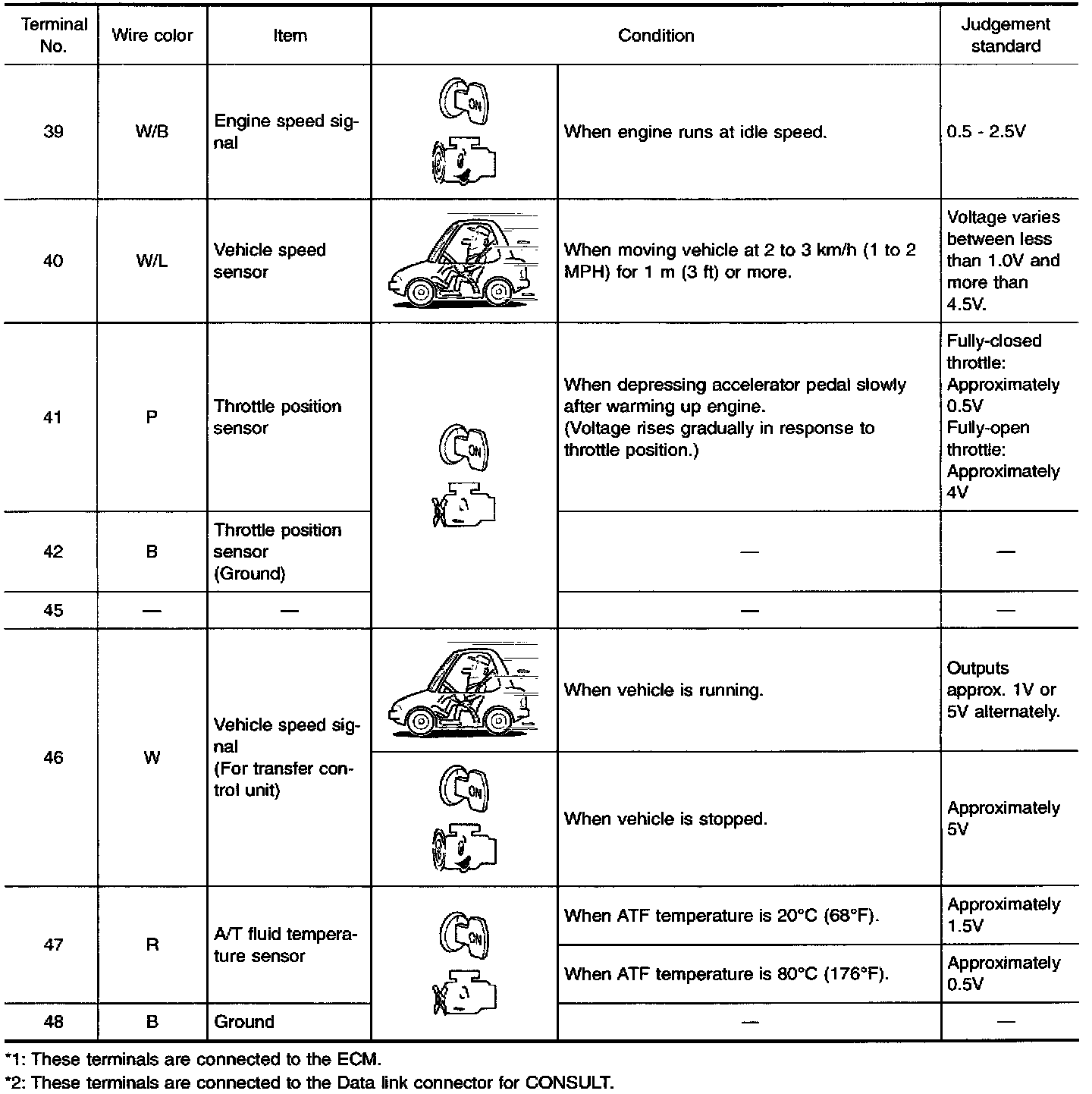

Part 4 of 4
