Cellular Phone: Service and Repair
Removal and Installation of TEL Adapter UnitREMOVAL
1. Remove instrument passenger lower panel. Refer to "INSTRUMENT PANEL ASSEMBLY".

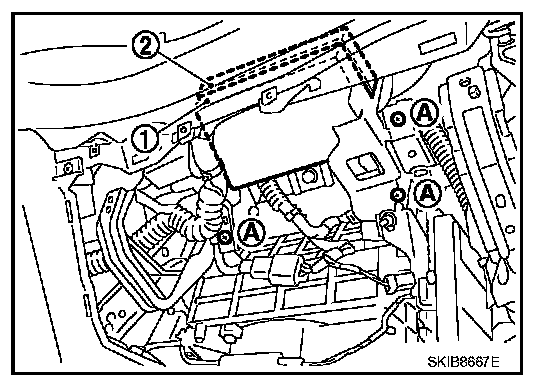

2. Remove screws (A) with power tool and remove display control unit (1)and TEL adapter unit (2).
3. Remove TEL adapter unit screws, display control unit screws, and remove brackets.
INSTALLATION
Installation is the reverse order of removal.
