Disassembly and Assembly

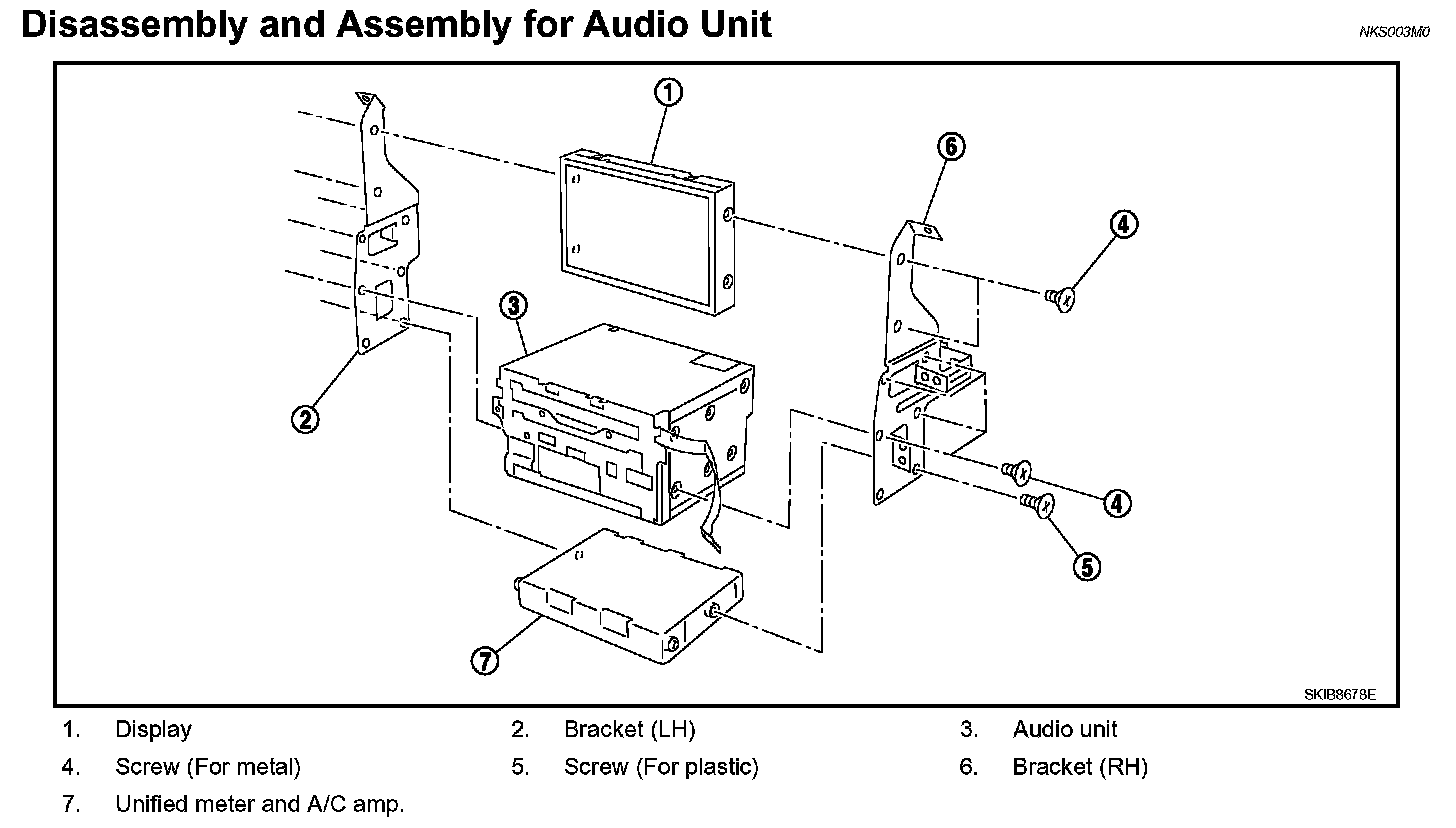

Disassembly and Assembly for Audio Unit

DISASSEMBLY
Remove audio unit screws (8) and display screws (4) and unified meter and A/C amp. screws (2) with power tool and remove brackets.

ASSEMBLY
Assembly is the reverse order of disassembly.

NOTE: Use appropriate screws for each, as screws for audio unit and display unit are different from that for unified meter and A/C amp.
