Cutting, Welding/Brazing Symbols
Cutting, Welding/Brazing Symbols

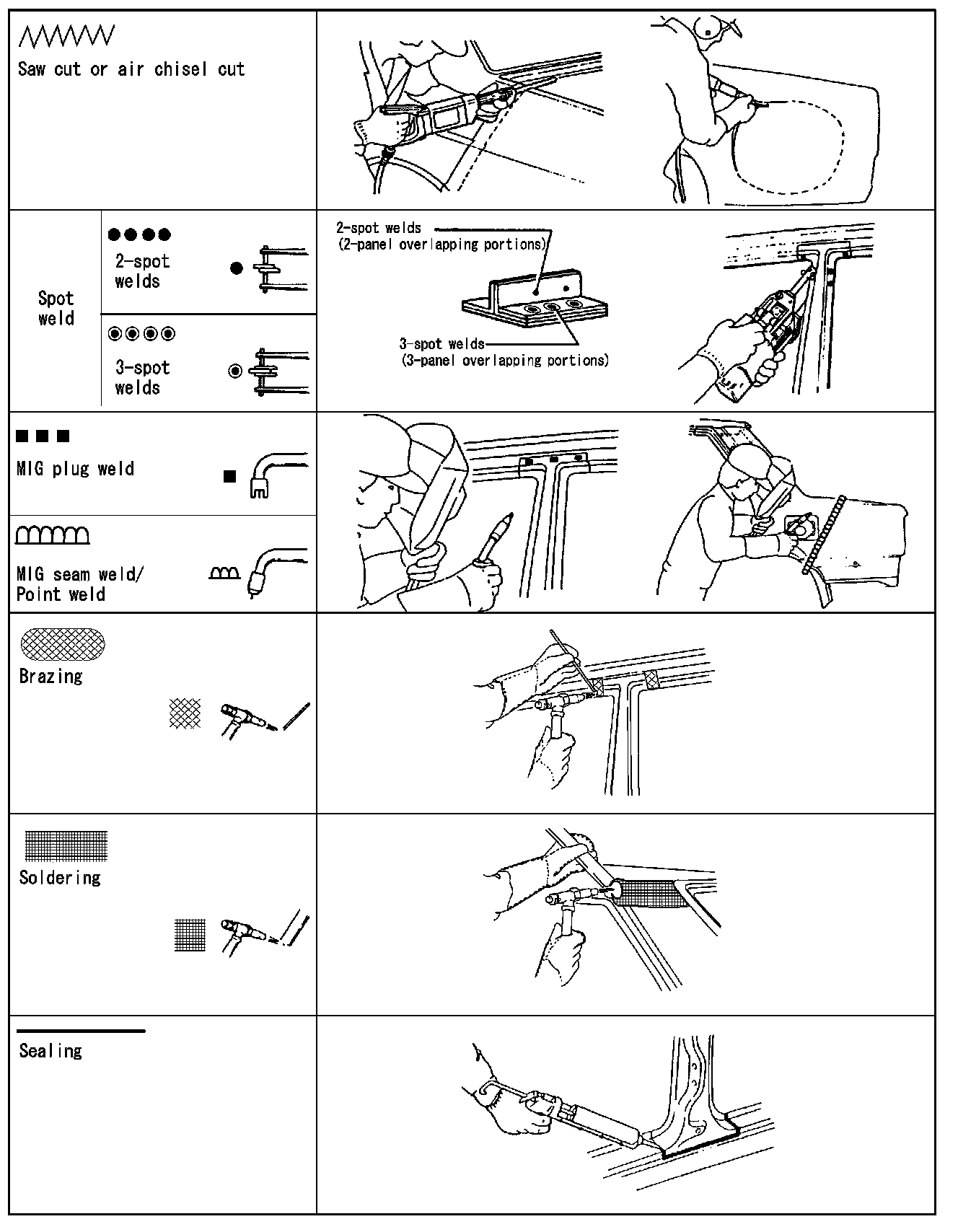

The symbols used for cutting and welding / brazing operations are shown.
