Home >> Infiniti Truck >> 2006 >> FX45 AWD V8-4.5L (VK45DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp >> Interior Room Lamp Schematic

Interior Room Lamp Schematic

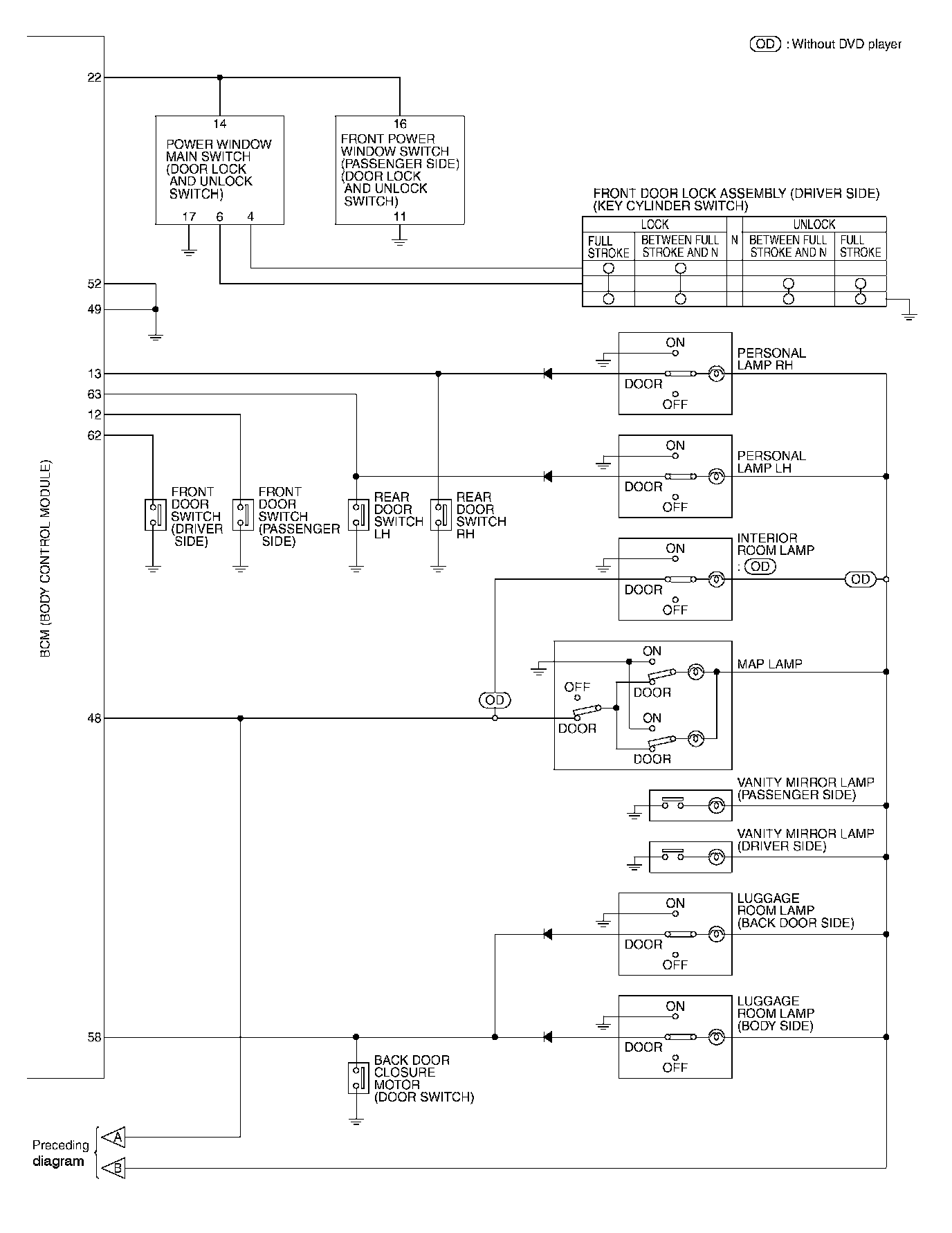

Interior Room Lamp Schematic (Part 1):

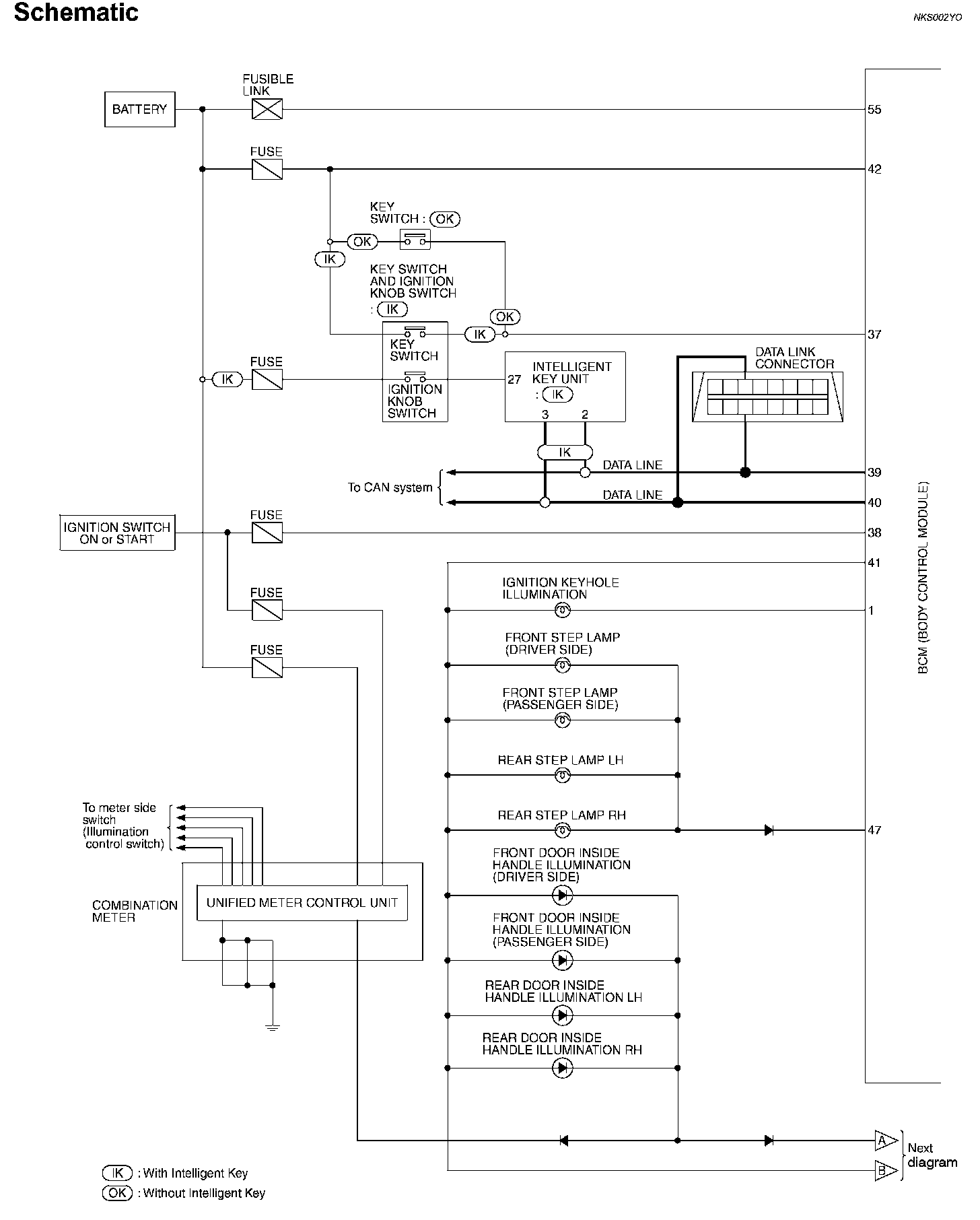

Interior Room Lamp Schematic (Part 2):
