Power Door Lock System Schematic
Power Door Lock System Schematic

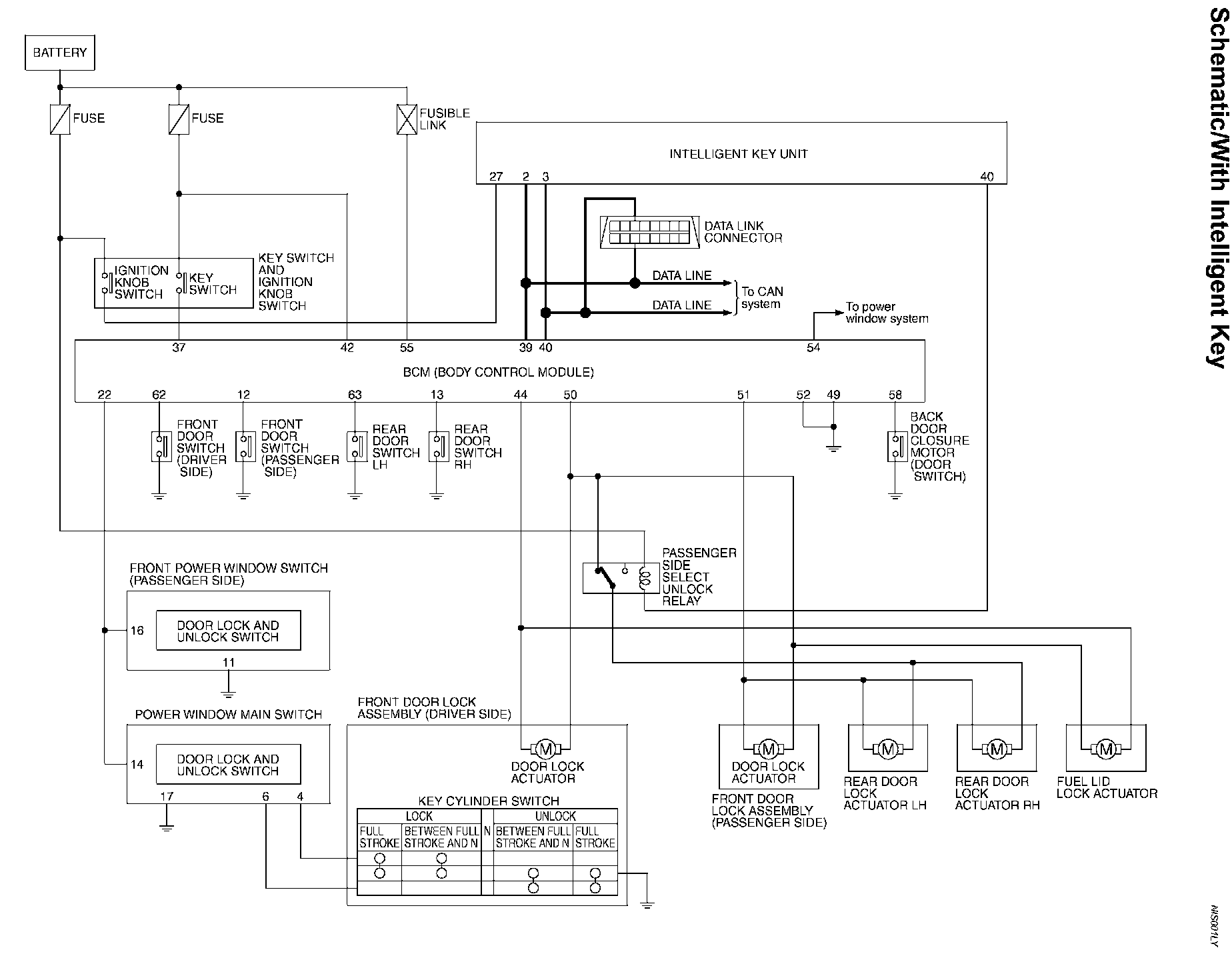

Power Door Lock System Schematic (With Intelligent Key):
Power Door Lock System Schematic (Without Intelligent Key):
