Air Duct: Service and Repair

DUCTS AND GRILLES

Removal and Installation




REMOVAL

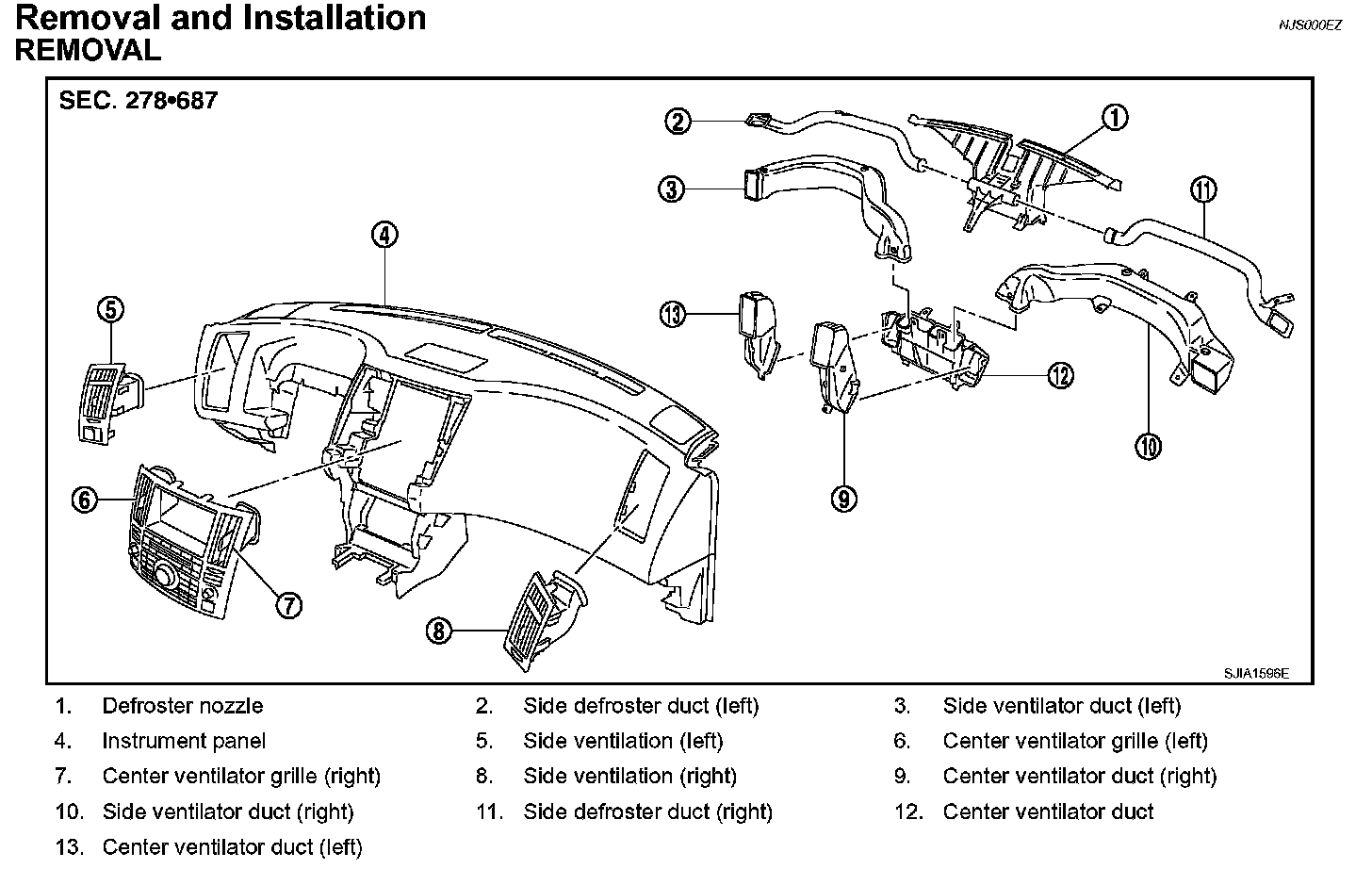

Removal of Center Ventilator Grilles
1. Remove cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY".

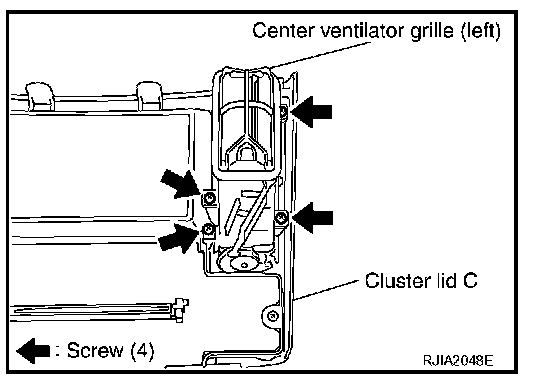

2. Remove mounting screws, and then remove center ventilator grilles.

Removal of Side Ventilation
Remove side ventilation. Refer to "INSTRUMENT PANEL ASSEMBLY".

Removal of Rear Ventilator Grilles
1. Remove center pillar lower garnish. Refer to "INSTRUMENT PANEL ASSEMBLY".

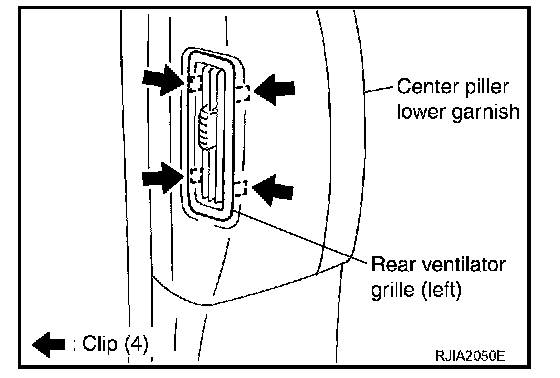

2. Remove mounting clips, and then remove rear ventilator grilles.

Removal of Defroster Nozzle, Ducts and Ventilator Ducts
1. Remove instrument panel assembly.

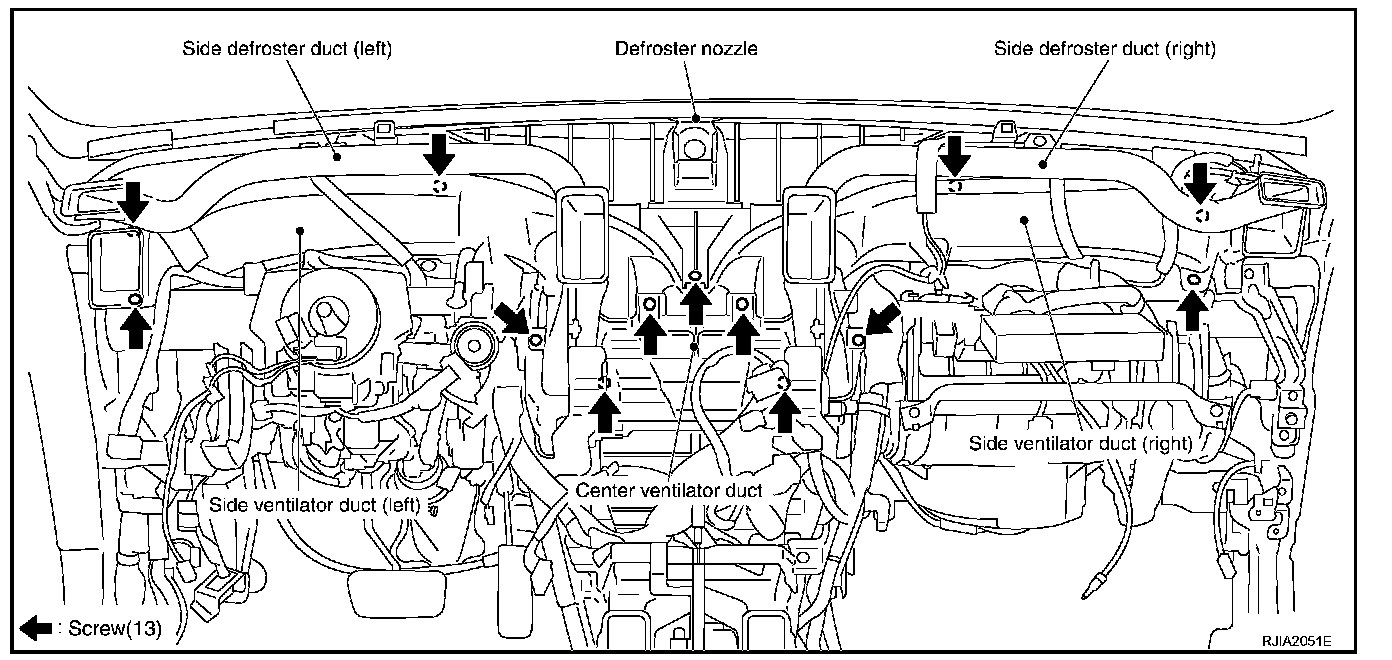

2. Remove mounting screws, and then remove side defroster ducts.
3. Remove mounting screws, and then remove defroster nozzle.
4. Remove mounting screws, and then remove side ventilator ducts (right and left).
5. Remove mounting screws, and then remove center ventilator duct.

Removal of Rear Ventilator Ducts
1. Remove center console. Refer to "INSTRUMENT PANEL ASSEMBLY".




2. Slide rear ventilator duct 2 toward vehicle front, and then remove it.
3. Remove floor carpet. Refer to "FLOOR TRIM".

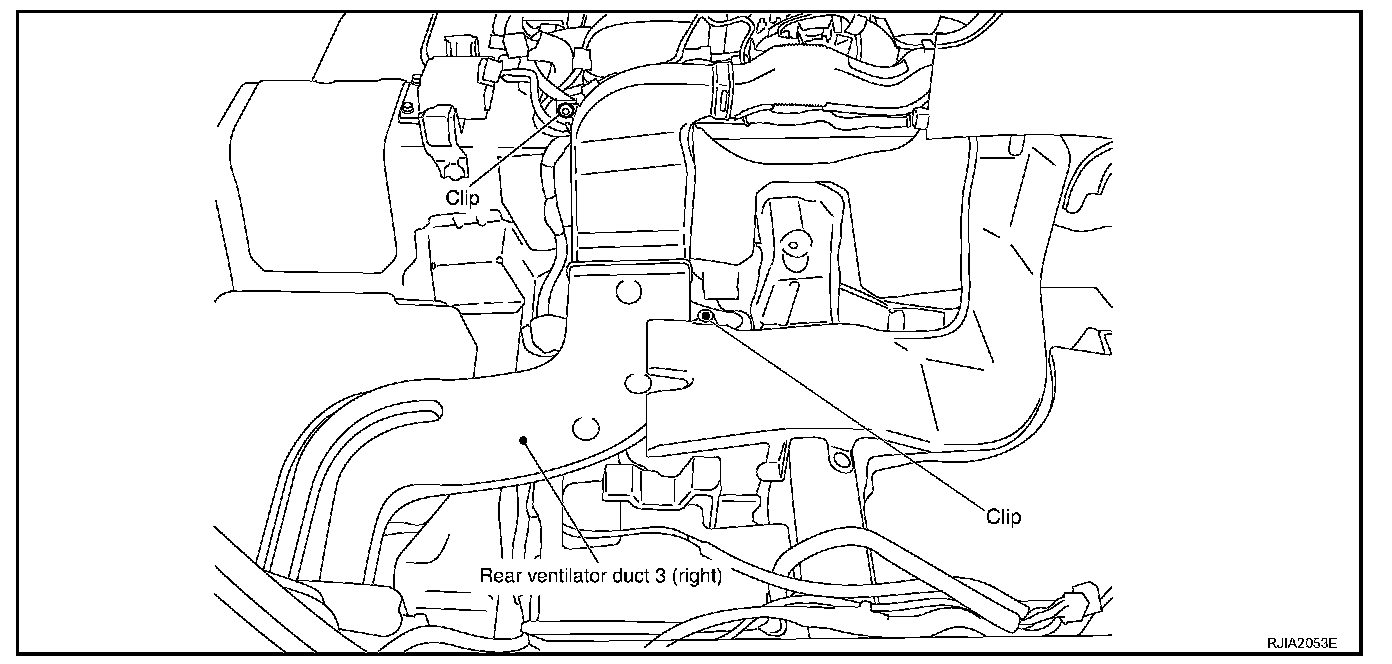

4. Remove mounting clips, and then remove rear ventilator duct 3.
5. Remove instrument panel assembly.

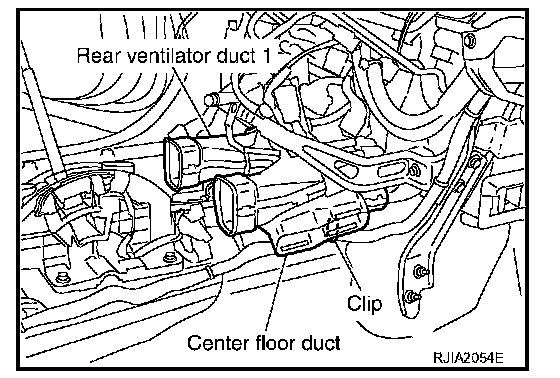

6. Remove rear ventilator duct 1 with center floor duct attached.
7. Remove rear ventilator duct 1 from center floor duct.

Removal of Foot Ducts
1. Remove heater & cooling unit assembly.

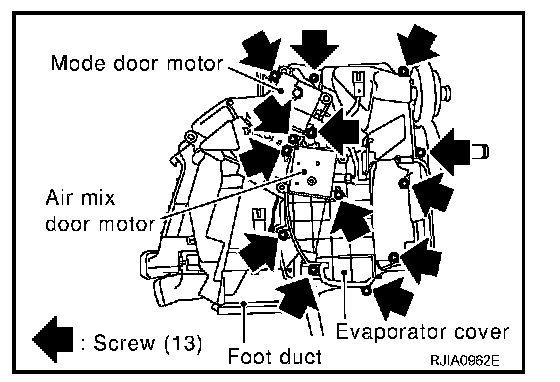

2. Remove mounting screws, and then remove air mix door motor (right), mode door motor, evaporator cover and foot duct (right).
3. Remove foot duct (left).

Removal of Floor Ducts
1. Remove floor carpet. Refer to "FLOOR TRIM".

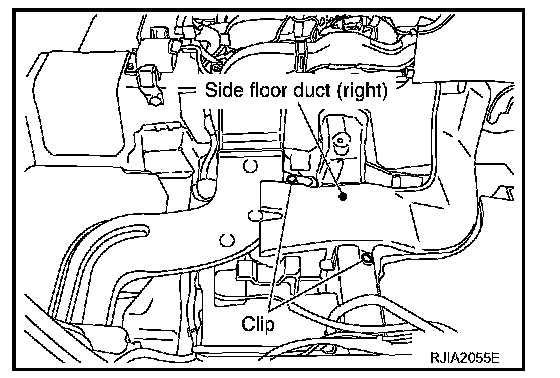

2. Remove mounting clips, and then remove side floor ducts.
3. Remove instrument panel assembly.

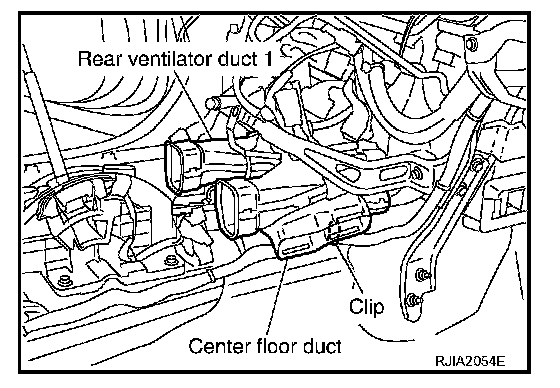

4. Remove mounting clip, and then remove center floor duct with rear ventilator duct 1 attached.
5. Remove center floor duct from rear ventilator duct 1.

INSTALLATION
Installation is basically the reverse order of removal.
