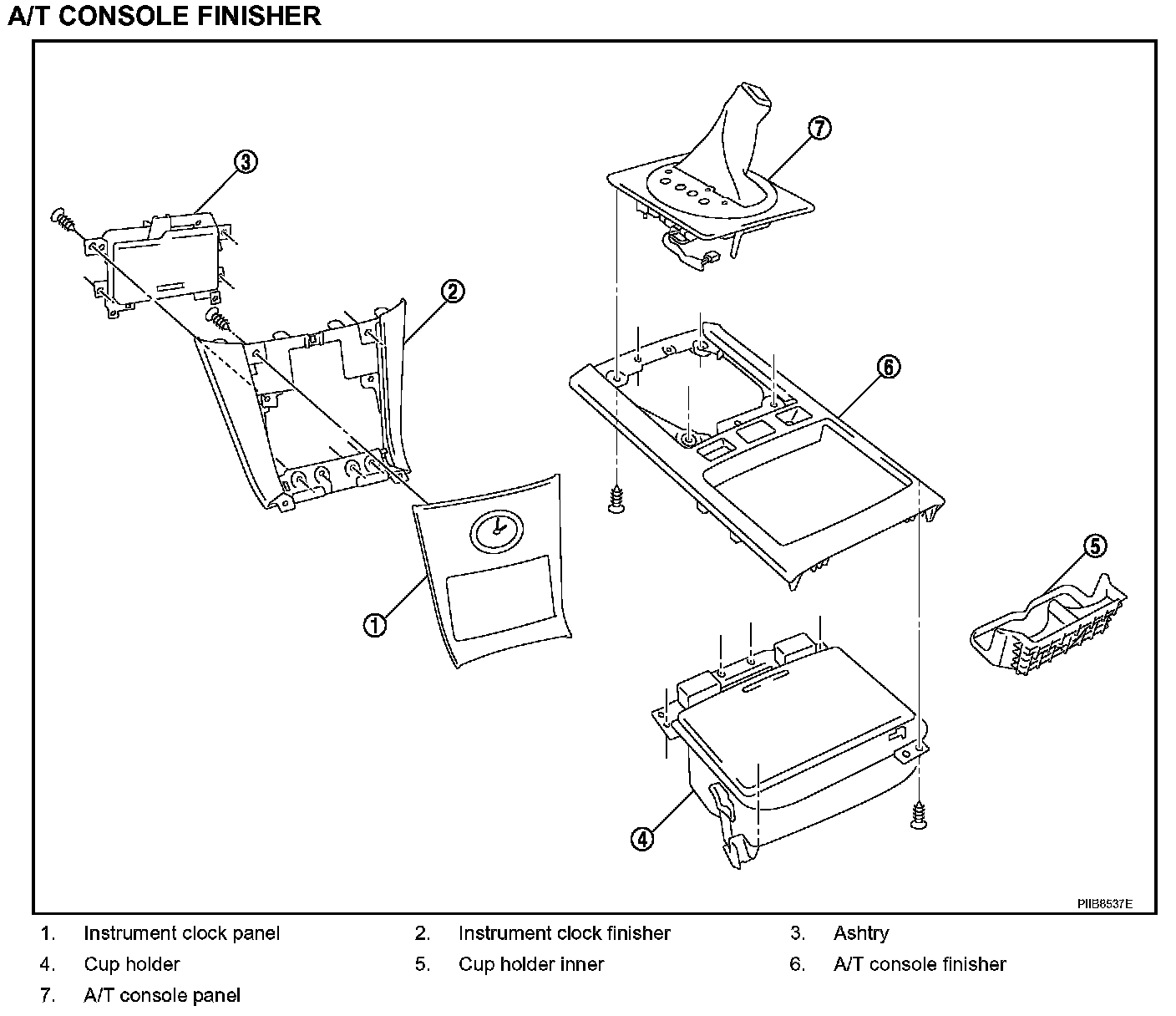

A/T CONSOLE FINISHER

Disassembly
1. Remove screws with power tool and remove instrument ashtray.
2. Remove screws with power tool and remove instrument clock panel.
3. Remove screws with power tool of back side and remove cup holder.
4. Remove screws of back side and remove position indicator plate.

Assembly
Assemble in the reverse order of disassembly.




CENTER CONSOLE

Disassembly
1. Insert a remover into side between gaps console rear finisher and pull back to your side, and disconnect pawls below.
2. Disconnect harness connector and remove console rear finisher.
3. Insert a remover into side between gaps of console mask and pull back to your side.
4. Remove screws with power tool and remove console lid.
5. Remove screws fixing DVD player with power tool.
6. Disconnect harness connectors, and remove DVD player.

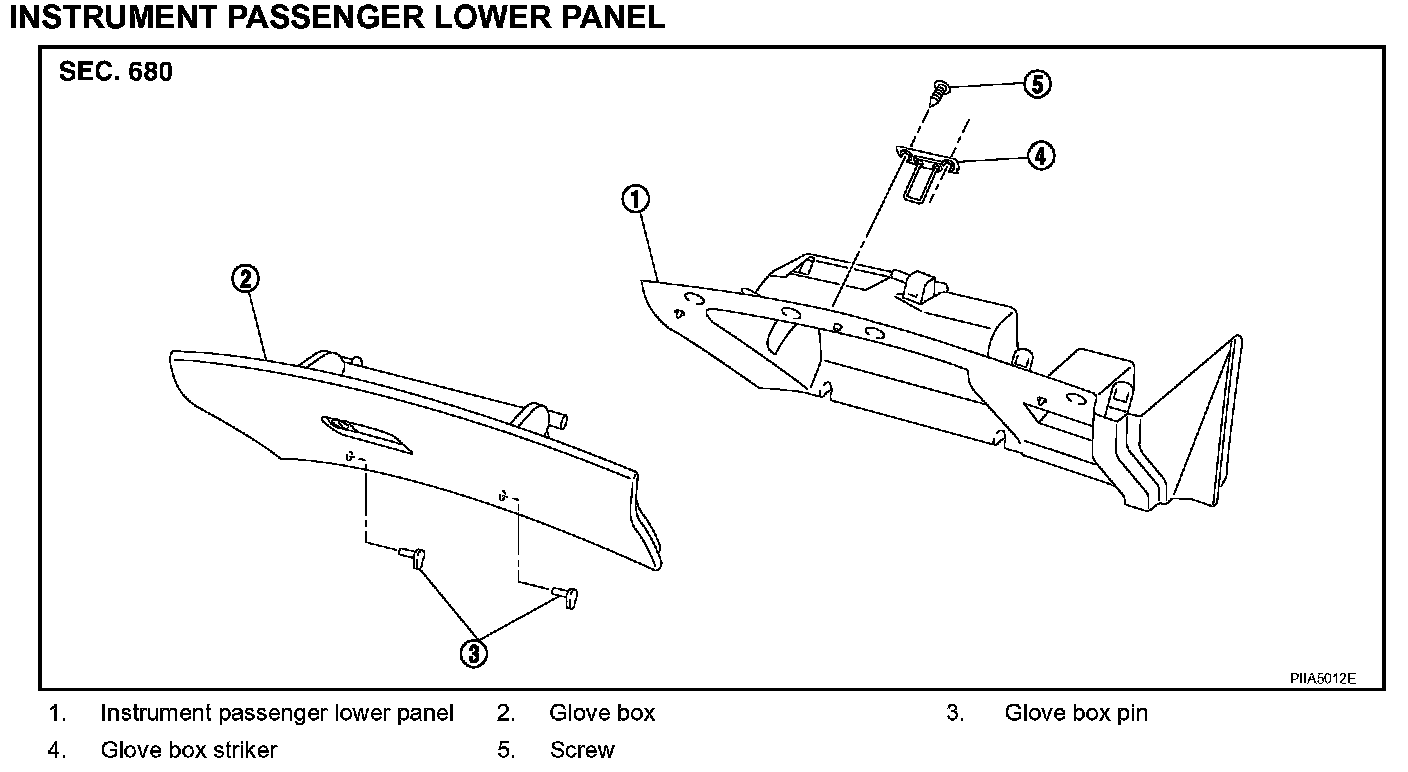

INSTRUMENT PASSENGER LOWER PANEL

Disassembly




1. Detach the damper from glove box assembly right side.
2. Remove glove box pins and remove glove box assembly.

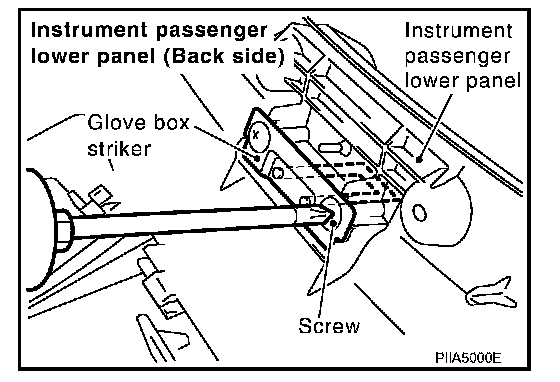

3. Remove screws with power tool and remove glove box striker.

Assembly
Assemble in the reverse order of disassembly.
