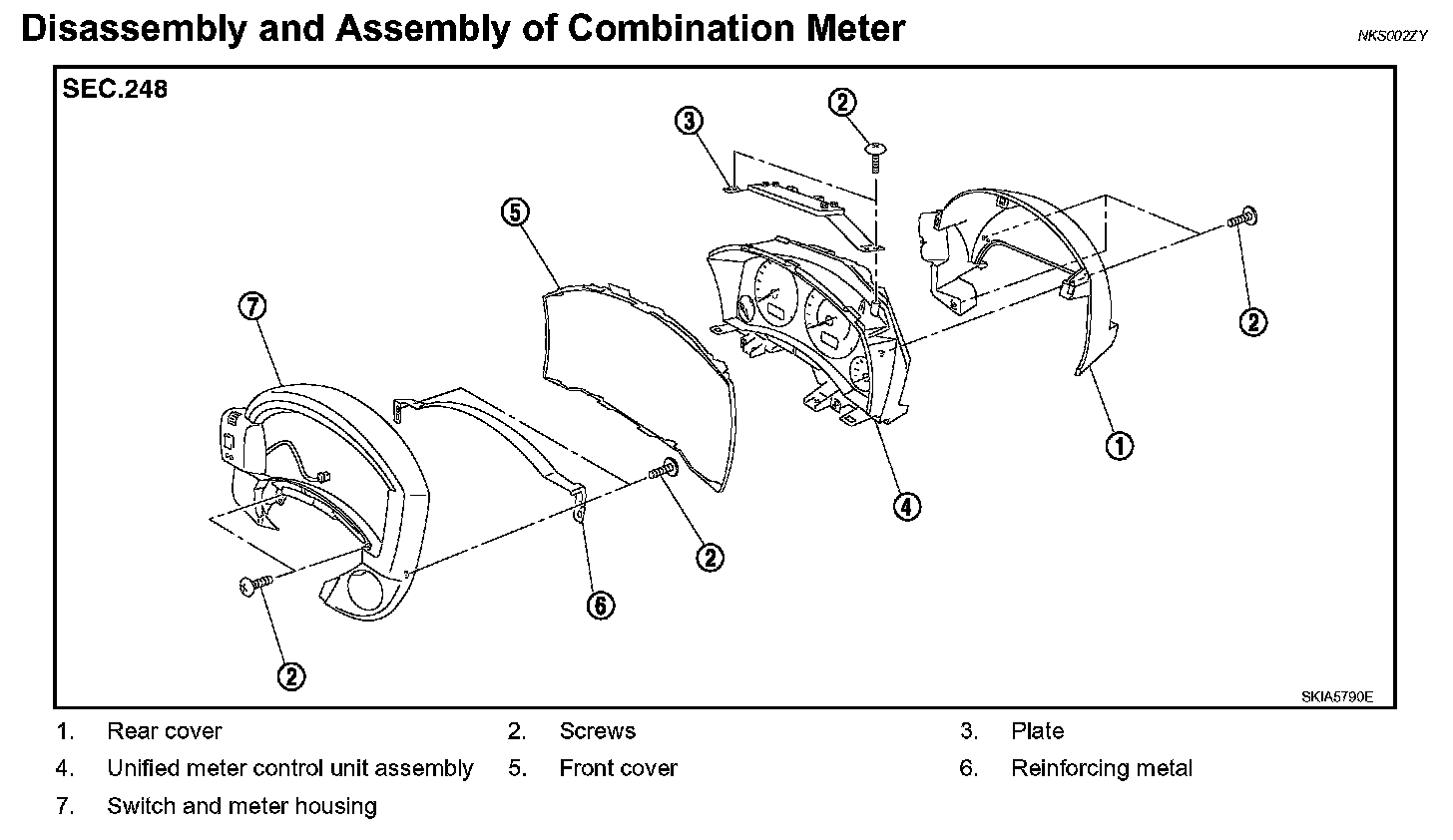

Disassembly and Assembly of Combination Meter

Disassembly and Assembly of Combination Meter

DISASSEMBLY

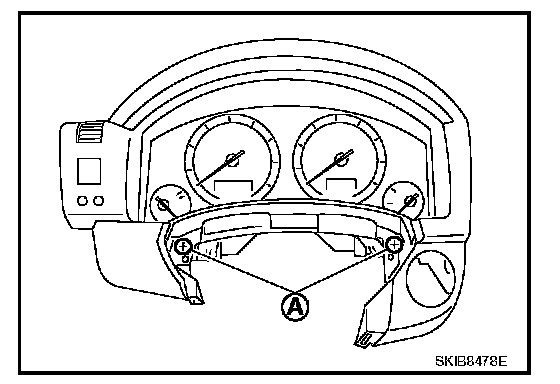

1. Remove screws (A) and remove rear cover (1).
2. Disconnect odo/trip meter and illumination control switch connector (2).




3. Remove screws (A).




4. Remove tabs (A) and remove switch and meter housing (1).




5. Remove screws (A) and remove reinforcing metal (1).




6. Remove screws (A) and remove plate (1).




7. Disengage tabs (A) to separate front cover (1).

ASSEMBLY
Assembly is the reverse order of disassembly.
