P0460
P0460 FUEL LEVEL SENSORDescription
The fuel level sensor is mounted in the fuel level sensor unit.
The sensor detects a fuel level in the fuel tank and transmits a signal to the "unified meter and A/C amp.". The "unified meter and A/C amp." sends the fuel level sensor signal to the ECM through CAN communication line. It consists of two parts, one is mechanical float and the other is variable resistor. Fuel level sensor output voltage` changes depending on the movement of the fuel mechanical float.
DTC Logic
DTC DETECTION LOGIC
NOTE:
- If DTC P0460 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000, U1001.Refer to EC-136, "DTC Logic". U1000
- If DTC P0460 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer to EC-338, "DTC Logic". P0607
When the vehicle is parked, naturally the fuel level in the fuel tank is stable. It means that output signal of the fuel level sensor does not change. If ECM senses sloshing signal from the sensor, fuel level sensor malfunction is detected.
DTC CONFIRMATION PROCEDURE
Step 1-2:

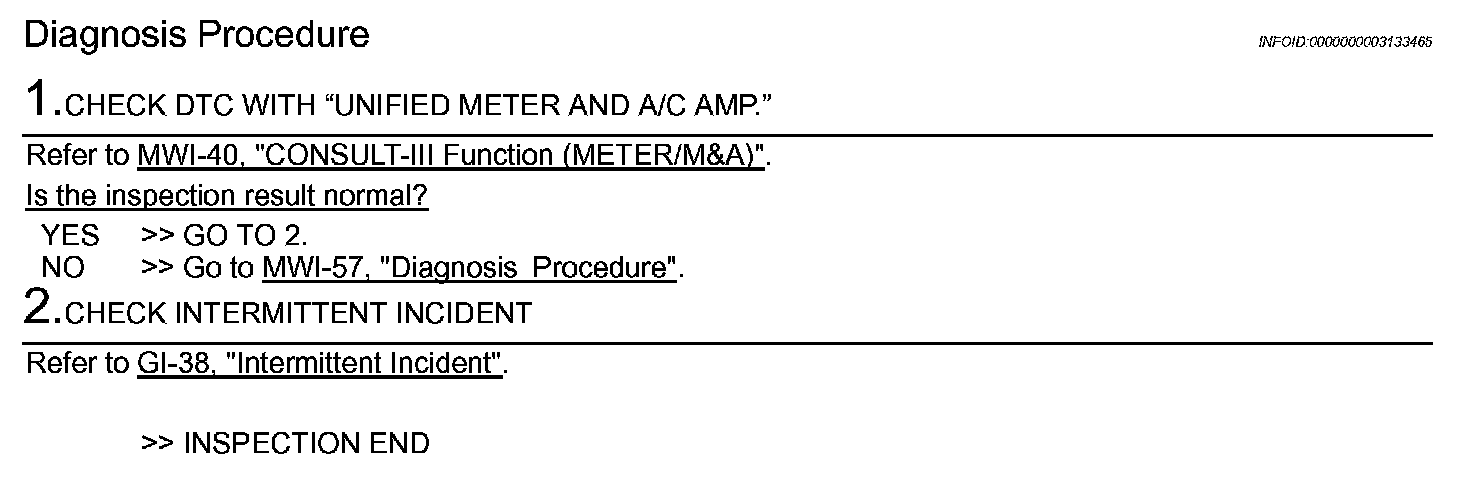

Diagnosis Procedure
