AUX Image Signal Circuit
AUX IMAGE SIGNAL CIRCUITDescription
- Transmits the image signal of AUX device from auxiliary input jacks to AV control unit.
- AV control unit transmits the image signal that is inputted to the display unit.

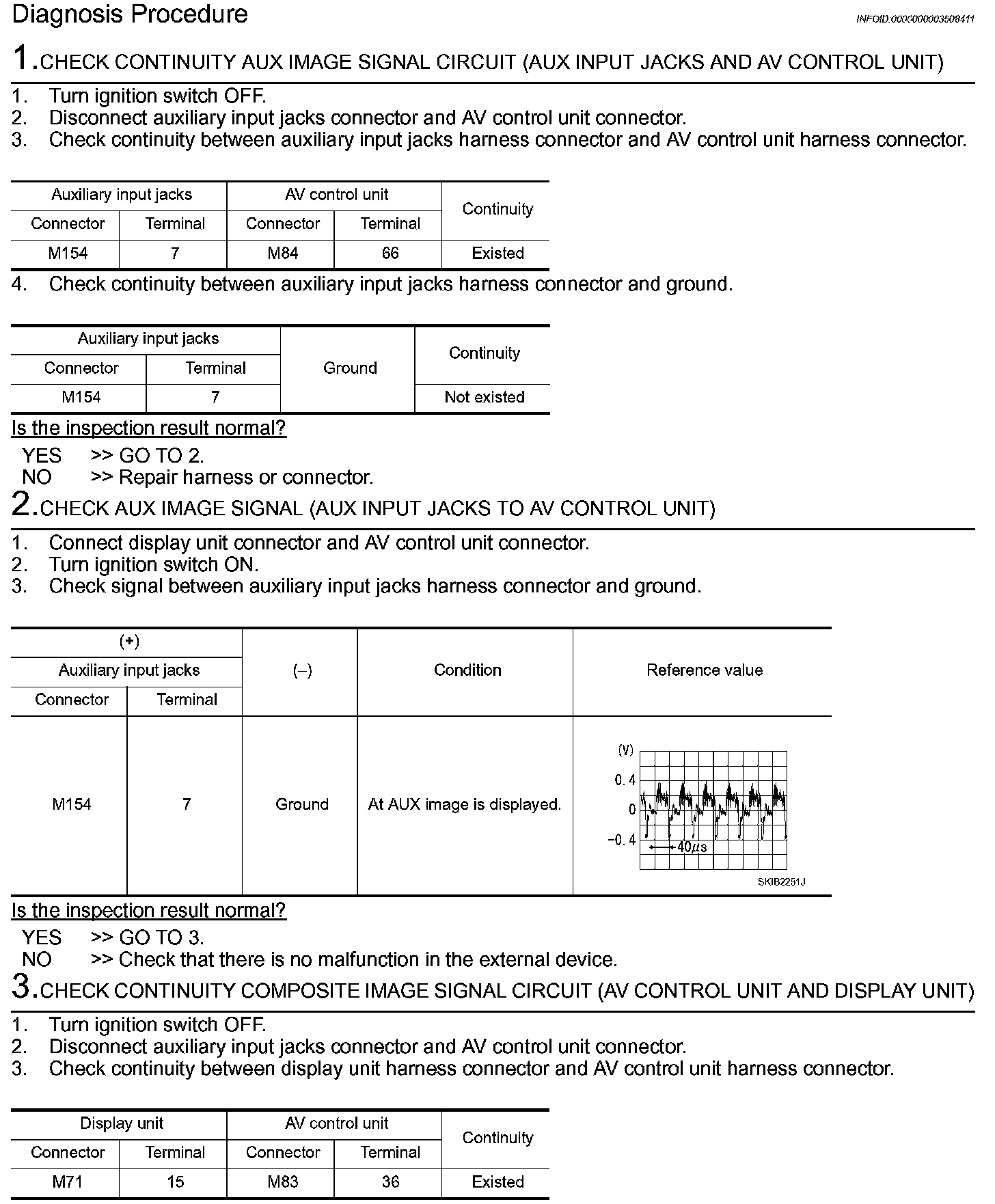

Diagnosis Procedure
Step 1-3:
Step 3 (Continued)-4:
