Console: Service and Repair

CENTER CONSOLE ASSEMBLY

Exploded View

IP-22 Exploded View:

Removal and Installation

REMOVAL
1. Put selector lever in drive position.
2. Remove selector lever knob.




3. Remove console finisher assembly.
- Pull console finisher (1), upward to disengage from center console.
- Disconnect harness connectors.




4. Disconnect console sub harness connectors (A).
5. Remove center console fixing screws (B).
6. Put front seat to front must position.




7. Remove console rear finisher.
- Pull back the console rear finisher (1) with remover tool (A).
- Disconnect inside key antenna connector.




8. Remove rear ventilator duct (1).
9. Remove center console fixing screws (A).
10. Remove center console assembly.
- Lift up center console assembly back side.
- Disconnect harness connectors.

INSTALLATION
Install in the reverse order of removal.

Disassembly and Assembly

DISASSEMBLY
1. Remove console lid assembly.
- Open the console lid.

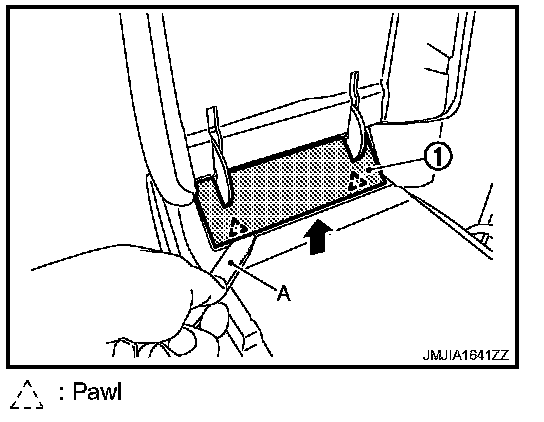

- Remove console mask (1) fixing pawls with remover tool (A).




- Remove console lid assembly (1) fixing screws (A), and then remove console lid assembly.

2. Remove console pocket.
3. Reverse a center console assembly.




4. Remove console sub harness.
- Remove console sub harness (1) fixing screws (A).
- Remove console sub harness fixing clip (B).
- Disconnect switch connectors.




5. Remove switch panel.
- Remove switch panel (1) fixing screws (A).
- Pull back switch panel.




6. Remove console pad LH.
- Remove console pad LH (1) fixing screws (A).
- Pull the console pad LH crosswise.




7. Remove console pad RH.
- Remove console pad RH (1) fixing screws (A).
- Pull the console pad RH crosswise.




8. Remove console center bracket.
- Remove console center bracket (1) fixing screws (A).
- Pull up console center bracket.




9. Remove console upper bracket.
- Remove console upper bracket (1) fixing screws (A).
- Pull up console upper bracket.




10. Remove cup holder assembly.
- Remove cup holder assembly (1) fixing screws (A).
- Pull up cup holder assembly.




11. Remove power outlet (1).
12. Remove auxiliary input jacks (2).
13. Remove ipod connector (3).




14. Remove console finisher.
- Disengage pawls while pulling console finisher (1).
- Pull up console finisher.

ASSEMBLY
Assemble in the reverse order of disassembly.
