Seat Memory Switch
SEAT MEMORY SWITCHDescription
Memory switch is equipped on the seat set switch and seat memory switch installed to the driver side door trim. The operation signal is inputted to the automatic drive positioner control unit when the set switch or memory switch is operated.
Component Function Check
Step 1:

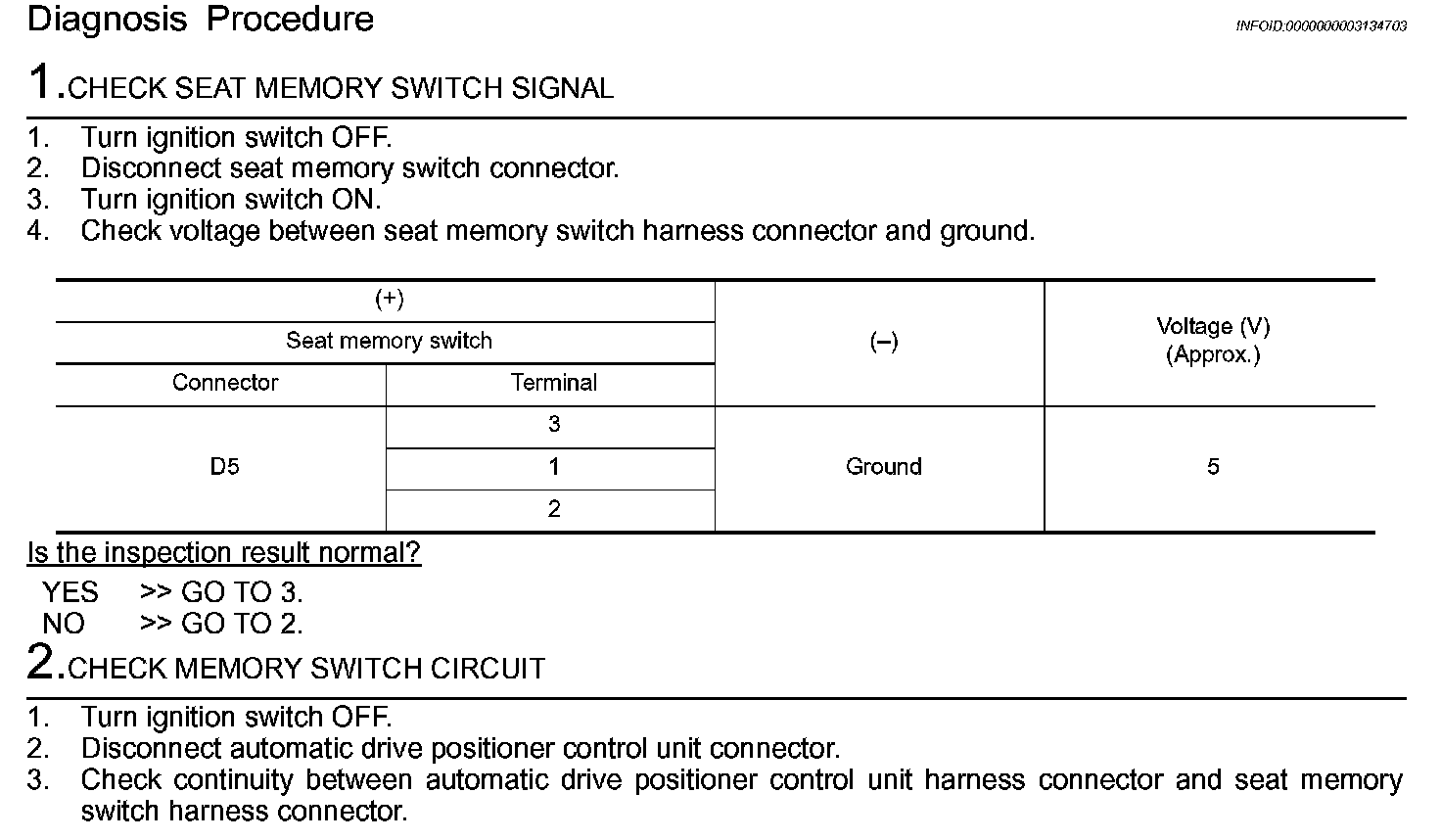

Diagnosis Procedure
Step 1-2:
Step 2 (Continued)-5:
Component Inspection
Step 1:
Step 1 (Continued):
