Rear Wiper Motor Circuit

REAR WIPER MOTOR CIRCUIT

Component Function Check

Step 1:

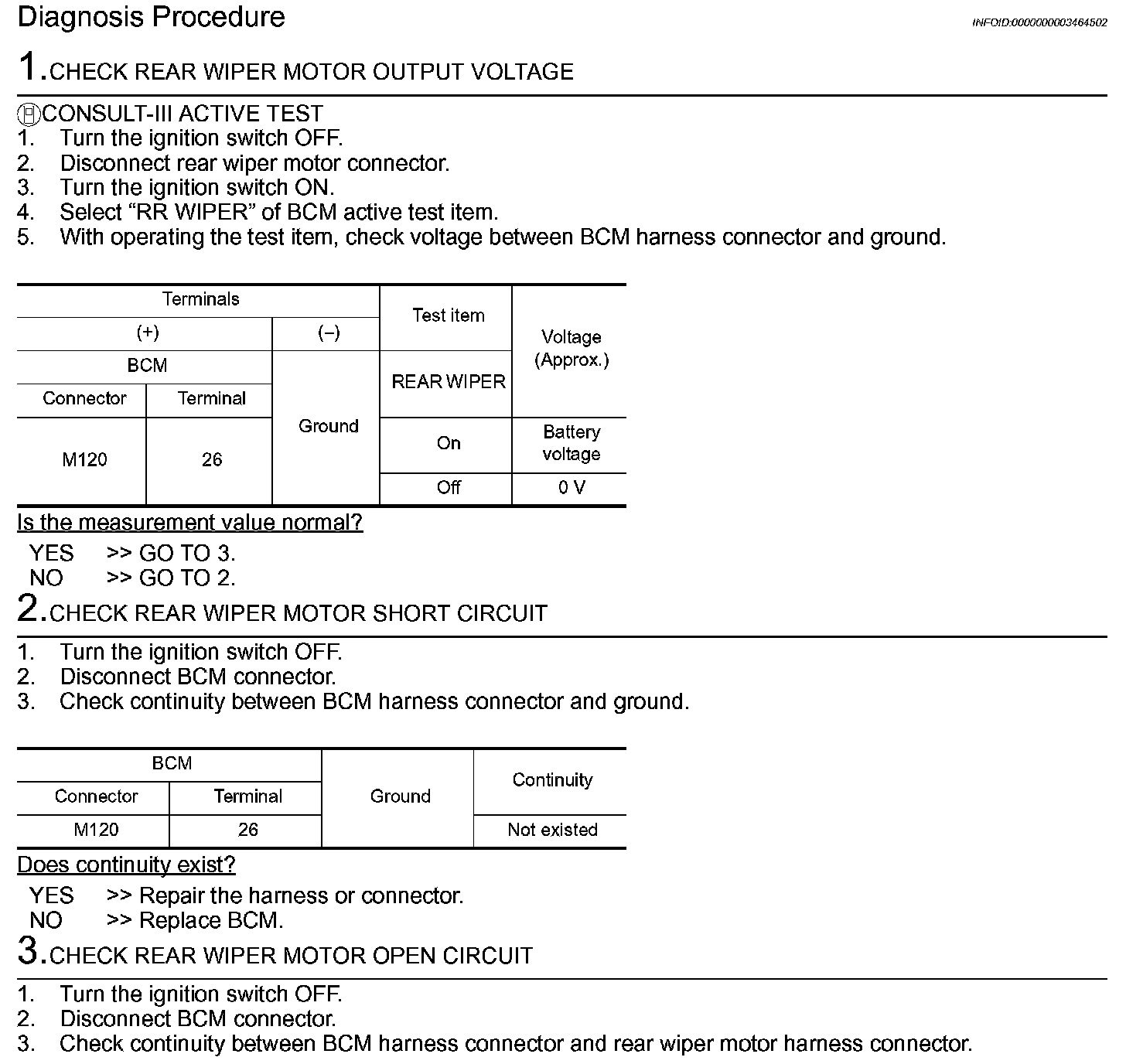

Diagnosis Procedure

Step 1-3:




Step 3 (Continued)-4:
