Blower Motor: Service and Repair

BLOWER MOTOR

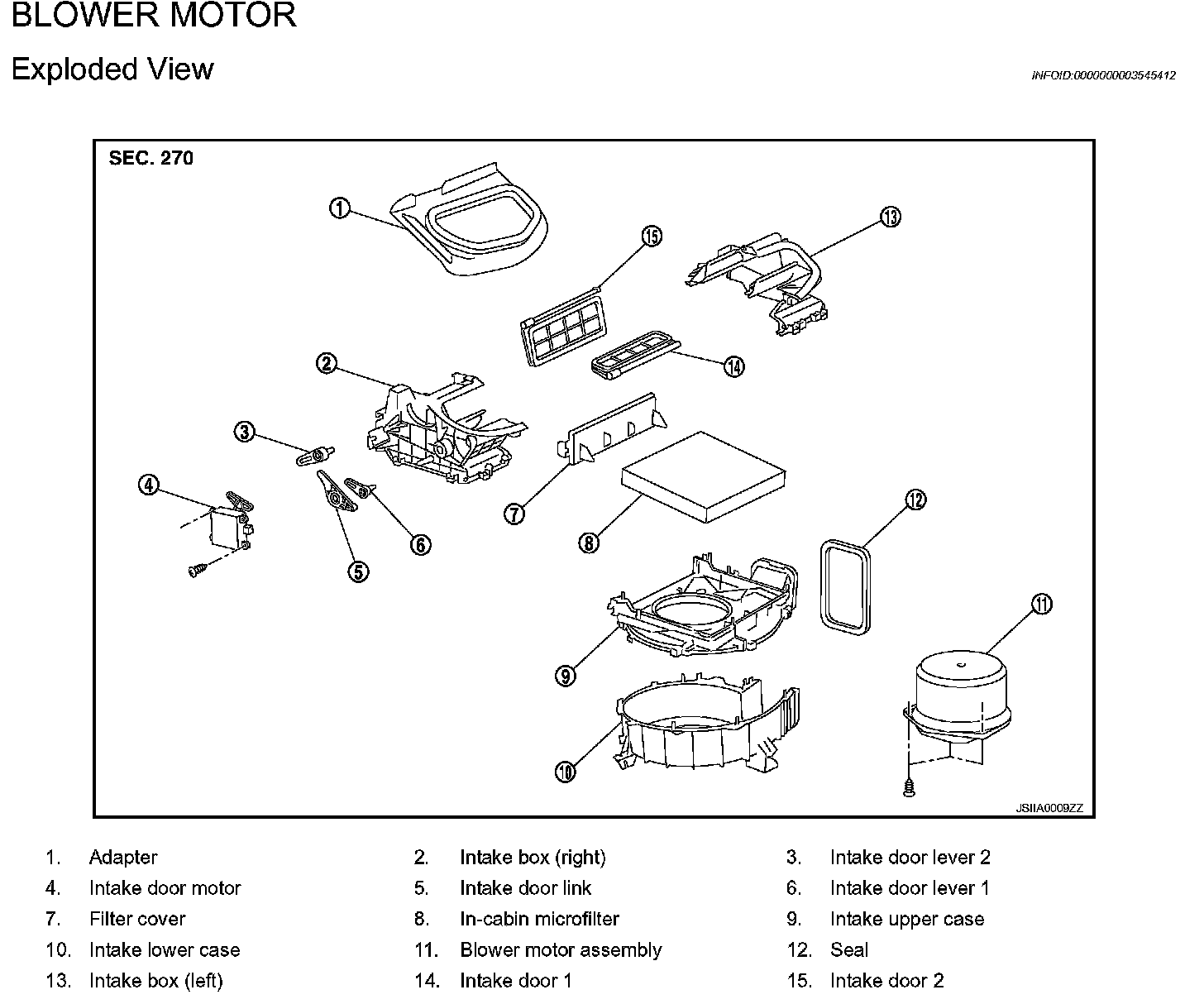

Exploded View

Removal and Installation

REMOVAL
1. Remove instrument lower cover.
2. Disconnect blower motor connector.

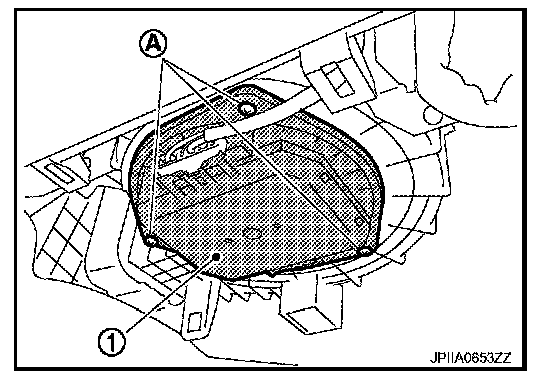

3. Remove mounting screws (A), and then remove blower motor (1).

INSTALLATION
Installation is basically the reverse order of removal.
