Clock: Service and Repair

CLOCK

Exploded View

DISASSEMBLY

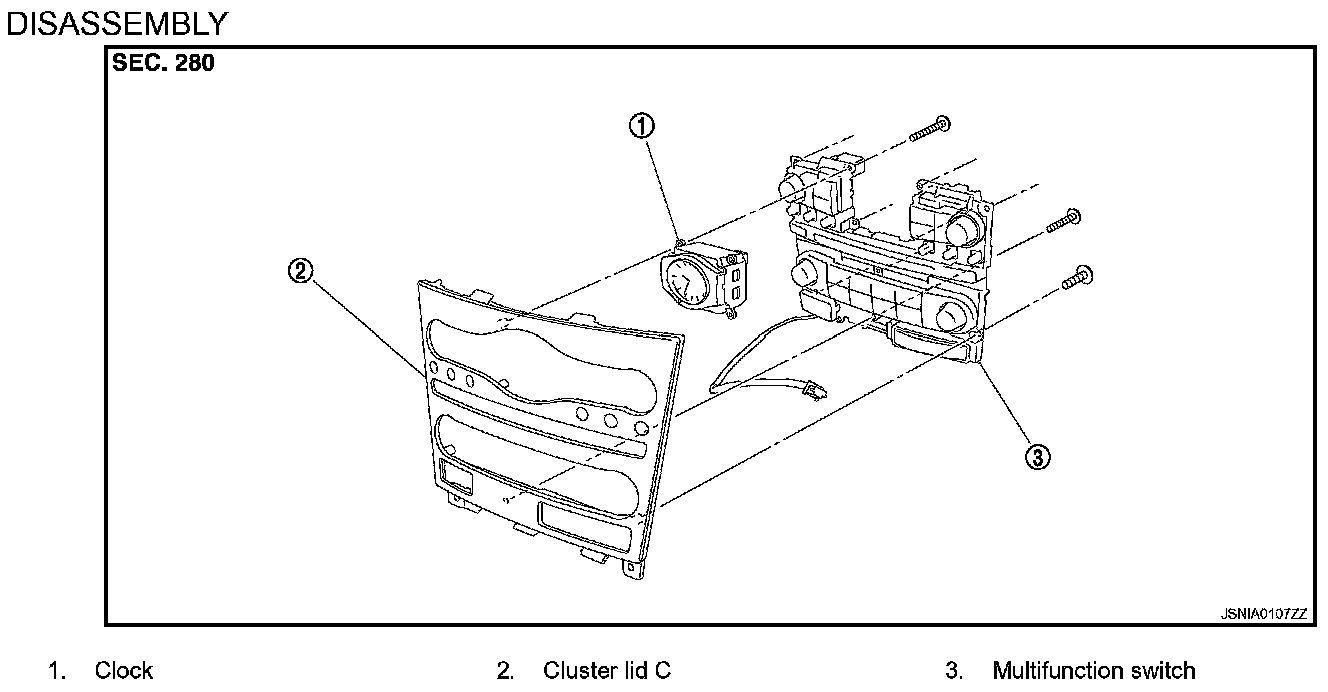

MWI-167 Exploded View:

Removal and Installation

REMOVAL
1. Remove cluster lid C assembly.

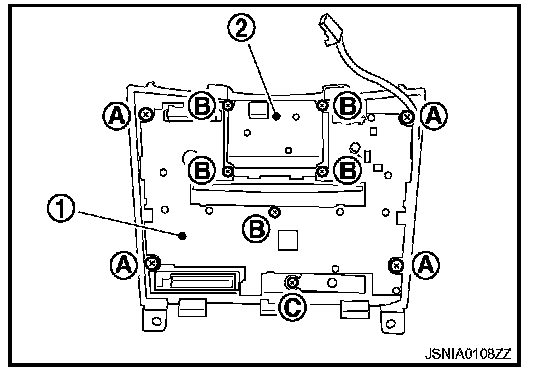

2. Remove screws (A), (B), (C) and remove clock (2) in conjunction with multifunction switch (1) from cluster lid C.
3. Disengage the tabs to separate clock (2).

INSTALLATION
Install in the reverse order of removal.

NOTE: Never confuse screws when installing.
