Windshield Washer Reservoir: Service and Repair

ON-VEHICLE REPAIR

WASHER TANK

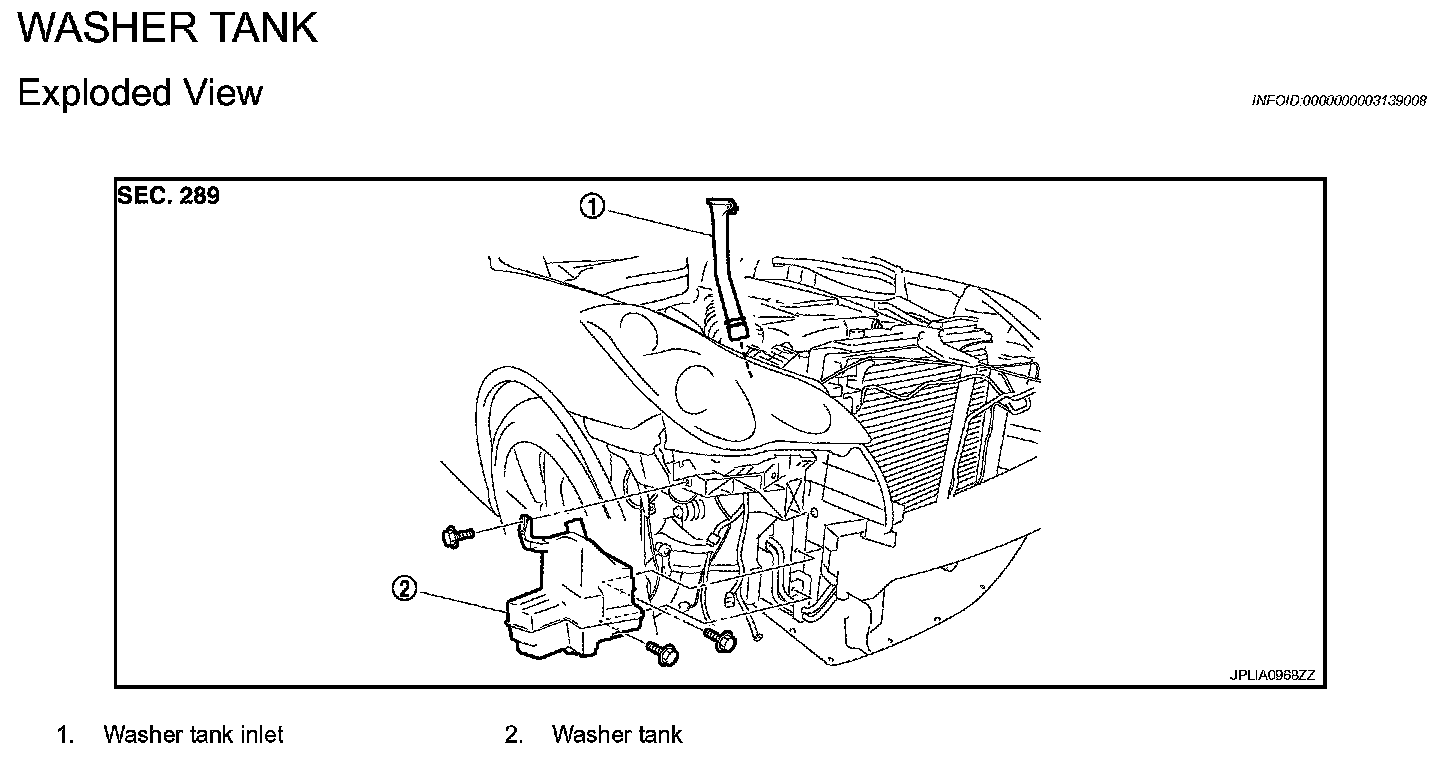

Exploded View

WW-100 Exploded View:

Removal and Installation

REMOVAL




1. Remove the clip (A).
2. Pull out the washer tank inlet (1) from the washer tank.
3. Remove the fender protector RH (front).
4. Remove the engine lower cover.
5. Disconnect washer pump connector.
6. Disconnect the washer level switch connector.
7. Remove front washer tube and rear washer tube.
8. Remove washer tank mounting bolts.
9. Remove washer tank from the vehicle.

INSTALLATION
Note the following, and install in the reverse order of removal.

CAUTION: Add water up to the top of the washer tank inlet after installing. Check that there is no leakage.
