Infiniti Truck
>>
2009
>>
EX35 AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
System Diagram
AUTO AMP.

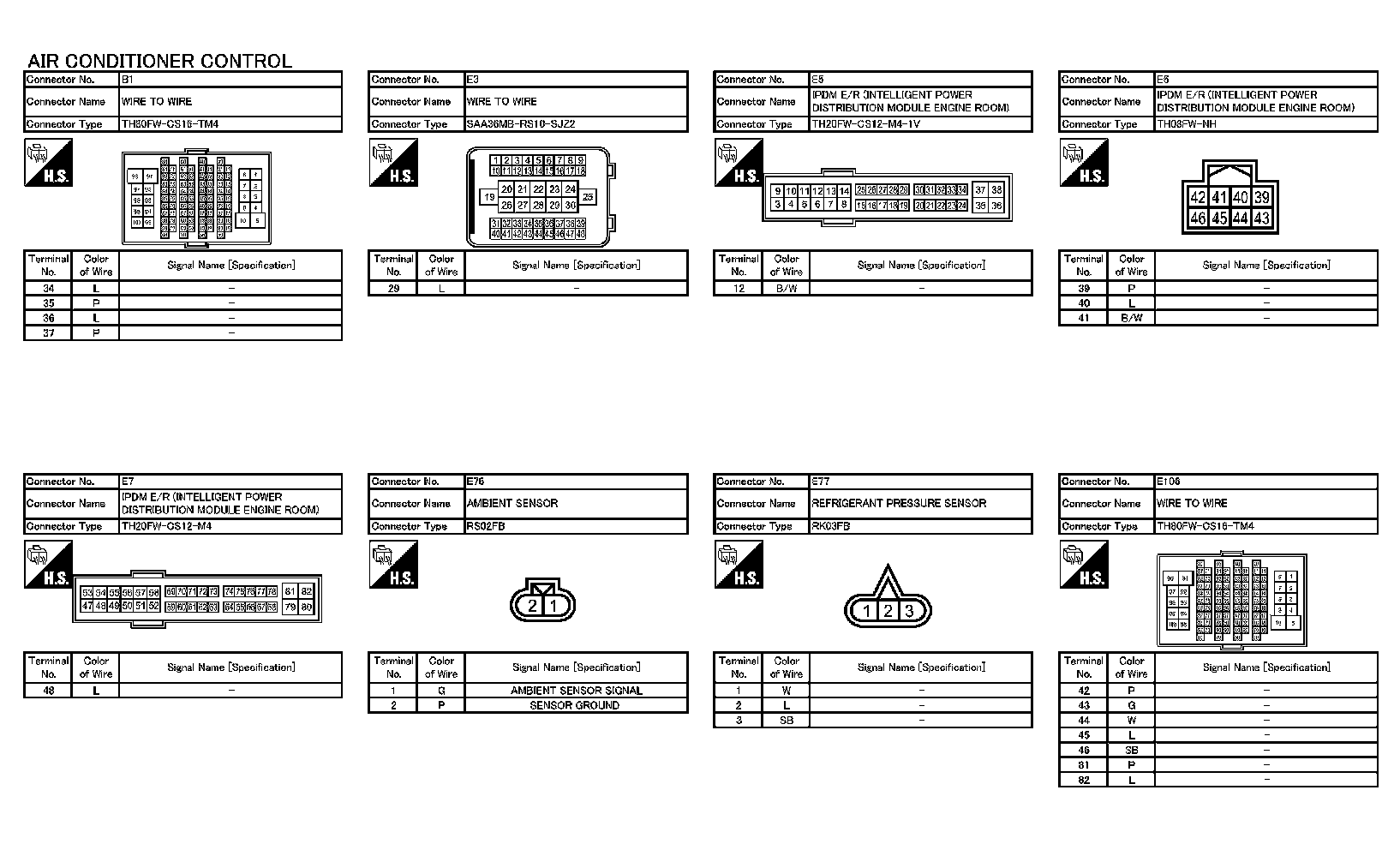

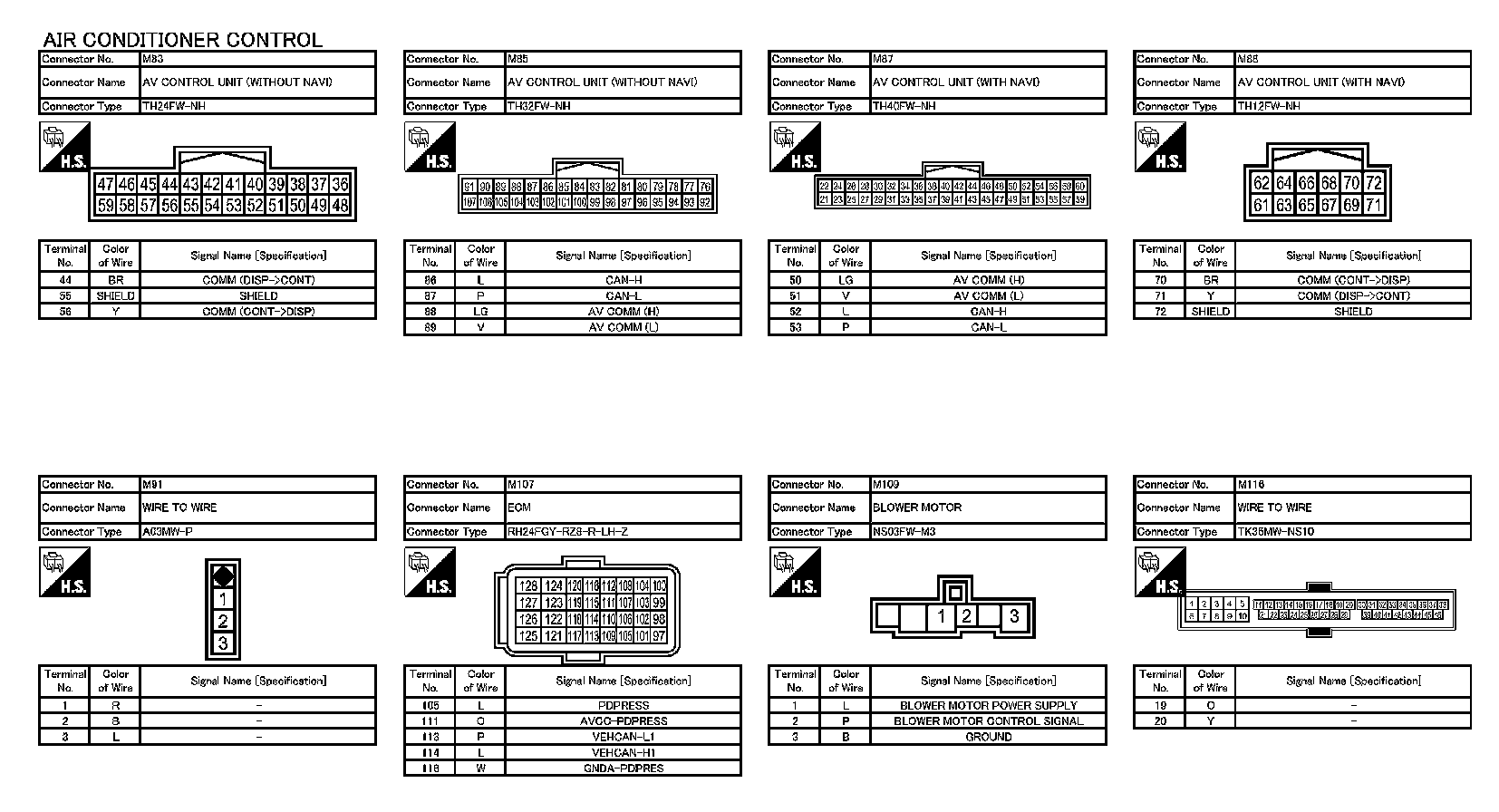

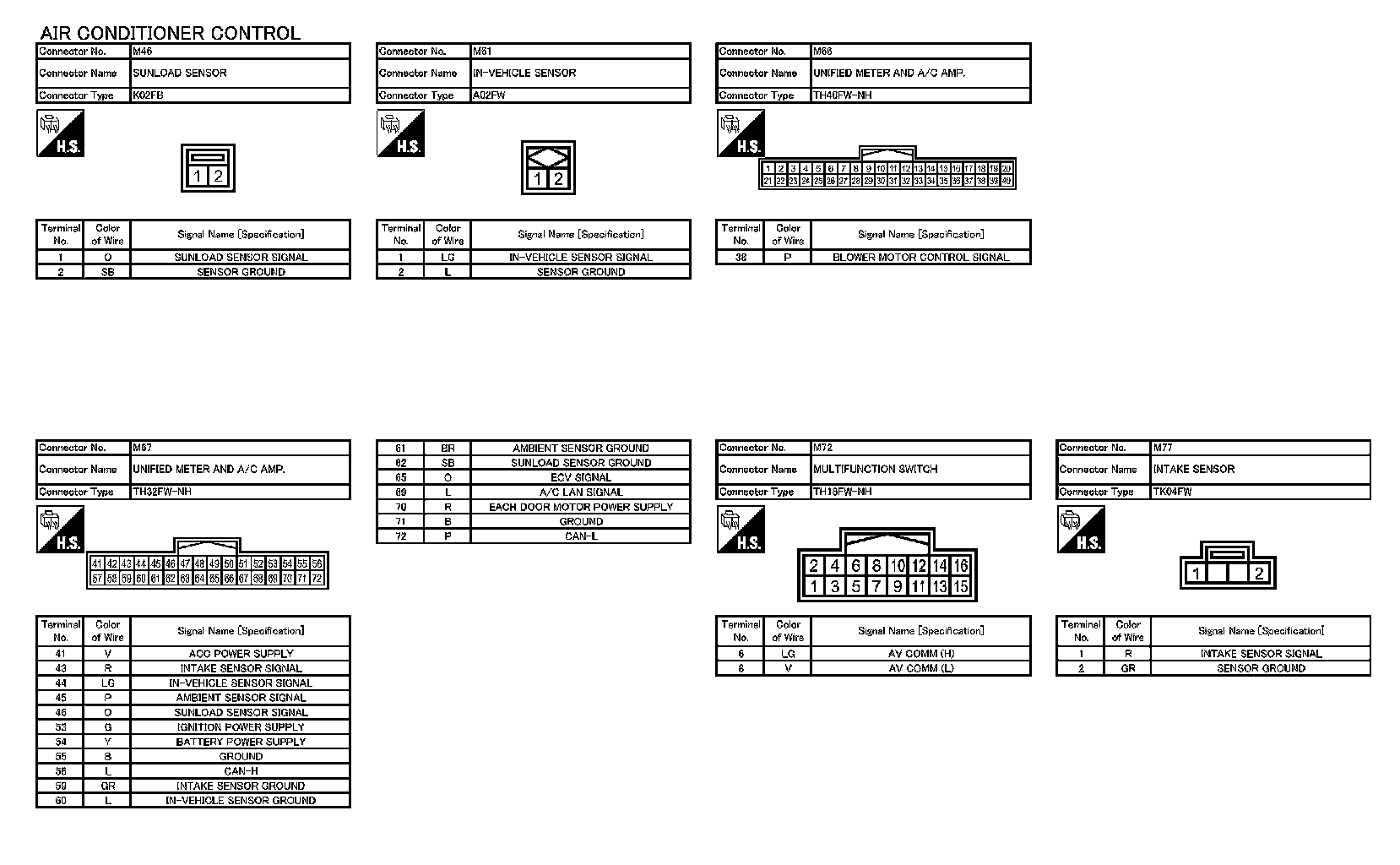

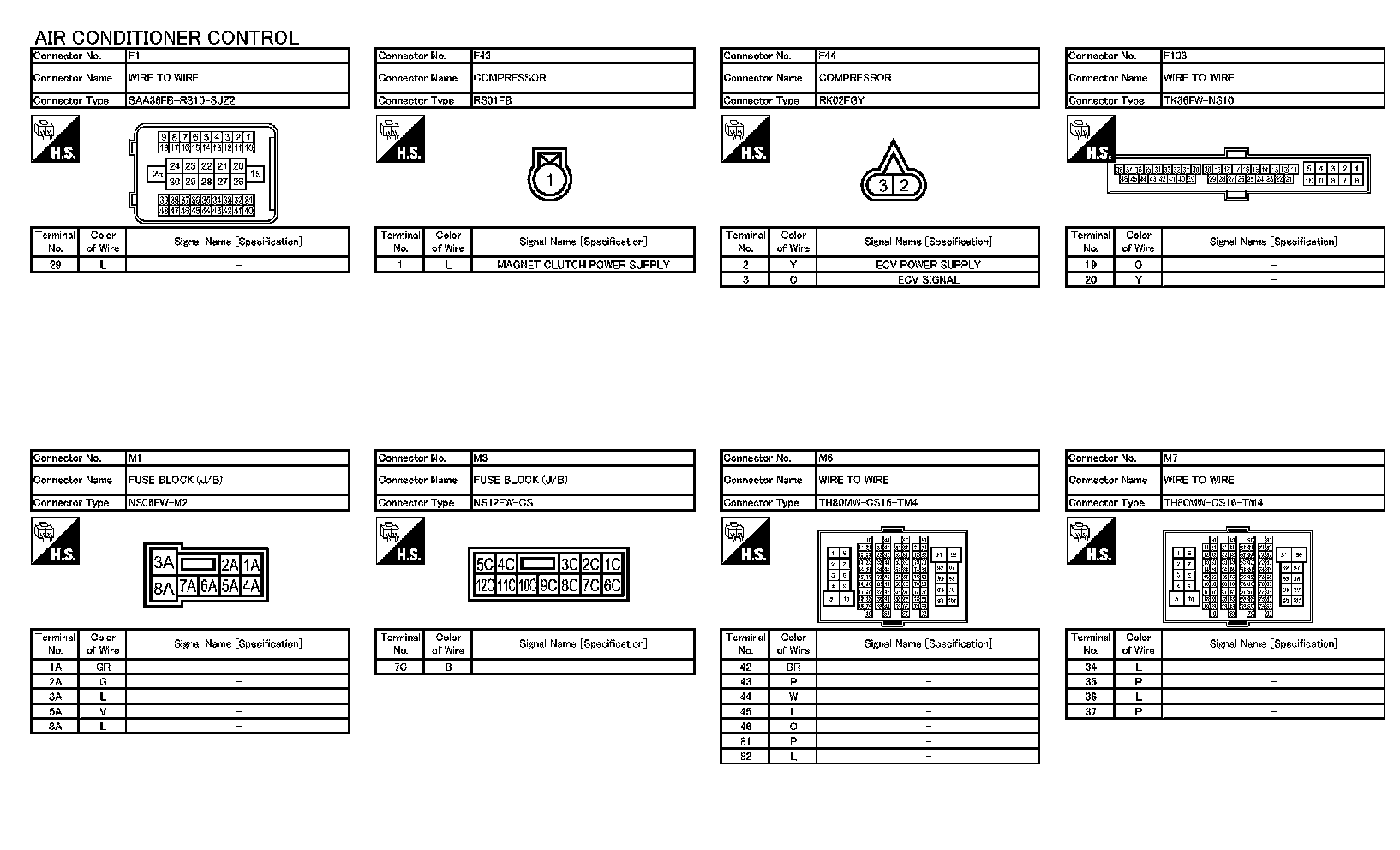

Wiring Diagram - AIR CONDITIONER CONTROL SYSTEM -
