With Left and Right Ventilation Temperature Separately Control System

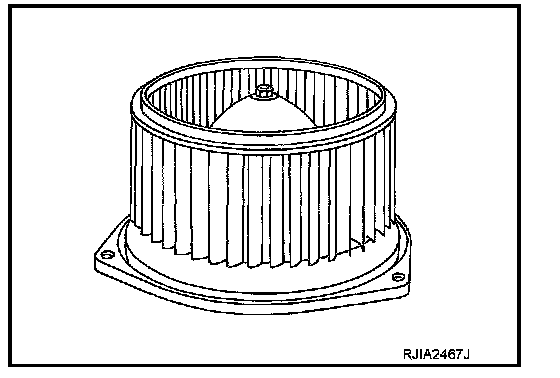

BLOWER MOTOR


WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : Description


COMPONENT DESCRIPTION

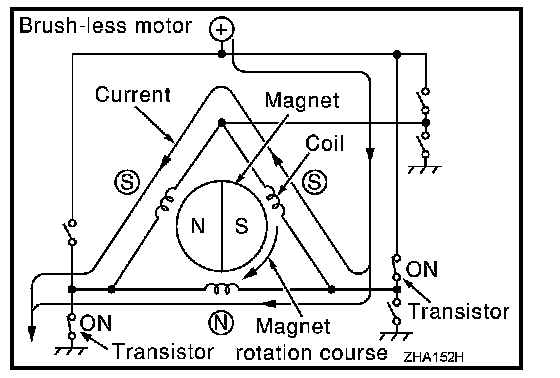

Brush-less Motor
The blower motor utilizes a brush-less motor with a rotating magnet.





Quietness is improved over previous motors where the brush was the point of contact and the coil rotated.

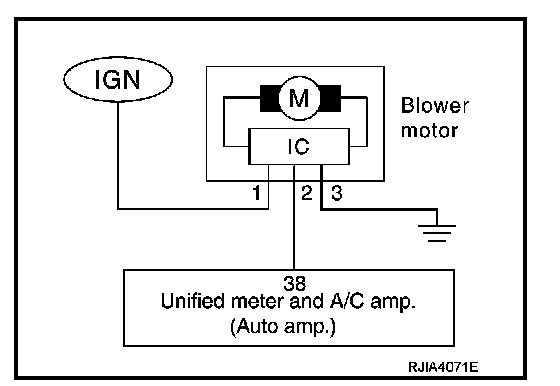

Blower motor circuit
