B2602

B2602 SHIFT POSITION





Description
BCM confirms the shift position with the following 4 signals.
- Selector lever
- P/N position switch
- P position signal from IPDM E/R (CAN)
- P position signal from TCM (CAN)




DTC Logic

DTC DETECTION LOGIC

NOTE:
- If DTC B2602 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. SEC.
- If DTC B2602 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. SEC.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine under the following conditions and wait for at least 10 seconds.
- Selector lever is in the P or N position.
- Depress the brake pedal.
2. Check "Self diagnostic result" with CONSULT-III.
Is DTC detected?
YES - Go to B2602.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK DTC WITH "ABS ACTUATOR AND ELECTRIC UNIT"
Check "Self diagnostic result" with CONSULT-III. Testing and Inspection.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace the malfunctioning parts.
2.CHECK CONTROL DEVICE POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect control device (detention switch) connector.

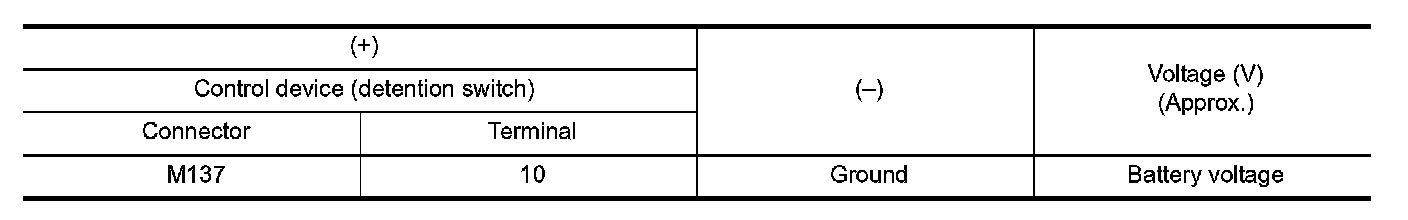

3. Check voltage between control device (detention switch) harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - GO TO 3.
3.CHECK CONTROL DEVICE POWER SUPPLY CIRCUIT
1. Disconnect BCM connector M122.
2. Check continuity between control device (detention switch) harness connector and BCM harness connector.





3. Check continuity between control device (detention switch) harness connector and ground.





Is the inspection result normal?
YES - Replace BCM. Removal and Installation.
NO - Repair or replace harness.
4.CHECK CONTROL DEVICE CIRCUIT
1. Disconnect BCM connector M122 and IPDM E/R connector E6.
2. Check continuity between control device (detention switch) harness connector and BCM harness connector.





3. Check continuity between control device (detention switch) harness connector and ground.





Is the inspection result normal?
YES - GO TO 5.
NO - Repair or replace harness.
5.CHECK CONTROL DEVICE (DETENTION SWITCH)
B2601.
Is the inspection result normal?
YES - GO TO 6.
NO - Replace control device. Removal and Installation (VQ35HR) or Removal and Installation (VK50VE).
6.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
