Center Ventilator Grille

DUCT AND GRILLE


CENTER VENTILATOR GRILLE : Removal and Installation


REMOVAL
1. Remove cluster lid D. Exploded View.

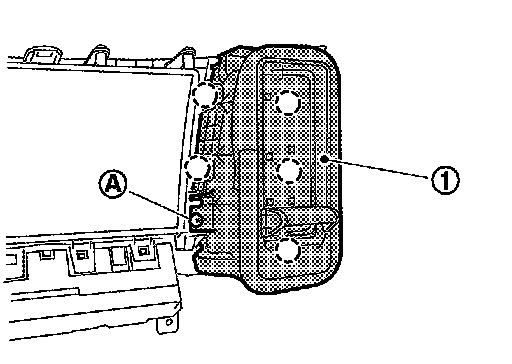

2. Remove mounting screw (A), and then remove center ventilator grilles (1) (left and right).

Circle : Pawl


INSTALLATION
Installation is basically the reverse order of removal.
