Rear Floor Duct 1

DUCT AND GRILLE


REAR FLOOR DUCT 1 REAR FLOOR DUCT 1 : Removal and Installation


REMOVAL
1. Remove instrument panel assembly. Exploded View.

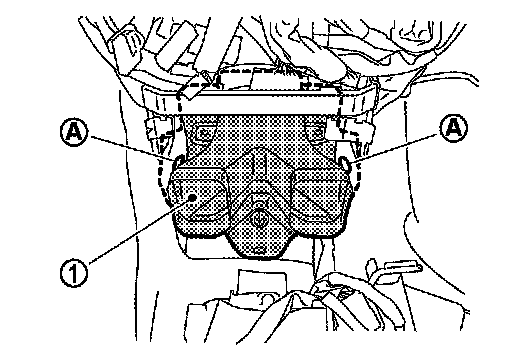

2. Remove mounting clips (A), and then remove rear floor duct 1
(1).

INSTALLATION
Installation is basically the reverse order of removal.
