Side Defroster Duct

DUCT AND GRILLE


SIDE DEFROSTER DUCT : Removal and Installation


REMOVAL
1. Remove front pillar garnishes. Exploded View.

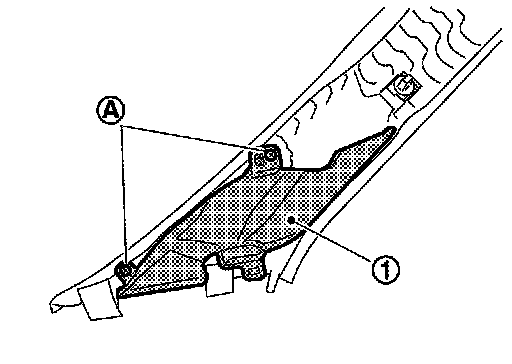

2. Remove mounting screws (A), and then remove side defroster ducts (left and right) (1).

INSTALLATION
Installation is basically the reverse order of removal.
