B26E9

B26E9 STEERING STATUS





Description
There are 2 switches in the steering lock unit (steering lock/unlock switch 1 and 2). BCM compares those 2 switches conditions to judge the present steering status.




DTC Logic

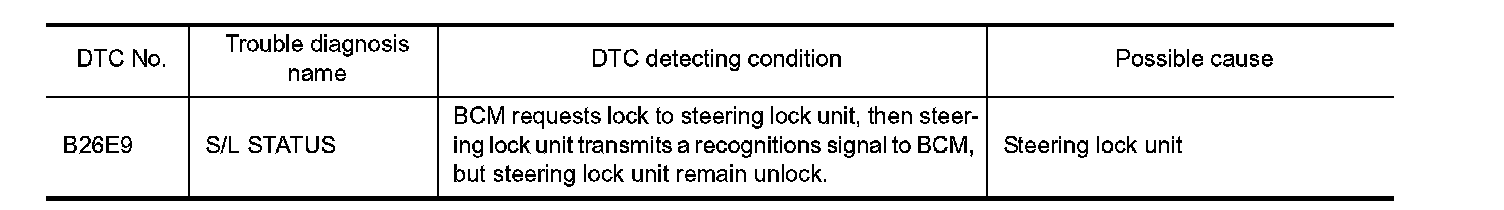

DTC DETECTION LOGIC

NOTE:
- If DTC B26E9 is displayed with DTC B2609, first perform the trouble diagnosis for DTC B2609. B2609.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Turn ignition switch OFF.
3. Press driver side door switch and wait for at least 1 second.
4. Turn ignition switch ON.
5. Check "Self diagnostic result" with CONSULT-III.
Is DTC detected?
YES - SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.INSPECTION START
1. Turn ignition switch ON.
2. Check "Self diagnostic result" with CONSULT-III.
3. Touch "ERASE".
4. Perform DTC Confirmation Procedure. B26E1.
Is the DTC B26E9 displayed again?
YES - GO TO 2.
NO - GO TO 3.
2.REPLACE STEERING LOCK UNIT
1. Replace steering lock unit.
2. Perform DTC confirmation procedure. SEE DTC Logic.
Is the DTC B26E9 displayed again?
YES - GO TO 3.
NO - INSPECTION END
3.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
