C1B52

C1B52 BSW/BSI INDICATOR OPEN CIRCUIT

DTC Logic


DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Turn the BSW system ON.
3.Perform "All DTC Reading" with CONSULT.
4.Check if the "C1B52" is detected as the current malfunction in "Self Diagnostic Result" of "SIDE RADAR
RIGHT/LEFT".
Is the "C1B52" detected as the current malfunction?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK BSW INDICATOR CIRCUIT FOR OPEN 1

1.Turn ignition switch OFF.
2.Disconnect side radar harness connector and BSW indicator harness connector.
3.Check continuity between side radar harness connector and BSW indicator harness connector.





Is the inspection result normal?
YES- GO TO 2.
NO- Repair the harnesses or connectors.

2. CHECK BSW INDICATOR CIRCUIT FOR OPEN 2

Check continuity between BSW indicator harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair the harnesses or connectors.

3. CHECK SIDE RADAR VOLTAGE OUTPUT

1.Connect side radar harness connector.

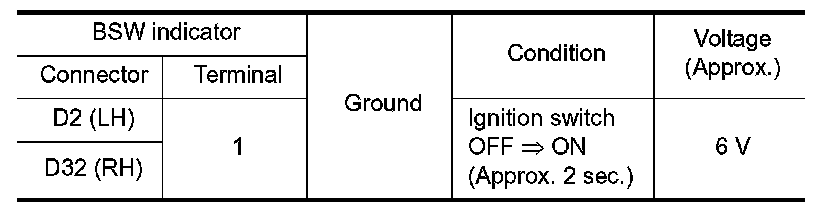

2.Check voltage between BSW indicator harness connector and ground.





Is the inspection result normal?
YES- Replace BSW indicator.
NO- Replace side radar. Side Radar.
