C1F02

C1F02 ACCELERATOR PEDAL ACTUATOR

Description

- The accelerator pedal actuator is integrated into the accelerator pedal assembly.
- The accelerator pedal actuator consists of the control unit and motor.


DTC Logic

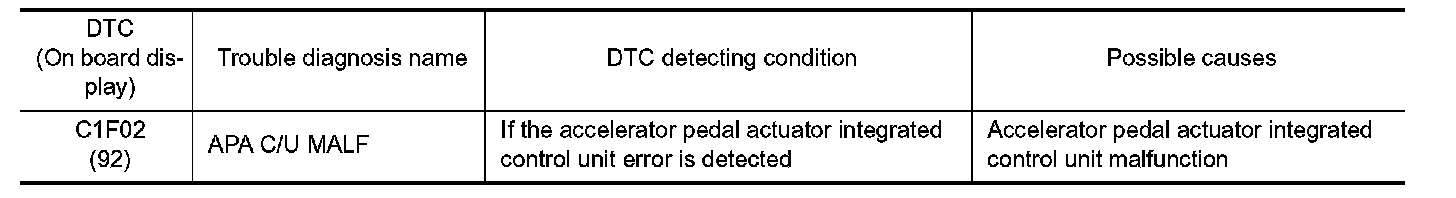

DTC DETECTION LOGIC








Diagnosis Procedure


1. PERFORM THE SELF-DIAGNOSIS

1.Start the engine.
2.Turn the DCA system ON.
3.Perform "All DTC Reading" with CONSULT.
4.Check if the DTC "C1F02" is detected as the current malfunction on the self-diagnosis results of "ICC/
ADAS" or "ACCELE PEDAL ACT".
Is "C1F02" detected as the current malfunction?
YES- Replace the accelerator pedal assembly.
NO- INSPECTION END


Special Repair Requirement


DESCRIPTION

The accelerator pedal released position learning is necessary when the following operation is performed.
- Disconnection and connection of accelerator pedal assembly connector
- Replace accelerator pedal assembly

SPECIAL REPAIR REQUIREMENT


1. ACCELERATOR PEDAL RELEASED POSITION LEARNING

Perform the accelerator pedal released position learning. Description.
- GO TO 2.

2. CHECK DCA SYSTEM

1.Erase the "self-diagnosis results", and then perform "All DTC Reading" again after performing the action test. (Description (Distance Control Assist) for action test.)
2.Check that the DCA system is normal.
- WORK END
