DTC B1211 ROLLOVER DETECTION

When detect component damage resulting from a rollover, brinks or illuminates the air bag warning lamp to inform the driver. Malfunctioning can be detected by CONSULT.

OPERATION

The front seat belt pre-tensioner and side curtain air bag are operated by the decision of the air bag diagnosis sensor unit signal of the rollover.

STRUCTURE

It consists of front seat belt pre-tensioner, side curtain air bag and air bag diagnosis sensor unit.

INSTALLATION

Exploded View (Seat belt pre-tensioner), {LINK_TO_MANY:0000000007516844}{LINK_TO_MANY:0000000007516845}, "Exploded
View" (Side curtain air bag) and Exploded View (Air bag diagnosis sensor unit).


DTC Logic

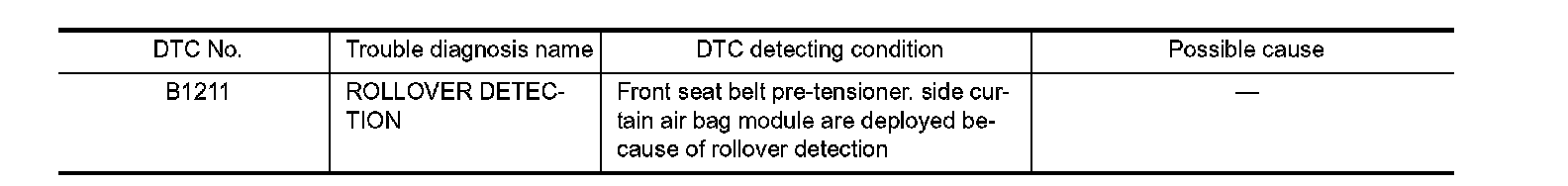

DTC DETECTION LOGIC

With CONSULT
DTC No. Index ("SELF-DIAG [CURRENT]"), ("SELF-DIAG [PAST]" or "TROUBLE DIAG RECORD")






DTC CONFIRMATION PROCEDURE


1. CHECK SELF-DIAG RESULT

With CONSULT
1.Turn ignition switch ON.
2.Perform "AIR BAG" Self Diagnostic Result.
Without CONSULT
1.Turn ignition switch ON.
2.Check the air bag warning lamp status. Air Bag Warning Lamp Diagnosis.
NOTE:
SRS does not enter diagnosis mode if no malfunction is detected in user mode.
Is malfunctioning part detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


WARNING:
- Before servicing, turn ignition switch OFF, disconnect battery negative terminal, and wait at least 3
minutes or more. (To discharge backup capacitor.)
- Never use unspecified tester or other measuring device.

1. PERFORM COLLISION DIAGNOSIS

Perform collision diagnosis.When SRS Is Activated In A Collision or When SRS Is Not Activated In A Collision.
Is collision diagnosis complete?
YES- GO TO 2.
NO- INSPECTION END

2. FINAL INSPECTION

Perform "AIR BAG" Self Diagnostic Result.
Is the inspection result normal?
YES- INSPECTION END
NO- Perform diagnosis of applicable DTC.A L L Diagnostic Trouble Codes ( DTC ).
