B2602

B2602 SHIFT POSITION

Description

BCM confirms the shift position with the following 4 signals.
- Selector lever
- P/N position switch
- P position signal from IPDM E/R (CAN)
- P position signal from TCM (CAN)


DTC Logic

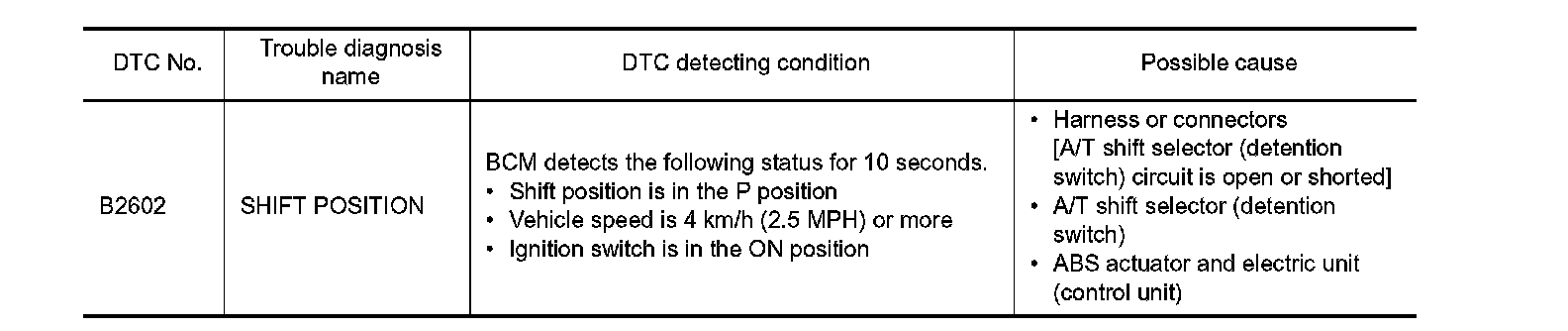

DTC DETECTION LOGIC

NOTE:
- If DTC B2602 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
Security System.
- If DTC B2602 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
Security System.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine under the following conditions and wait for at least 10 seconds.
-Selector lever is in the P or N position.
-Depress the brake pedal.
2.Check "Self diagnostic result" with CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK DTC WITH "ABS ACTUATOR AND ELECTRIC UNIT"

Check "Self diagnostic result" with CONSULT. A L L Diagnostic Trouble Codes ( DTC ).
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace the malfunctioning parts.

2. CHECK A/T SHIFT SELECTOR (DETENTION SWITCH) POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect A/T shift selector (detention switch) connector.

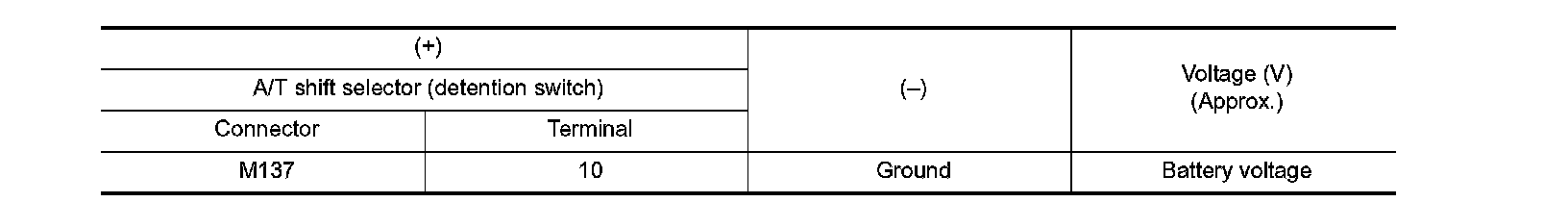

3.Check voltage between A/T shift selector (detention switch) harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- GO TO 3.

3. CHECK A/T SHIFT SELECTOR (DETENTION SWITCH) POWER SUPPLY CIRCUIT

1.Disconnect BCM connector M122.
2.Check continuity between A/T shift selector (detention switch) harness connector and BCM harness connector.

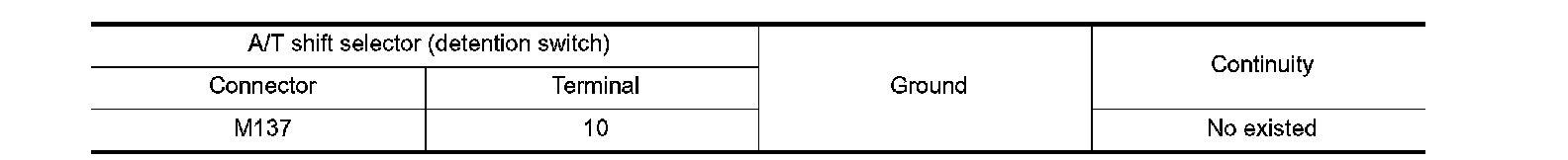

3.Check continuity between A/T shift selector (detention switch) harness connector and ground.





Is the inspection result normal?
YES- Replace BCM. Removal And Installation.
NO- Repair or replace harness.

4. CHECK A/T SHIFT SELECTOR (DETENTION SWITCH) CIRCUIT

1.Disconnect BCM connector M122 and IPDM E/R connector E6.
2.Check continuity between A/T shift selector (detention switch) harness connector and BCM harness connector.

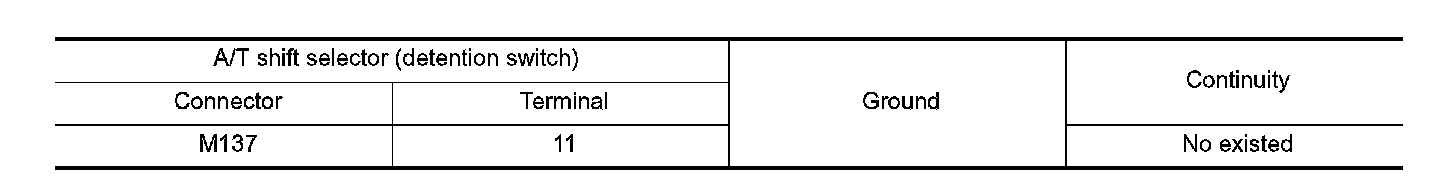

3.Check continuity between A/T shift selector (detention switch) harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace harness.

5. CHECK A/T SHIFT SELECTOR (DETENTION SWITCH)

B2601.
Is the inspection result normal?
YES- GO TO 6.
NO- Replace A/T shift selector. Removal And Installation (VQ-35HR) or Removal And Installation (VK-50VE).

6. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
