C1185

C1185 ICC UNIT

Description

The ABS actuator and electric unit (control unit) and the ICC sensor integrated unit exchange signals via the
CAN communication line.


DTC Logic

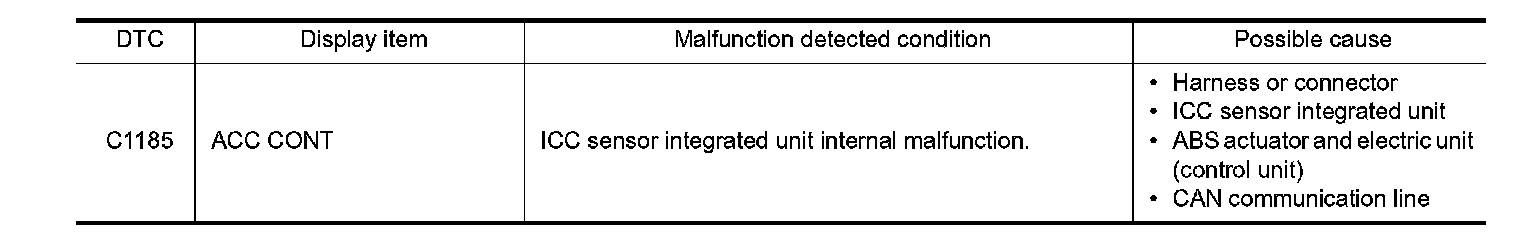

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn the ignition switch OFF
and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. DTC REPRODUCTION PROCEDURE

1.Turn the ignition switch OFF to ON.
2.Perform self-diagnosis for "ABS" with CONSULT.
Is DTC "C1185" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM SELF-DIAGNOSIS (1)

Perform self-diagnosis for "ICC/ADAS" with CONSULT.
Is any DTC detected?
YES- Check the DTC.
NO- GO TO 2.

2. PERFORM SELF-DIAGNOSIS (2)

Perform self-diagnosis for "ABS" with CONSULT.
Is DTC "C1185" detected?
YES- Replace ABS actuator and electric unit (control unit). Exploded View.
NO- INSPECTION END


Special Repair Requirement


1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit) or steering angle sensor and removing steering angle sensor. Description.
- END
