C119A

C119A VACUUM SENSOR

Description

The vacuum sensor converts the vacuum pressure to an electric signal and transmits it to the ABS actuator and electric unit (control unit).


DTC Logic


DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn the ignition switch OFF
and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. DTC REPRODUCTION PROCEDURE

1.Turn the ignition switch OFF to ON.
2.Perform self-diagnosis for "ABS" with CONSULT.
Is DTC "C119A" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK CONNECTOR

1.Turn the ignition switch OFF.
2.Disconnect ABS actuator and electric unit (control unit) harness connector.
3.Disconnect vacuum sensor harness connector.
4.Check the terminal for deformation, disconnection, looseness, etc.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace error-detected parts.

2. CHECK VACUUM SENSOR POWER SUPPLY CIRCUIT

1.Connect ABS actuator and electric unit (control unit) connector.

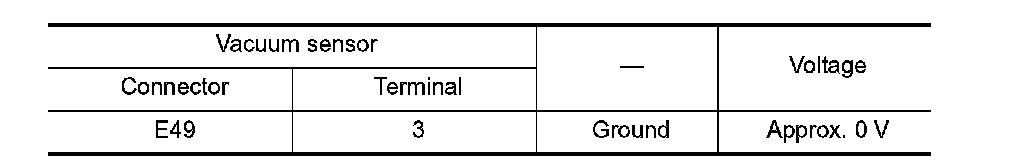

2.Check the voltage between vacuum sensor harness connector and ground.





3.Turn the ignition switch ON.

CAUTION:
Never start the engine.

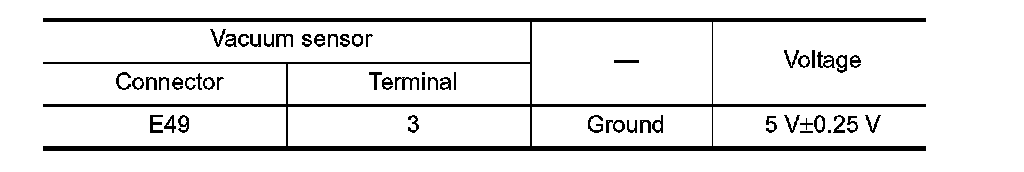

4.Check the voltage between vacuum sensor harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace error-detected parts.

3. CHECK VACUUM SENSOR CIRCUIT

1.Disconnect ABS actuator and electric unit (control unit) harness connector.
2.Check the continuity between vacuum sensor harness connector and ABS actuator and electric unit (control unit) harness connector.





Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). Exploded View.
NO- Repair or replace error-detected parts.


Special Repair Requirement


1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit) or steering angle sensor and removing steering angle sensor. Description.
- END
