C1D0C

Description

Detects the vertical G applied at vehicle front, and outputs it to E-SUS control unit in analog voltage.


DTC Logic

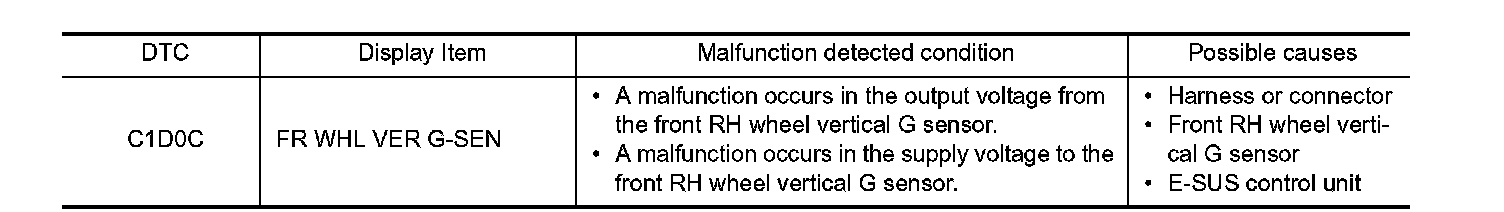

DTC DETECTION LOGIC







DTC REPRODUCTION PROCEDURE


1. DTC REPRODUCTION PROCEDURE

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform "E-SUS" self-diagnosis.
Is DTC "C1D0C" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK FRONT RH WHEEL VERTICAL G SENSOR

Check front RH wheel vertical G sensor for damage, disconnection or looseness.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace front RH wheel vertical sensor. Then perform the self-diagnosis.

2. CHECK FRONT RH WHEEL VERTICAL G SENSOR HARNESS

1.Disconnect the E-SUS control unit harness connector and front RH wheel vertical G sensor harness connector.

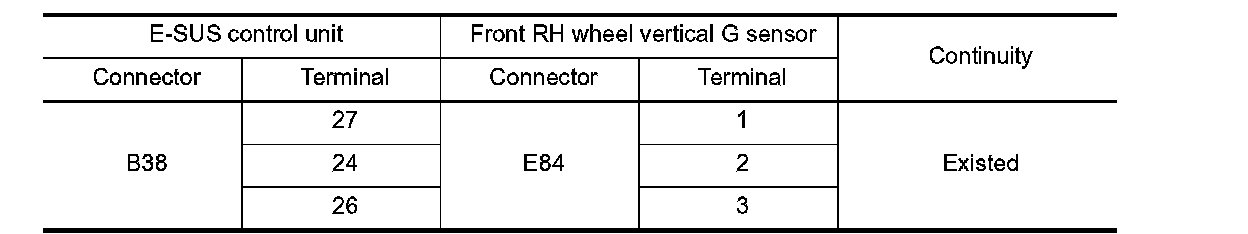

2.Check the continuity between the E-SUS control unit harness connector and front RH wheel vertical G
sensor harness connector.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace the malfunctioning harness or connector.

3. CHECK FRONT RH WHEEL VERTICAL G SENSOR POWER SUPPLY CIRCUIT

1.Connect the E-SUS control unit harness connector.
2.Turn the ignition switch ON.

CAUTION:
Never start the engine.

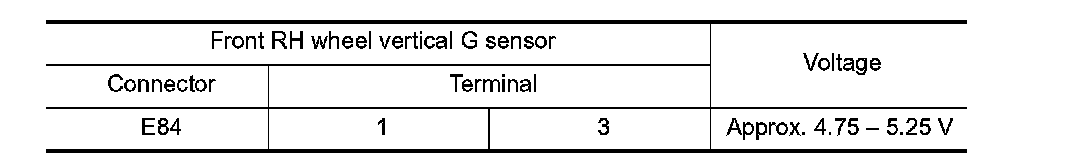

3.Check the voltage between front RH wheel vertical G sensor harness connector.





Is the inspection result normal?
YES- GO TO 4.
NO- Replace E-SUS control unit. Exploded View.

4. PERFORM DATA MONITOR

With CONSULT
1.Connect the front RH wheel vertical G sensor harness connector.
2.Start the engine.
3.Select "DATA MONITOR" of "E-SUS".

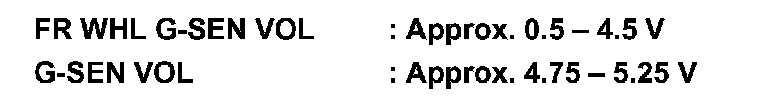

4.Select "FR WHL G-SEN VOL" and "G-SEN VOL" of "DATA MONITOR".
5.Drive the vehicle and check whether it is within the following range.





Is the inspection result normal?
YES- Check pin terminal and connection of each harness connector for damage or loose connections.
NO- Replace front RH wheel vertical G sensor. Exploded View.
