C1D16

Description

- Controls the shock absorber actuators on 4 wheels according to the signals from each sensors.
- Stops the control signal to the shock absorber, when detecting any malfunction in the electrical system. The damping force is maintained at approximately the intermediate level between the maximum and the minimum values.


DTC Logic

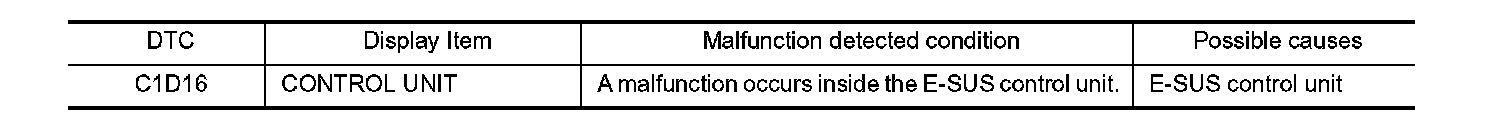

DTC DETECTION LOGIC







DTC REPRODUCTION PROCEDURE


1. DTC REPRODUCTION PROCEDURE

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform "E-SUS" self-diagnosis.
Is DTC "C1D16" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM SELF-DIAGNOSIS

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform "E-SUS" self-diagnosis and check whether DTC "C1D16" is detected.

CAUTION:
Even when a record exists in the diagnosis history, replace E-SUS control unit.
Is DTC "C1D16" detected?
YES- Replace E-SUS control unit. Exploded View.
NO- Check pin terminal and connection of each harness connector for damage or loose connections.
Repair or replace error-detected parts.
