Rear Final Drive R230
Rear Final Drive R230
REAR FINAL DRIVE ASSEMBLY
System Diagram

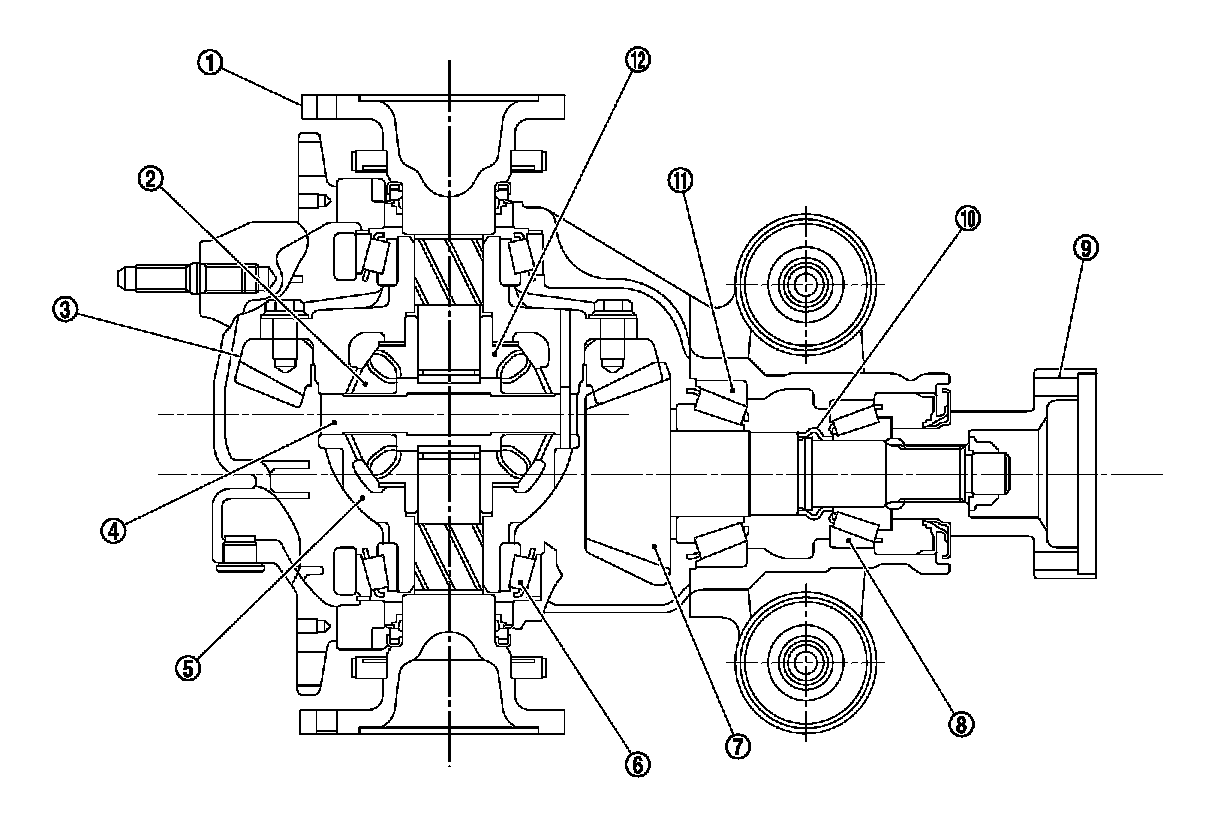

CROSS-SECTIONAL VIEW
