Pinout Values and Diagnostic Parameters




AWD CONTROL UNIT

Reference Value

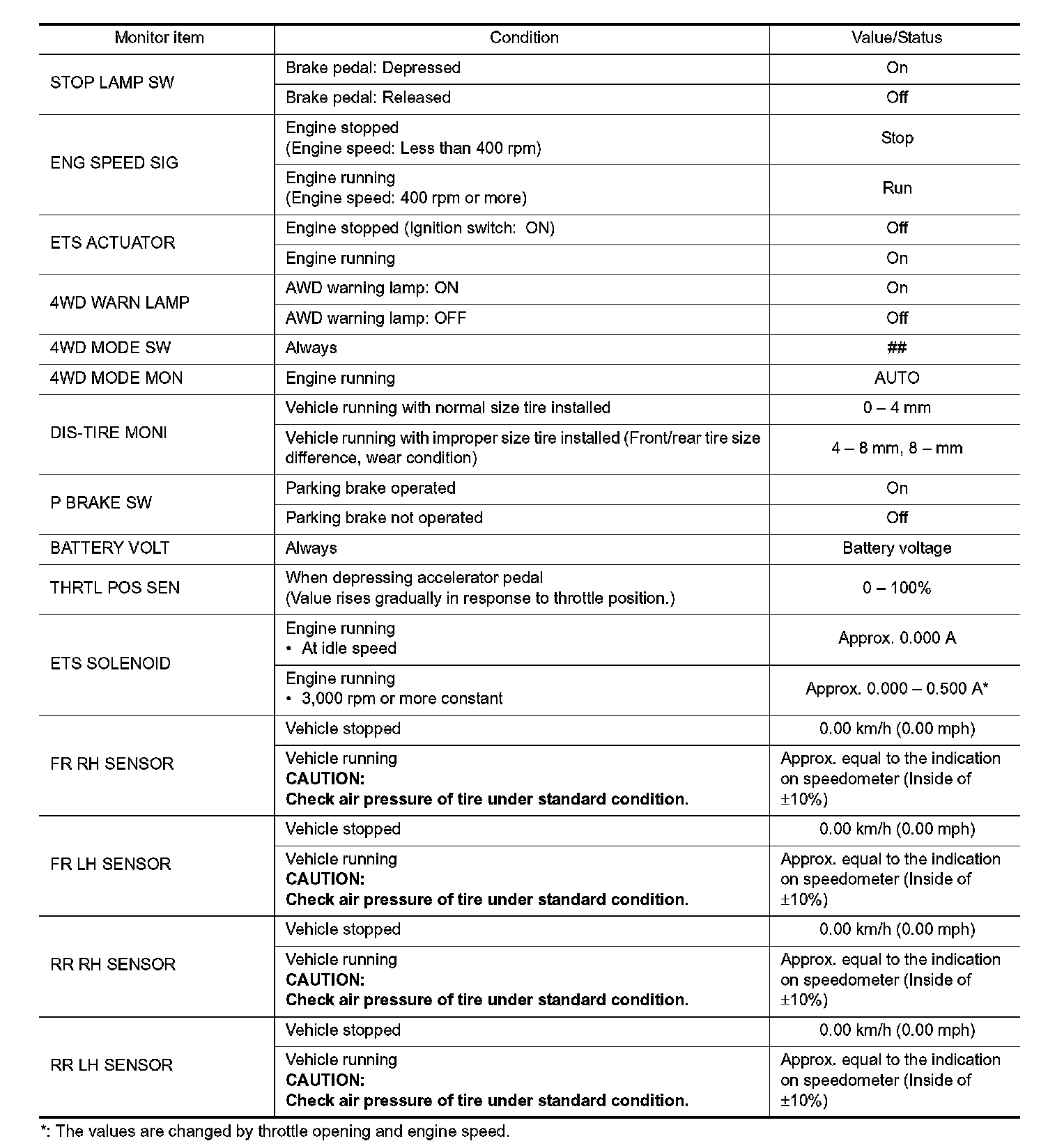

VALUES ON THE DIAGNOSIS TOOL

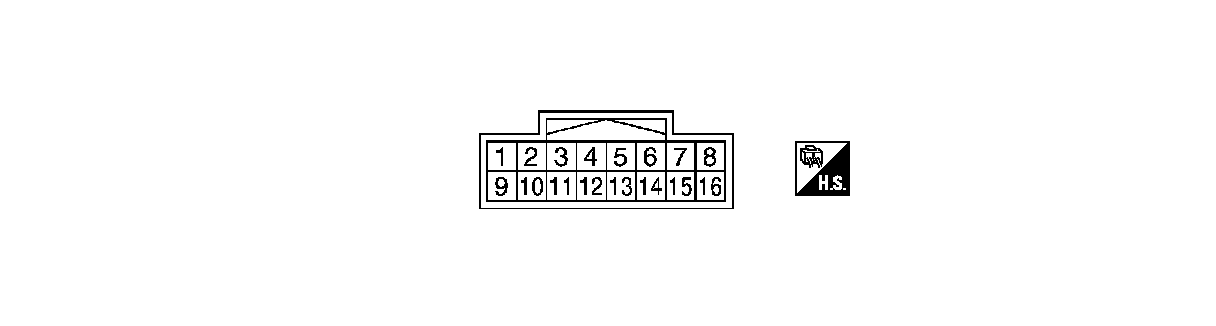

TERMINAL LAYOUT







PHYSICAL VALUES
