B2516

B2516 SHIFT SIGNAL [P, R]

Description

AFS control unit receives the shift position signal from TCM with CAN communication.


DTC Logic

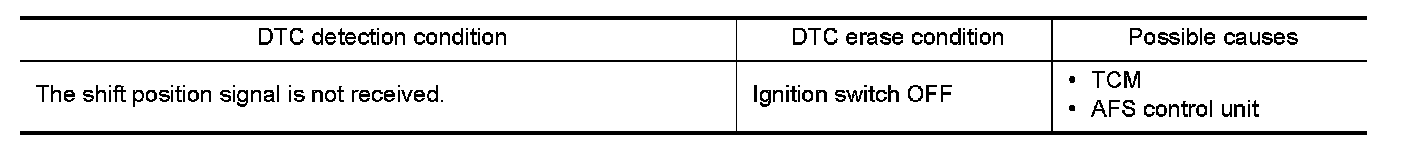

DTC DETECTION LOGIC

[B2516] Shift signal [P, R]






DTC CONFIRMATION PROCEDURE


1. DTC ERASE

Erase the DTC memory of AFS with CONSULT.
- GO TO 2.

2. DTC CONFIRMATION

1.Turn ignition ON.
2.Select the self-diagnosis with CONSULT.
3.Check the self-diagnosis result. Refer to "DTC Index" Testing and Inspection.
Is "B2516" detected?
YES- Refer to "Diagnosis Procedure" .
NO- Refer to "Intermittent Incident" Intermittent Incident.


Diagnosis Procedure


1. TCM SELF-DIAGNOSIS

Check the self-diagnosis result with CONSULT. Check that TCM does not detect any DTCs.
Is any DTC detected?
YES- Check TCM. Refer to "DTC Index" Testing and Inspection.
NO- GO TO 2.

2. DTC ERASE

Erase the DTC memory of AFS with CONSULT.
Is the memory erased?
YES- Inspection end.
NO- Replace AFS control unit.
