C1B01

C1B01 CAM AIMING INCMP

DTC Logic

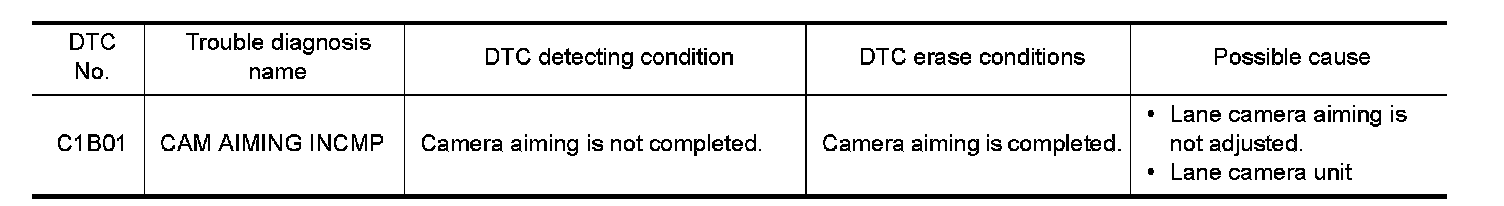

DTC DETECTION LOGIC








Diagnosis Procedure


1. CAMERA AIMING

Perform the camera aiming. Refer to "CAMERA AIMING ADJUSTMENT : Description" Description.
- GO TO 2.

2. PERFORM SELF-DIAGNOSIS OF LANE CAMERA UNIT

Perform the self-diagnosis of lane camera unit with CONSULT.
Is the DTC "C1B01" detected?
YES- Replace the lane camera unit.
NO- INSPECTION END
