C1F05

C1F05 ACCELERATOR PEDAL ACTUATOR POWER SUPPLY CIRCUIT

Description

Power is supplied from ignition power supply and battery power supply to the accelerator pedal actuator.


DTC Logic

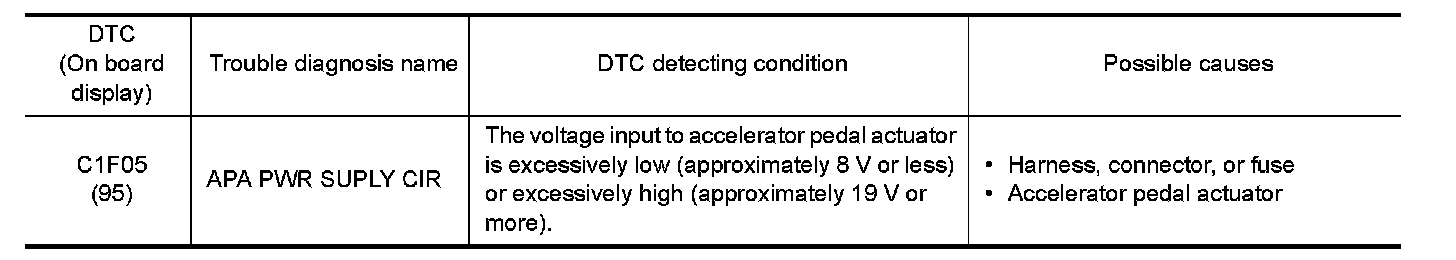

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Turn the DCA system ON.
3.Perform "All DTC Reading" with CONSULT.
4.Check if the "C1F05" is detected as the current malfunction on the self-diagnosis results of "ICC/ADAS" or
"ACCELE PEDAL ACT".
Is "C1F05" detected as the current malfunction?
YES- Refer to "Diagnosis Procedure" .
NO- Refer to "Intermittent Incident" Intermittent Incident.


Diagnosis Procedure


1. CHECK POWER SUPPLY CIRCUIT

Check the accelerator pedal actuator power supply circuit. Refer to "ACCELERATOR PEDAL ACTUATOR : Diagnosis Procedure" Accelerator Pedal Actuator.
Is the inspection result normal?
YES- Replace the accelerator pedal assembly.
NO- Repair or replace the malfunctioning parts.


Special Repair Requirement


DESCRIPTION

The accelerator pedal released position learning is necessary when the following operation is performed.
- Disconnection and connection of accelerator pedal assembly connector
- Replace accelerator pedal assembly

SPECIAL REPAIR REQUIREMENT


1. ACCELERATOR PEDAL RELEASED POSITION LEARNING

Perform the accelerator pedal released position learning. Refer to "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Description" Description.
- GO TO 2.

2. CHECK DCA SYSTEM

1.Erase the "self-diagnosis results", and then perform "All DTC Reading" again after performing the action test. (Refer to "ACTION TEST : Description" Description(Distance Control Assist) for action test.)
2.Check that the DCA system is normal.
- WORK END
