Housing Assembly HVAC: Service and Repair




HEATER & COOLING UNIT ASSEMBLY

HEATER & COOLING UNIT ASSEMBLY : Removal and Installation


REMOVAL

1.Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2.Drain engine coolant from cooling system. Refer to "Draining" Draining Engine Coolant.
3.Remove cowl top cover. Refer to "Exploded View" Exploded View.
4.Remove engine cover. Refer to "Exploded View" Exploded View.





5.Disconnect one-touch joint between low-pressure pipe 1 (1) and low-pressure pipe 2 (2) with disconnector (SST: J-45815) (A).

CAUTION:
Cap or wrap the joint of the A/C piping with suitable material such as vinyl tape to avoid the entry of air.

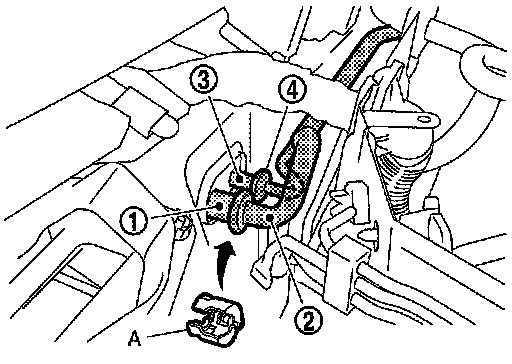

6.Disconnect one-touch joint between high-pressure pipe 1 (4)
and high-pressure pipe 2 (3) with disconnector (SST: J-45815).

CAUTION:
Cap or wrap the joint of the A/C piping with suitable material such as vinyl tape to avoid the entry of air.
7.Remove fixing clamps (A), and then disconnect heater hoses (1).





8.Remove instrument panel assembly. Refer to "Exploded View" Exploded View.
9.Remove defroster nozzle. Refer to "Exploded View" Exploded View.
10.Remove adaptor duct. Refer to "Exploded View" Exploded View.
11.Remove blower unit. Refer to "Exploded View" Exploded View.

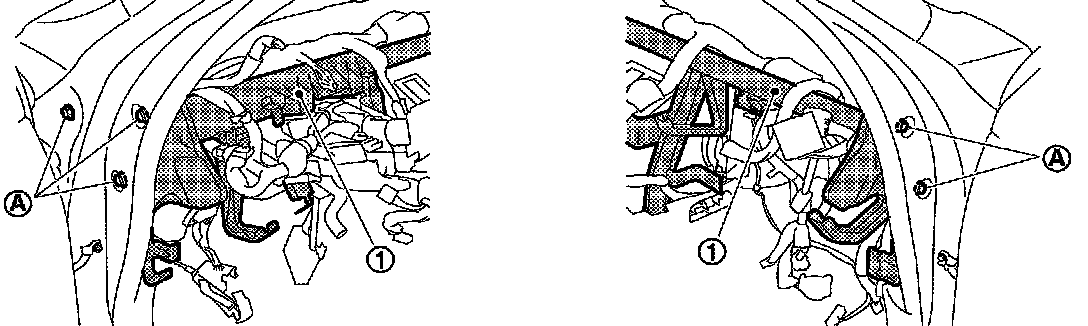

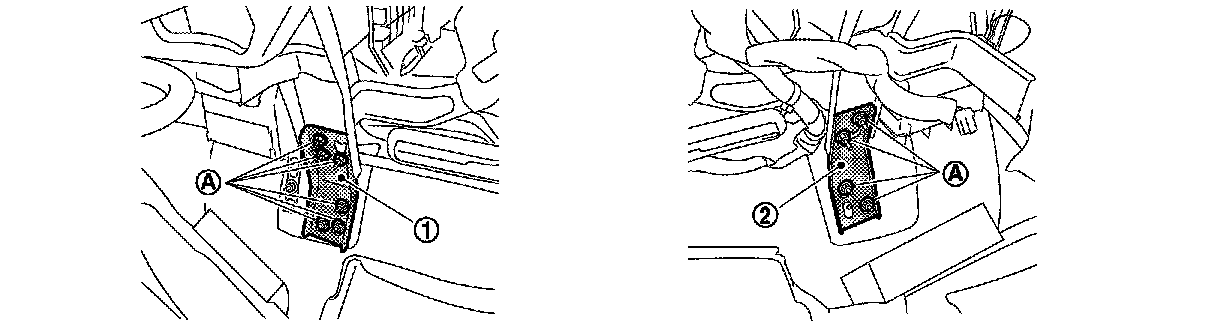

12.Remove mounting nuts (A), and then remove instrument stay LH (1) and instrument stay RH (2).





13.Disconnect drain hose.

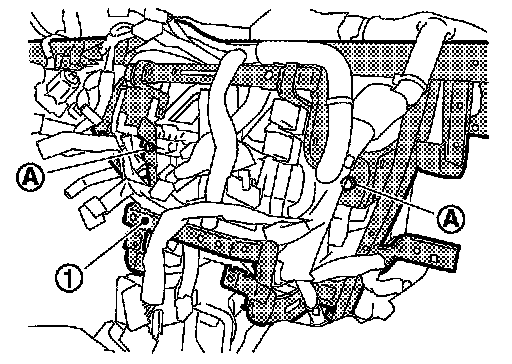

14.Remove mounting bolts (A) from steering member (1).
15.Remove mounting bolts (A) from steering member (1).

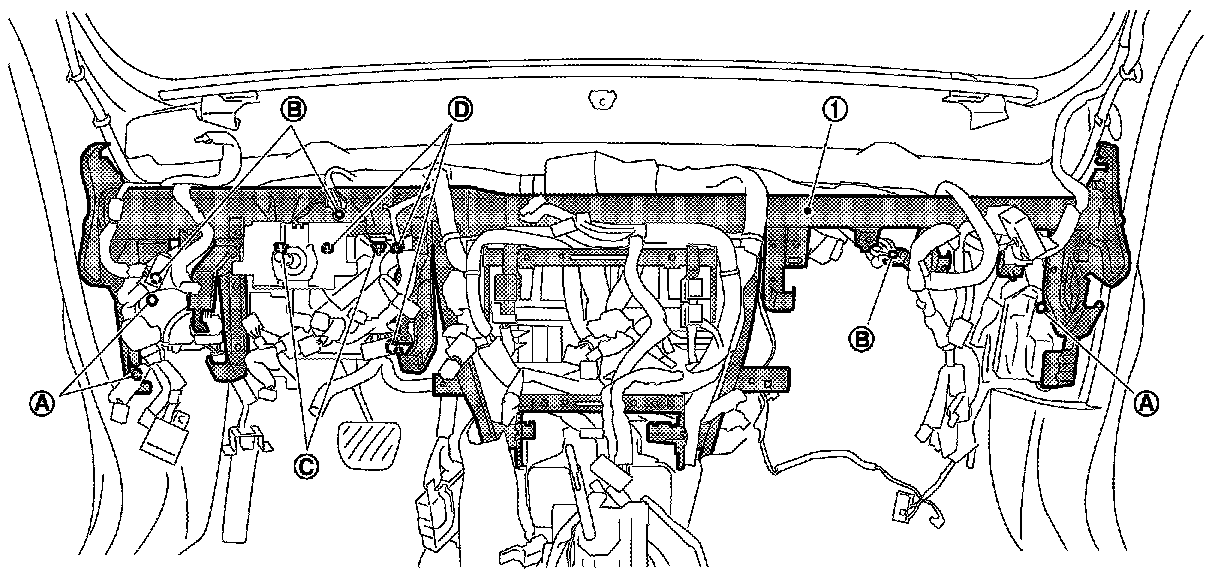

16.Remove ground bolts (B) from steering member.
17.Remove steering column mounting nuts (C) and bolts (D). Refer to "WITHOUT ELECTRIC MOTOR : Exploded View" Exploded View (Without electric motor) or "WITH ELECTRIC MOTOR : Exploded View" Exploded View
(With electric motor).





18.Remove harness connector and clips of vehicle harness from steering member.
19.Remove mounting bolts (A) from steering member (1).





20.Remove steering member, and then remove heater & cooling unit assembly from the vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:
- Replace O-rings with new ones. Then apply compressor oil to them when installing.
- Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping straight in axial direction.
- Insert piping securely until a clicks is heard.
- After piping connection is completed, pull male-side piping by hand to make sure that connection does not come loose.
- Check for leakages when recharging refrigerant.
NOTE:
- Refer to "Refilling" Refilling Engine Coolant when filling radiator with engine coolant.
- Recharge the refrigerant.
