Pinout Values and Diagnostic Parameters

BLUETOOTH� CONTROL UNIT

Reference Value

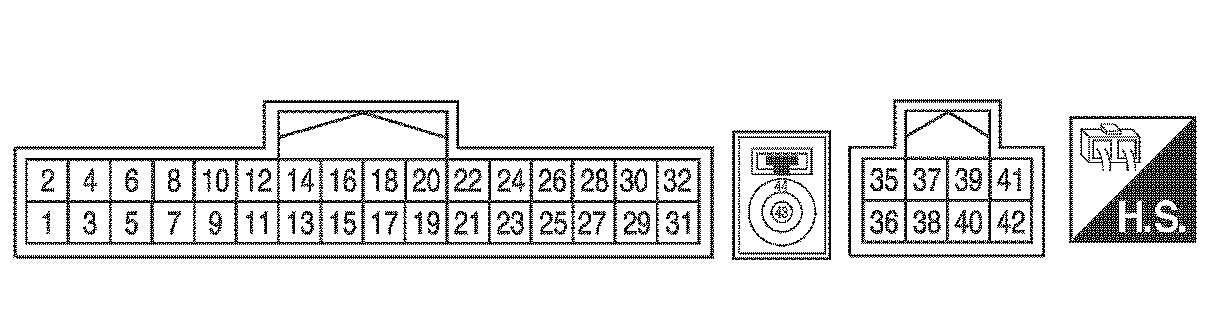

TERMINAL LAYOUT

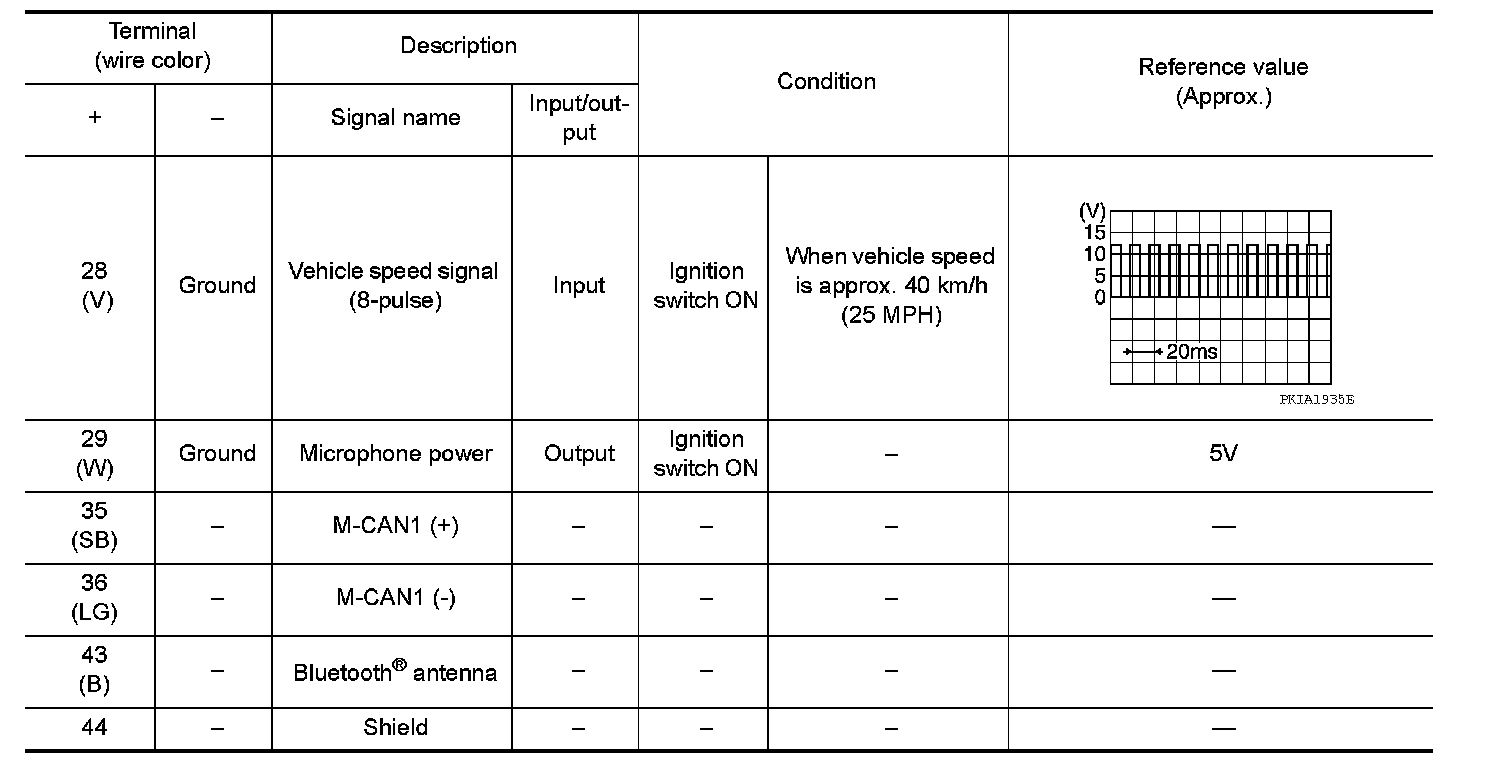

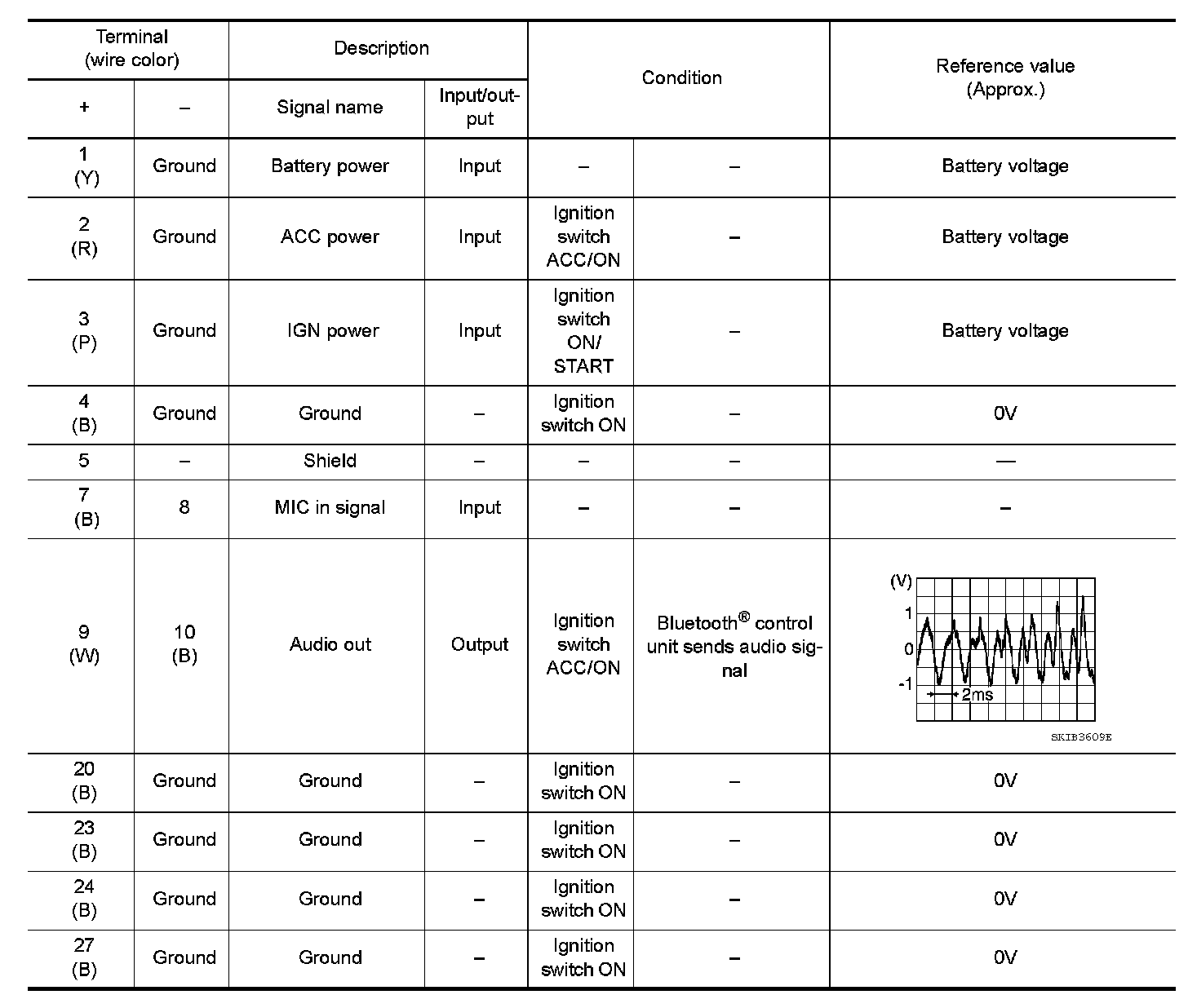

PHYSICAL VALUES






Revision: March 20122013 Infiniti JX





Revision: March 20122013 Infiniti JX
